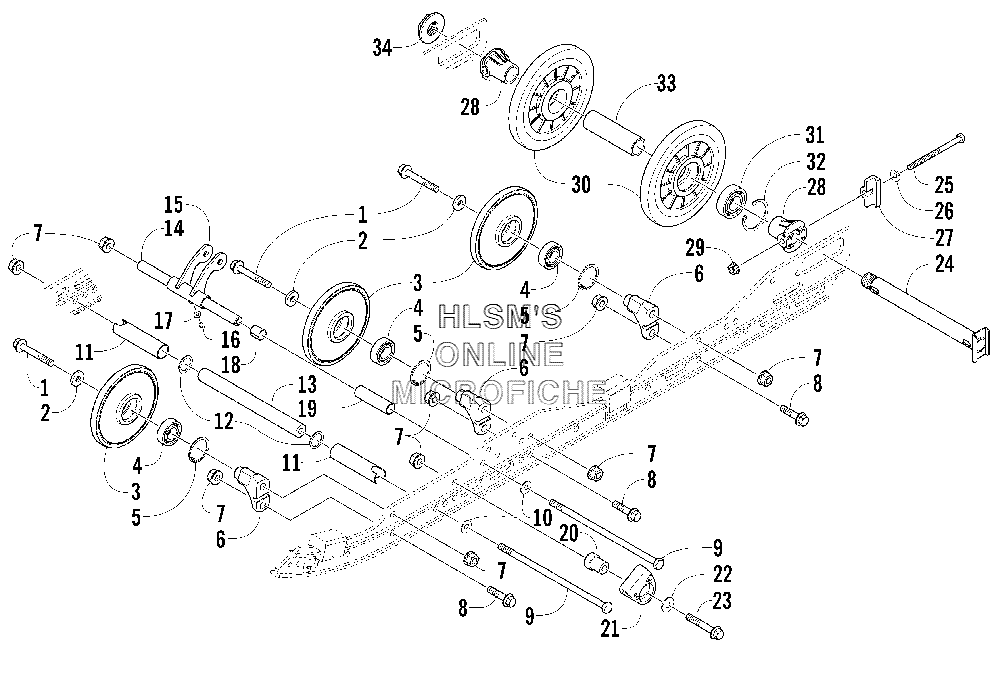

IDLER WHEEL ASSY. для Arctic Cat Sabercat 600 EFI LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
18002-232 SCREW, CAPSCREW, CAP
-
20623-664 WASHERWASHER
-
31604-837 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
41604-847 BEARING, WHEELBEARING, WHEEL
-
50623-946 RING, RETAININGRING, RETAINING
-
62604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
78048-486 NUT, LOCKNUT, LOCK
-
88020-224 SCREW, CAPSCREW, CAP
-
91623-037 SCREW, CAPSCREW, CAP
-
108050-272 WASHERWASHER
-
111604-793 SPACERSPACER
-
120623-912 WASHERWASHER
-
131604-792 AXLE, STEELAXLE, STEEL
-
141604-209 AXLE, STEELAXLE, STEEL
-
150704-994 PIVOT, SHOCK (INC. 16, 18)PIVOT, SHOCK (INC. 16, 18)
-
161623-010 FITTING, GREASEFITTING, GREASE
-
171623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
180603-083 BEARINGBEARING
-
192604-109 SPACERSPACER
-
202604-378 BLOCK, SLIDEBLOCK, SLIDE
-
212604-515 SLIDE, SPRINGSLIDE, SPRING
-
228050-282 WASHERWASHER
-
238020-229 SCREW, CAPSCREW, CAP
-
240704-884 AXLE (REAR)AXLE (REAR)
-
251623-034 SCREW, CAPSCREW, CAP
-
260623-987 WASHERWASHER
-
272604-116 ADJUSTER, TRACKADJUSTER, TRACK
-
282604-642 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
298048-426 NUT, LOCKNUT, LOCK
-
302604-117 WHEEL, IDLER (INC. 31, 32)WHEEL, IDLER (INC. 31, 32)
-
310107-598 BEARINGBEARING
-
320123-798 RING, RETAININGRING, RETAINING
-
332604-115 SPACERSPACER
-
341623-054 NUTNUT
