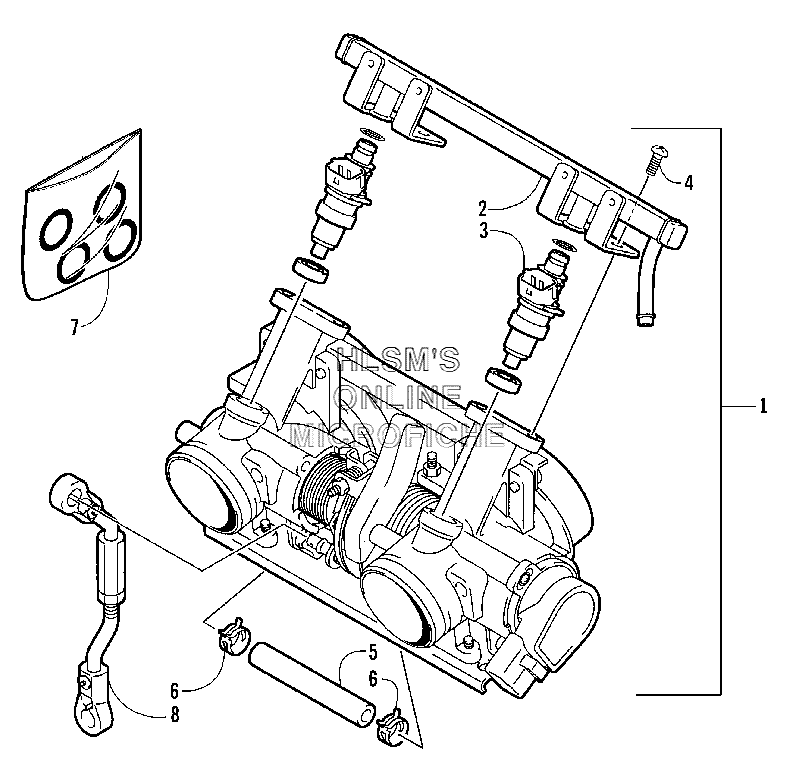

THROTTLE BODY ASSY. для Arctic Cat Sabercat 600 EFI LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
13006-720 BODY, THROTTLE, ASSY., CIRCLE (INC. 2, 7)BODY, THROTTLE, ASSY., CIRCLE (INC. 2, 7)
-
13006-721 BODY, THROTTLE, ASSY., SQUARE (INC. 2, 7)BODY, THROTTLE, ASSY., SQUARE (INC. 2, 7)
-
13006-722 BODY, THROTTLE, ASSY., TRIANGLE (INC. 2, 7)BODY, THROTTLE, ASSY., TRIANGLE (INC. 2, 7)
-
23006-517 PIPE, DELIVERYPIPE, DELIVERY
-
33006-059 INJECTOR, FUEL, ASSY., CIRCLEINJECTOR, FUEL, ASSY., CIRCLE
-
33006-060 INJECTOR, FUEL, ASSY., SQUAREINJECTOR, FUEL, ASSY., SQUARE
-
33006-061 INJECTOR, FUEL, ASSY., TRIANGLEINJECTOR, FUEL, ASSY., TRIANGLE
-
43423-166 SCREWSCREW
-
53006-723 HOSEHOSE
-
63004-193 CLAMP, HOSECLAMP, HOSE
-
73005-692 O-RING SET (INC. ALL THROTTLE BODY O-RINGS)O-RING SET (INC. ALL THROTTLE BODY O-RINGS)
-
83006-514 ROD, CONTROL, OIL PUMPROD, CONTROL, OIL PUMP
