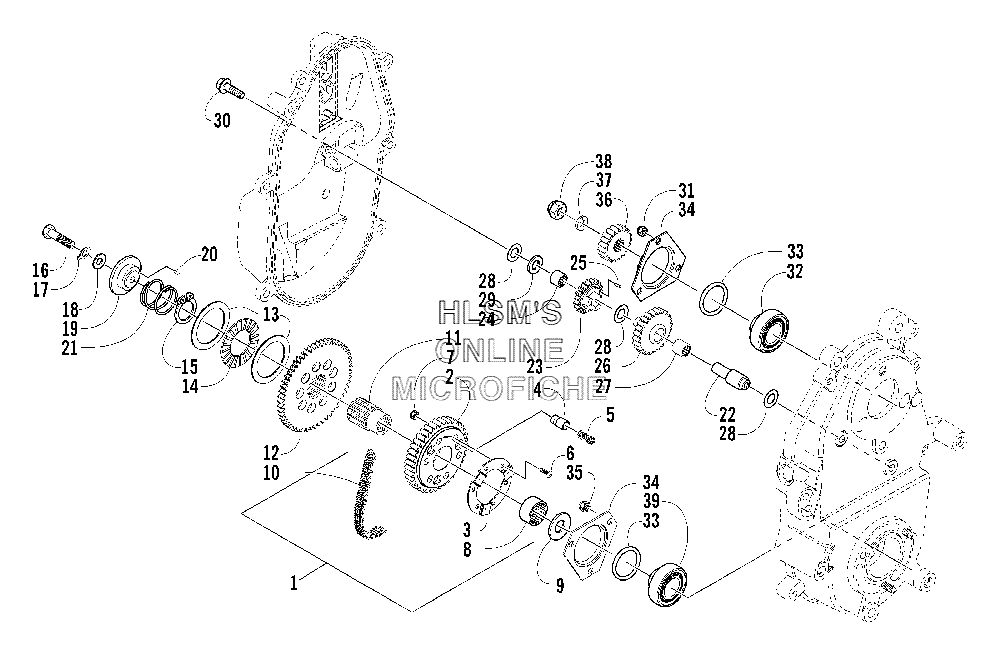

DRIVE/REVERSE DROPCASE ASSY. для Arctic Cat Sabercat 600 EFI LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10702-393 SPROCKET ASSY. (40 TEETH) (INC. 2, 8)SPROCKET ASSY. (40 TEETH) (INC. 2, 8)
-
10702-170 SPROCKET ASSY. (39 TEETH) (INC. 2, 8) (OVER 5, 000 FT ALT.)SPROCKET ASSY. (39 TEETH) (INC. 2, 8) (OVER 5, 000 FT ALT.)
-
30602-144 RETAINER, SPRINGRETAINER, SPRING
-
40602-133 PIN, SLIPPIN, SLIP
-
50602-138 SPRING, COMPRESSIONSPRING, COMPRESSION
-
60623-182 SCREW, CAPSCREW, CAP
-
70123-430 NUT, LOCKNUT, LOCK
-
80602-016 BEARINGBEARING
-
90602-012 SPACER, SHAFTSPACER, SHAFT
-
101602-042 CHAIN, 72PCHAIN, 72P
-
101602-041 CHAIN, 70P (OVER 5, 000 FT ALT.)CHAIN, 70P (OVER 5, 000 FT ALT.)
-
111602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
120702-048 GEAR, REVERSE (55 TEETH) (INC. 13, 15)GEAR, REVERSE (55 TEETH) (INC. 13, 15)
-
130602-023 WASHER, THRUSTWASHER, THRUST
-
140602-022 BEARING, THRUSTBEARING, THRUST
-
150602-024 RING, RETAININGRING, RETAINING
-
168002-231 SCREW, CAPSCREW, CAP
-
171602-046 WASHER, TAB LOCKWASHER, TAB LOCK
-
188050-272 WASHERWASHER
-
190702-372 RETAINER, SHAFT (INC. 20)RETAINER, SHAFT (INC. 20)
-
208070-153 PIN, SPRINGPIN, SPRING
-
210602-028 SPRING, RETURNSPRING, RETURN
-
220602-872 SHAFT, REVERSESHAFT, REVERSE
-
230702-365 IDLER, REVERSE, ASSY. (19 TEETH) (INC. 24)IDLER, REVERSE, ASSY. (19 TEETH) (INC. 24)
-
241602-045 BEARINGBEARING
-
250602-366 ALIGNER, IDLER, PINALIGNER, IDLER, PIN
-
260702-323 IDLER, REVERSE (22 TEETH) (INC. 27)IDLER, REVERSE (22 TEETH) (INC. 27)
-
260702-322 IDLER, REVERSE (24 TEETH) (INC. 27) (OVER 5, 000 FT ALT.)IDLER, REVERSE (24 TEETH) (INC. 27) (OVER 5, 000 FT ALT.)
-
270602-205 BEARING, CAGEDBEARING, CAGED
-
280602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
291602-044 WASHER, THRUSTWASHER, THRUST
-
308020-130 SCREW, CAPSCREW, CAP
-
318041-426 NUT, LOCKNUT, LOCK
-
321602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
330107-003 SEAL, O-RINGSEAL, O-RING
-
341602-521 PLATE, FLANGEPLATE, FLANGE
-
358040-426 NUT, LOCKNUT, LOCK
-
360602-455 SPROCKET (22 TEETH)SPROCKET (22 TEETH)
-
360602-444 SPROCKET (19 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (19 TEETH) (OVER 5, 000 FT ALT.)
-
370623-231 WASHER, SPRINGWASHER, SPRING
-
380623-465 NUT, LOCKNUT, LOCK
-
391602-051 BEARING, 1 IN.BEARING, 1 IN.
