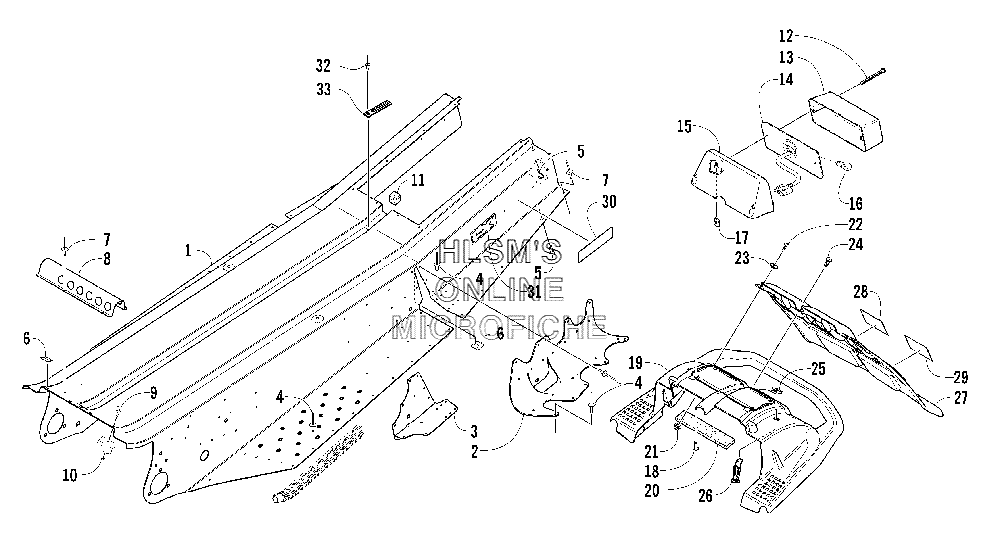

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSY. для Arctic Cat Sabercat 600 EFI LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
11718-568 TUNNEL ASSY. (INC. 2, 4)TUNNEL ASSY. (INC. 2, 4)
-
22706-554 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
22706-555 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
32706-136 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
32706-137 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
40123-418 RIVETRIVET
-
40623-806 RIVETRIVET
-
48060-506 RIVETRIVET
-
51623-022 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
62606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
78060-484 RIVETRIVET
-
82606-938 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
98017-399 SCREW, MACHINESCREW, MACHINE
-
108040-246 NUT, LOCKNUT, LOCK
-
110617-455 FOAM HEAT EXCHANGER (REAR)FOAM HEAT EXCHANGER (REAR)
-
120623-204 SCREW, MACHINESCREW, MACHINE
-
130609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
140609-230 TAILLIGHT W/SOCKET ASSY.TAILLIGHT W/SOCKET ASSY.
-
150609-624 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
160109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
171623-023 NUT, SPEEDNUT, SPEED
-
181623-109 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
193606-454 BUMPER (REAR) (INC. 20)BUMPER (REAR) (INC. 20)
-
200617-456 FOAM HEAT EXCHANGER (REAR)FOAM HEAT EXCHANGER (REAR)
-
218048-366 NUT, LOCKNUT, LOCK
-
228017-581 SCREW, MACHINESCREW, MACHINE
-
230623-875 WASHERWASHER
-
248017-577 SCREW, MACHINESCREW, MACHINE
-
250623-363 NUT, SPEEDNUT, SPEED
-
263606-222 STRAP, HOLD, DOWN, STORAGE BOXSTRAP, HOLD, DOWN, STORAGE BOX
-
273606-333 SNOWFLAP W/DECALS (INC. 28, 29)SNOWFLAP W/DECALS (INC. 28, 29)
-
285611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
295611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
300411-647 DECAL, REFLECTOR (RED)DECAL, REFLECTOR (RED)
-
315611-517 DECAL, "LX", TUNNELDECAL, "LX", TUNNEL
-
328060-506 RIVETRIVET
-
333002-964 CLAMP, WIRECLAMP, WIRE
