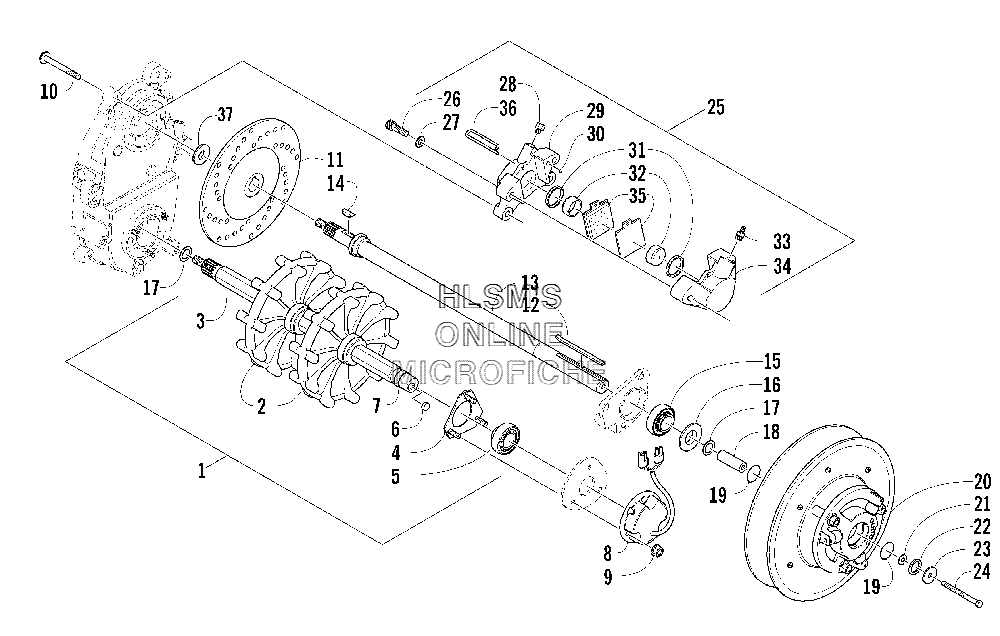

DRIVE TRAIN SHAFTS AND BRAKE ASSY. для Arctic Cat Sabercat 600 EFI LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10728-114 TRACK DRIVE ASSY. (INC. 2, 6)TRACK DRIVE ASSY. (INC. 2, 6)
-
21602-510 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-551 DRIVESHAFTDRIVESHAFT
-
40702-412 PLATE, FLANGEPLATE, FLANGE
-
51602-374 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
60630-167 MAGNETMAGNET
-
80630-166 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
98048-426 NUT, LOCKNUT, LOCK
-
108020-315 SCREW, CAPSCREW, CAP
-
111602-205 DISC, BRAKEDISC, BRAKE
-
120101-076 KEYKEY
-
130702-506 SHAFT, DRIVEN (INC. 14, 16)SHAFT, DRIVEN (INC. 14, 16)
-
140602-598 KEYKEY
-
151602-233 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
161602-367 SPACERSPACER
-
170623-118 WASHERWASHER
-
170623-119 WASHERWASHER
-
180648-042 SHAFT, STUBSHAFT, STUB
-
190616-032 O-RINGO-RING
-
200726-174 CLUTCH, DRIVENCLUTCH, DRIVEN
-
210123-053 WASHERWASHER
-
220123-694 WASHERWASHER
-
230123-019 WASHERWASHER
-
248002-139 SCREW, CAPSCREW, CAP
-
250602-829 CALIPER, BRAKE ASSY. (INC. 26, 36)CALIPER, BRAKE ASSY. (INC. 26, 36)
-
268005-679 SCREW, CAPSCREW, CAP
-
278050-272 WASHERWASHER
-
280602-590 FITTING, ADAPTERFITTING, ADAPTER
-
300602-729 O-RING, HOUSINGO-RING, HOUSING
-
310602-583 O-RINGO-RING
-
320602-708 PISTONPISTON
-
330602-707 SCREW, BLEED, ASSY.SCREW, BLEED, ASSY.
-
350702-229 PAD, BRAKE, SET (INC. 36)PAD, BRAKE, SET (INC. 36)
-
360602-706 PIN, RETAININGPIN, RETAINING
-
370623-912 WASHERWASHER
