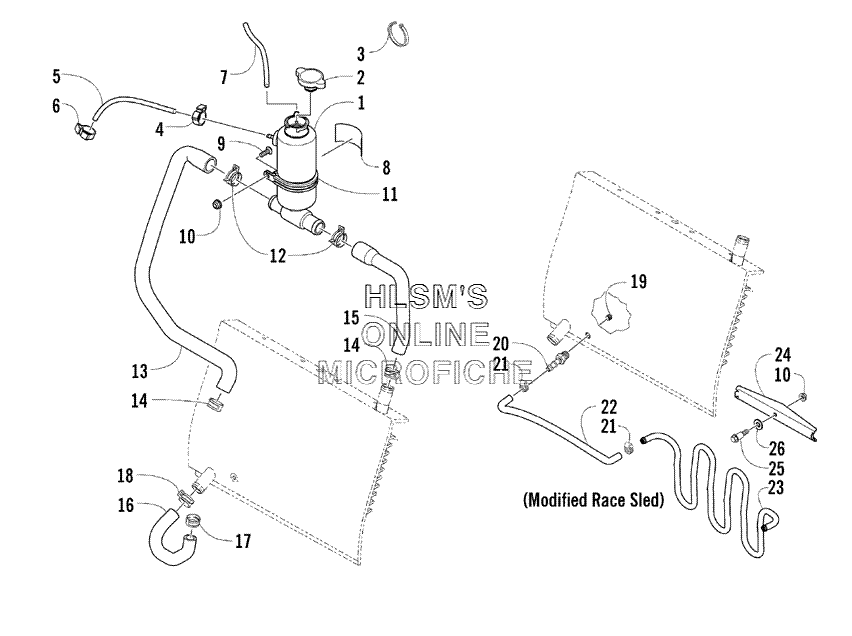

COOLING ASSEMBLY для Arctic Cat AC 440 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
12706-583 TANK, COOLANTTANK, COOLANT
-
23606-492 CAP, FILLER NECKCAP, FILLER NECK
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40124-045 CLAMP, HOSECLAMP, HOSE
-
50610-538 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
60623-063 CLAMP, HOSECLAMP, HOSE
-
70610-015 HOSE, COOLANT (100 FT)HOSE, COOLANT (100 FT)
-
70610-016 HOSE, COOLANT (25 FT)HOSE, COOLANT (25 FT)
-
82611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
98017-580 SCREW, MACHINESCREW, MACHINE
-
108047-366 NUT, LOCKNUT, LOCK
-
110623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
120623-736 CLAMP, HOSECLAMP, HOSE
-
130610-580 HOSE, COOLANT, COOLANT TANK/ENGINEHOSE, COOLANT, COOLANT TANK/ENGINE
-
141623-049 CLAMP, HOSECLAMP, HOSE
-
150610-579 HOSE, COOLANT, HEAT EXCHANGER/COOLANT TANKHOSE, COOLANT, HEAT EXCHANGER/COOLANT TANK
-
160610-527 HOSE, COOLANT, ENGINE/HEAT EXCHANGERHOSE, COOLANT, ENGINE/HEAT EXCHANGER
-
171623-418 CLAMP, HOSECLAMP, HOSE
-
180623-941 CLAMP, HOSECLAMP, HOSE
-
191623-436 PLUG, PIPEPLUG, PIPE
-
201623-432 FITTING, STRAIGHTFITTING, STRAIGHT
-
210623-373 CLAMP, HOSECLAMP, HOSE
-
220610-660 HOSE, FRONT EXCHANGER/COOLING TUBEHOSE, FRONT EXCHANGER/COOLING TUBE
-
234606-104 TUBE, COOLINGTUBE, COOLING
-
244606-106 RETAINER, COOLING TUBERETAINER, COOLING TUBE
-
250623-855 SCREW, HEXSCREW, HEX
-
260623-044 WASHERWASHER
