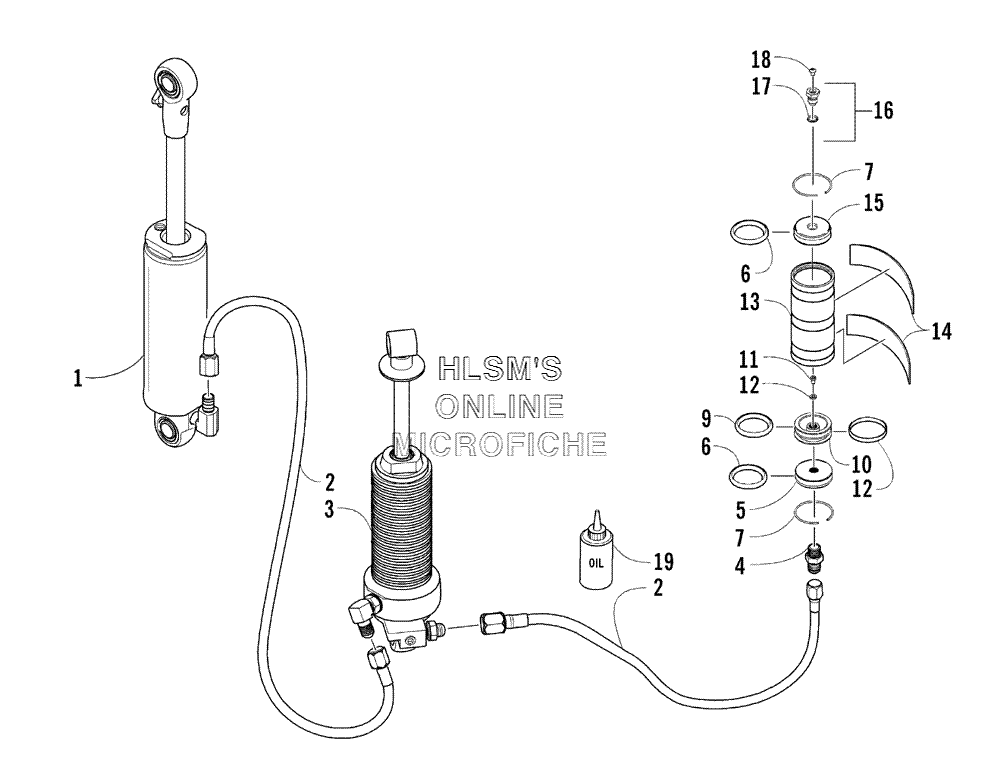

REAR SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat AC 440 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
-1704-348 REAR SUSPENSION SHOCK ABSORBER ASSEMBLYREAR SUSPENSION SHOCK ABSORBER ASSEMBLY
-
-3639-107 SHOCK ABSORBER REBUILD KITSHOCK ABSORBER REBUILD KIT
-
11704-350 SHOCK ABSORBER, REAR ARMSHOCK ABSORBER, REAR ARM
-
22604-967 HOSE, STRAIGHT/SWIVELHOSE, STRAIGHT/SWIVEL
-
31704-349 SHOCK ABSORBER, FRONT ARMSHOCK ABSORBER, FRONT ARM
-
42604-944 FITTING, ADAPTER, HIGH FLOWFITTING, ADAPTER, HIGH FLOW
-
52604-968 END CAP, RESERVOIR ASSEMBLY (INC. ONE NO. 6)END CAP, RESERVOIR ASSEMBLY (INC. ONE NO. 6)
-
70604-992 RETAINER, END CAPRETAINER, END CAP
-
82604-517 PISTON, FLOATING, ASSEMBLY (INC. 9)PISTON, FLOATING, ASSEMBLY (INC. 9)
-
111604-316 SCREW, RELIEF (INC. 12)SCREW, RELIEF (INC. 12)
-
131603-935 BODY, RESERVOIRBODY, RESERVOIR
-
141603-932 DECAL, SHOCKDECAL, SHOCK
-
151603-941 END CAP, RESERVOIR ASSEMBLY (INC. 16, 17 AND ONE NO. 6 AND 7)END CAP, RESERVOIR ASSEMBLY (INC. 16, 17 AND ONE NO. 6 AND 7)
-
160703-341 VALVE, PRESSURE, ASSEMBLY (INC. 17)VALVE, PRESSURE, ASSEMBLY (INC. 17)
-
180624-097 SCREW, MACHINESCREW, MACHINE
-
192639-905 OIL, SHOCK, 6 QT CASEOIL, SHOCK, 6 QT CASE
