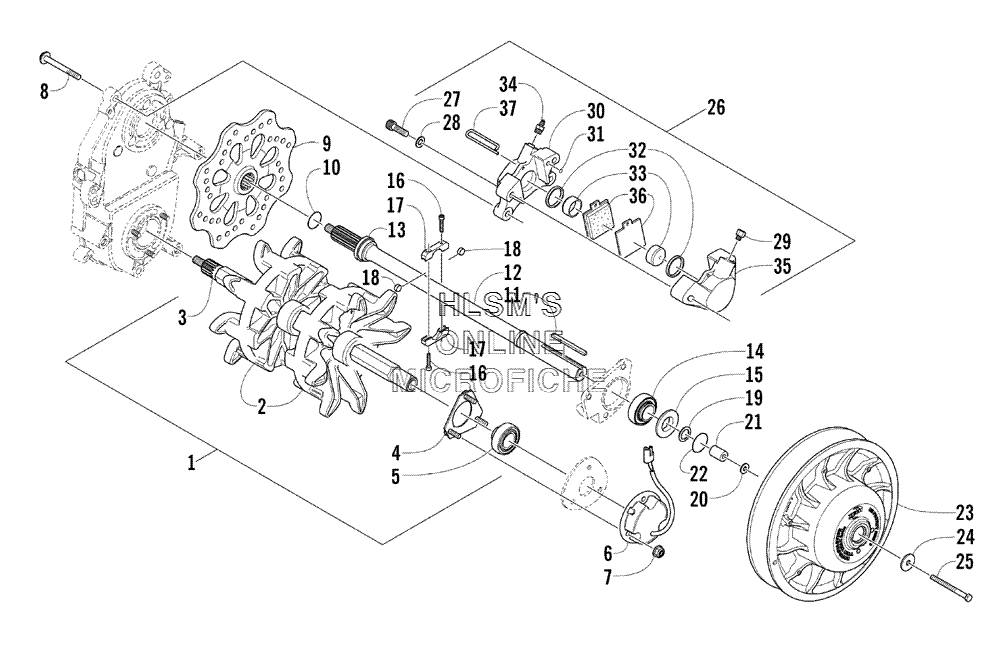

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat AC 440 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10728-118 TRACK DRIVE ASSEMBLY (INC. 2, 5)TRACK DRIVE ASSEMBLY (INC. 2, 5)
-
21602-727 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-530 DRIVESHAFTDRIVESHAFT
-
40702-412 PLATE, FLANGEPLATE, FLANGE
-
51602-601 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
60630-180 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
78047-426 NUT, LOCKNUT, LOCK
-
88020-315 SCREW, CAPSCREW, CAP
-
91602-795 DISC, BRAKEDISC, BRAKE
-
101602-199 O-RINGO-RING
-
111602-812 KEYKEY
-
120702-771 SHAFT, DRIVEN (INC. 13, 15)SHAFT, DRIVEN (INC. 13, 15)
-
131602-114 COLLAR, HUB, BRAKE DISCCOLLAR, HUB, BRAKE DISC
-
141602-233 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
151602-367 SPACERSPACER
-
168005-402 SCREW, CAPSCREW, CAP
-
173606-581 BRACKET, SPEED SENSORBRACKET, SPEED SENSOR
-
180630-167 MAGNET, DISCMAGNET, DISC
-
190623-118 WASHERWASHER
-
190623-119 WASHERWASHER
-
200123-053 WASHERWASHER
-
210648-709 SHAFT, STUBSHAFT, STUB
-
220616-032 O-RINGO-RING
-
230726-210 CLUTCH, DRIVENCLUTCH, DRIVEN
-
240123-019 WASHERWASHER
-
258002-138 SCREW, CAPSCREW, CAP
-
261602-639 CALIPER, BRAKE, ASSEMBLY (INC. 27, 37)CALIPER, BRAKE, ASSEMBLY (INC. 27, 37)
-
278005-679 SCREW, CAPSCREW, CAP
-
288050-272 WASHERWASHER
-
290602-590 FITTING, ADAPTERFITTING, ADAPTER
-
310602-729 O-RING, HOUSINGO-RING, HOUSING
-
320602-583 O-RINGO-RING
-
330602-708 PISTONPISTON
-
340602-707 SCREW, BLEED, ASSEMBLYSCREW, BLEED, ASSEMBLY
-
360702-229 PAD, BRAKE, SET (INC. 37)PAD, BRAKE, SET (INC. 37)
-
370602-706 PIN, RETAININGPIN, RETAINING
