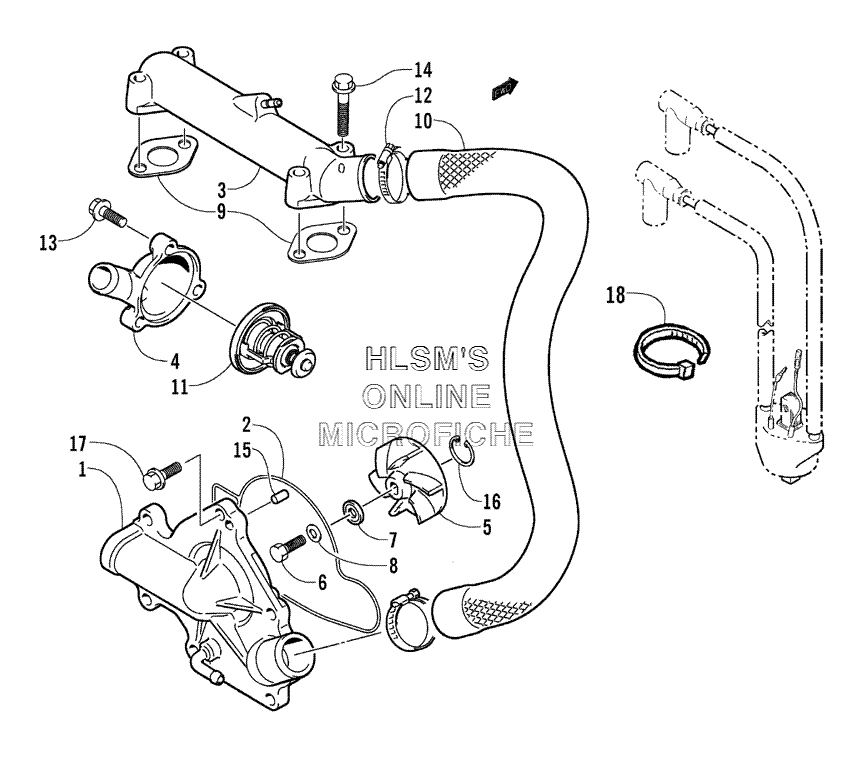

WATER PUMP/WATER MANIFOLD ASSEMBLY для Arctic Cat AC 440 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
13006-355 COVER, WATER PUMPCOVER, WATER PUMP
-
23006-356 O-RING, WATER PUMP COVERO-RING, WATER PUMP COVER
-
33006-619 MANIFOLD ASSEMBLY, WATER INLETMANIFOLD ASSEMBLY, WATER INLET
-
43006-974 CAP, THERMOSTATCAP, THERMOSTAT
-
53005-697 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
63003-426 BOLTBOLT
-
73003-431 WASHERWASHER
-
83003-432 GASKETGASKET
-
93004-260 GASKET, WATER INLET MANIFOLD ASSEMBLYGASKET, WATER INLET MANIFOLD ASSEMBLY
-
103006-360 HOSE, WATER INLETHOSE, WATER INLET
-
113006-913 THERMOSTAT, WATERTHERMOSTAT, WATER
-
123006-324 CLAMPCLAMP
-
133004-512 BOLTBOLT
-
143004-442 BOLTBOLT
-
153005-899 PIN, DOWELPIN, DOWEL
-
163004-009 CIRCLIPCIRCLIP
-
173004-341 BOLTBOLT
-
180123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
