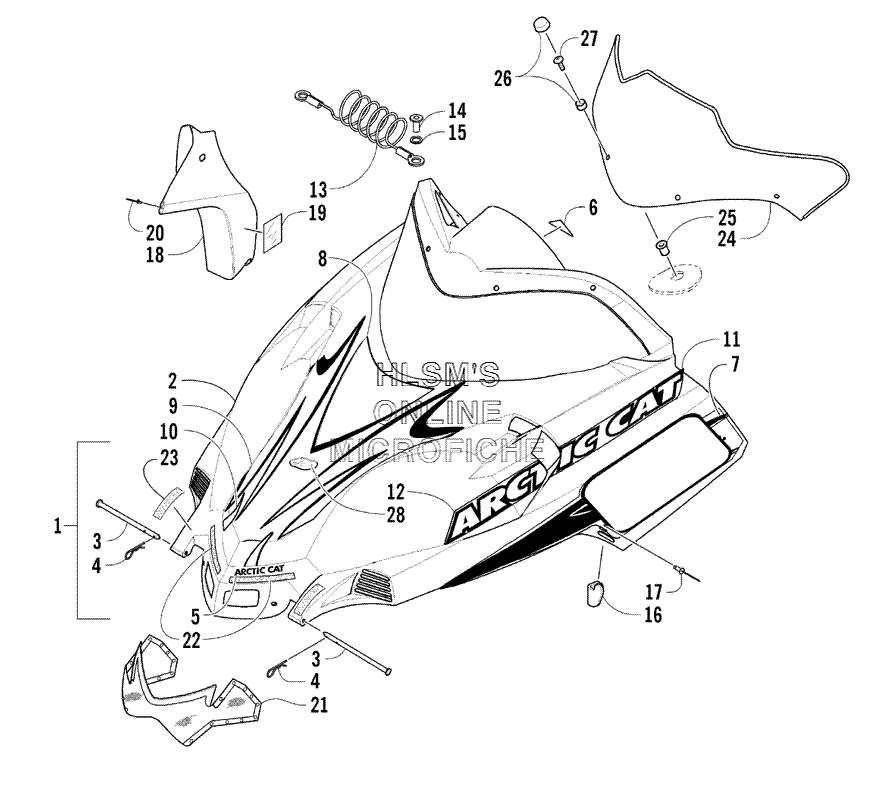

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat AC 440 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11718-853 HOOD W/DECALS (INC. 2, 12)HOOD W/DECALS (INC. 2, 12)
-
22706-638 HOOD W/O DECALS (INC. 3, 4)HOOD W/O DECALS (INC. 3, 4)
-
31623-026 PIN, CLEVISPIN, CLEVIS
-
40623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
53611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
63611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
76611-624 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
76611-625 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
86611-615 DECAL, COVER, CRESTDECAL, COVER, CREST
-
96611-616 DECAL, COVER, SIDE (RIGHT)DECAL, COVER, SIDE (RIGHT)
-
96611-617 DECAL, COVER, SIDE (LEFT)DECAL, COVER, SIDE (LEFT)
-
106611-618 DECAL, COVER, FRONT (RIGHT)DECAL, COVER, FRONT (RIGHT)
-
106611-619 DECAL, COVER, FRONT (LEFT)DECAL, COVER, FRONT (LEFT)
-
117611-026 DECAL, HOOD, VENT, REAR (RIGHT)DECAL, HOOD, VENT, REAR (RIGHT)
-
117611-027 DECAL, HOOD, VENT, REAR (LEFT)DECAL, HOOD, VENT, REAR (LEFT)
-
127611-028 DECAL, HOOD, VENT, FRONT (RIGHT)DECAL, HOOD, VENT, FRONT (RIGHT)
-
127611-029 DECAL, HOOD, VENT, FRONT (LEFT)DECAL, HOOD, VENT, FRONT (LEFT)
-
132606-726 CABLE, HOODCABLE, HOOD
-
148060-628 RIVET, BLINDRIVET, BLIND
-
158050-157 WASHER, FLATWASHER, FLAT
-
162606-096 HOLD, DOWN, HOOD (RIGHT)HOLD, DOWN, HOOD (RIGHT)
-
161606-441 HOLD, DOWN, HOOD (LEFT)HOLD, DOWN, HOOD (LEFT)
-
178061-708 RIVETRIVET
-
183606-030 DUCT, BRAKEDUCT, BRAKE
-
192606-556 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
208061-506 RIVETRIVET
-
213706-081 SCREEN, HOOD, ASSEMBLYSCREEN, HOOD, ASSEMBLY
-
222706-458 VELCRO, HOOK (10 FT)VELCRO, HOOK (10 FT)
-
236990-266 VELCRO, HOOK (10 FT)VELCRO, HOOK (10 FT)
-
243606-842 WINDSHIELDWINDSHIELD
-
250623-845 NUT, EXPANSIONNUT, EXPANSION
-
260124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
270623-902 SCREW, MACHINESCREW, MACHINE
-
282606-577 FOIL, PROTECTIVE, 6 IN. X 12 IN.FOIL, PROTECTIVE, 6 IN. X 12 IN.
