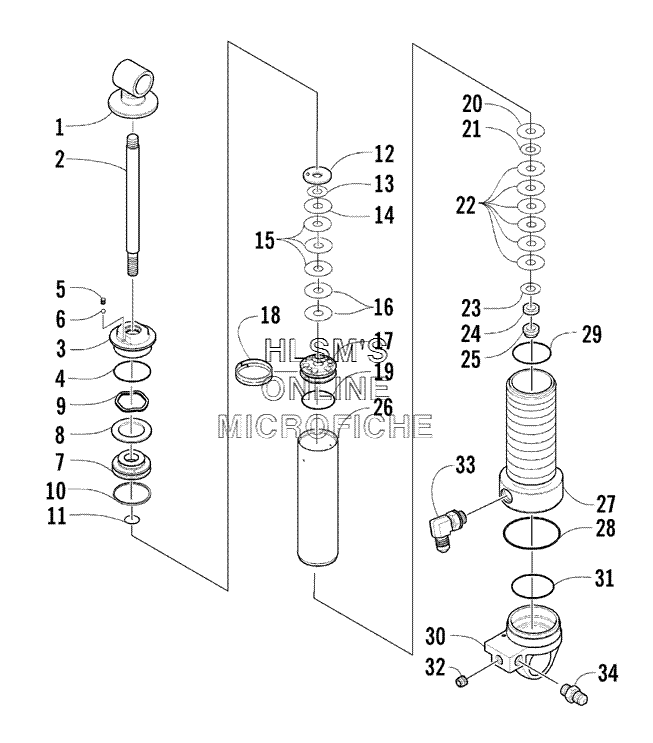

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat AC 440 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
-1704-349 SHOCK ABSORBER ASSEMBLYSHOCK ABSORBER ASSEMBLY
-
-3639-107 SHOCK ABSORBER REBUILD KITSHOCK ABSORBER REBUILD KIT
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-529 ROD, SHOCKROD, SHOCK
-
32604-568 BEARING ASSEMBLY (INC. 4)BEARING ASSEMBLY (INC. 4)
-
71704-262 PISTON, SEPARATOR (INC. 8, 9)PISTON, SEPARATOR (INC. 8, 9)
-
82604-669 WASHERWASHER
-
92604-668 RING, RETAININGRING, RETAINING
-
120603-540 WASHER, TOP OUTWASHER, TOP OUT
-
130603-349 VALVE, SHOCK 1.300 X 0.008 IN.VALVE, SHOCK 1.300 X 0.008 IN.
-
140603-334 VALVE, SHOCK 0.800 X 0.008 IN.VALVE, SHOCK 0.800 X 0.008 IN.
-
150603-891 VALVE, SHOCK 1.300 X 0.012 IN.VALVE, SHOCK 1.300 X 0.012 IN.
-
160603-890 VALVE, SHOCK 1.300 X 0.015 IN.VALVE, SHOCK 1.300 X 0.015 IN.
-
172604-965 PISTON, 0.041 IN., ORIFICEPISTON, 0.041 IN., ORIFICE
-
200603-343 VALVE, SHOCK 1.100 X 0.008 IN.VALVE, SHOCK 1.100 X 0.008 IN.
-
210603-331 VALVE, SHOCK 0.700 X 0.008 IN.VALVE, SHOCK 0.700 X 0.008 IN.
-
220603-344 VALVE, SHOCK 1.100 X 0.010 IN.VALVE, SHOCK 1.100 X 0.010 IN.
-
230603-880 VALVE, SHOCK 0.900 X 0.012 IN.VALVE, SHOCK 0.900 X 0.012 IN.
-
242604-966 WASHER, TOP OUTWASHER, TOP OUT
-
250603-301 NUT, CAPNUT, CAP
-
262604-942 BODY, SHOCKBODY, SHOCK
-
272604-941 SLEEVE, ADJUSTER (INC. 28, 29)SLEEVE, ADJUSTER (INC. 28, 29)
-
280604-809 O-RINGO-RING
-
290604-810 O-RINGO-RING
-
302604-909 END CAP, SHOCK (INC. 31)END CAP, SHOCK (INC. 31)
-
310603-438 O-RINGO-RING
-
322604-207 PLUG, BRASSPLUG, BRASS
-
332604-943 FITTING, ELBOWFITTING, ELBOW
-
342604-944 FITTING, STRAIGHTFITTING, STRAIGHT
