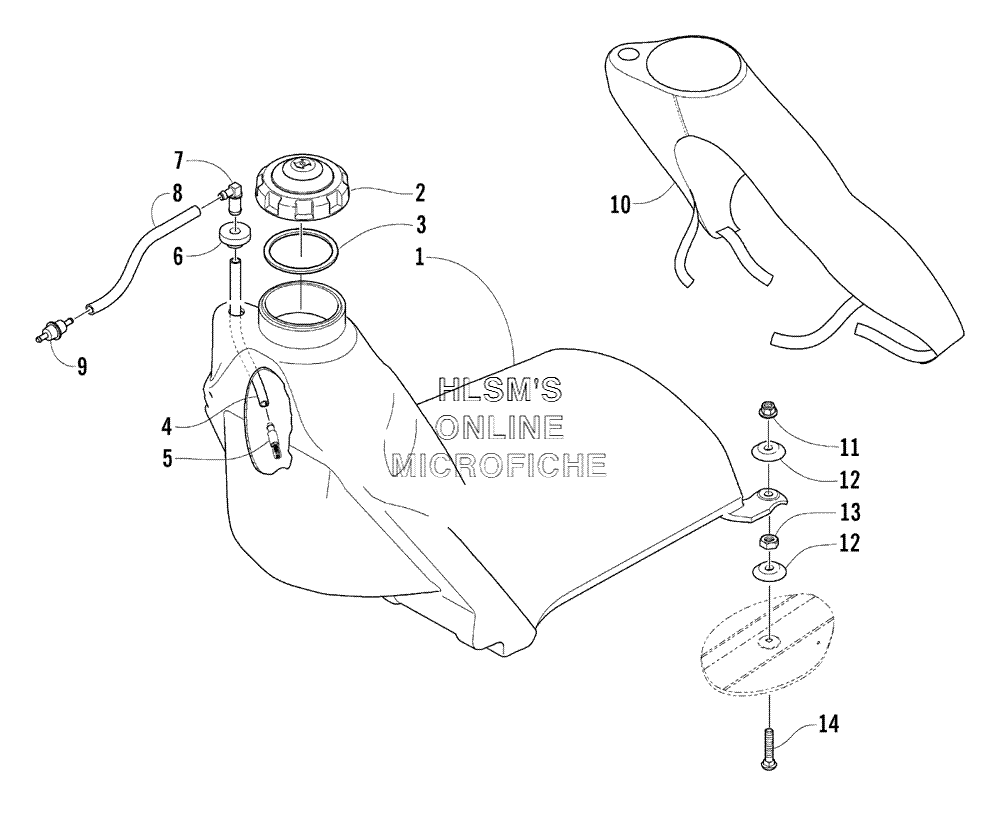

GAS TANK ASSEMBLY для Arctic Cat AC 440 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10770-716 TANK, GAS (INC. 2, 8)TANK, GAS (INC. 2, 8)
-
21670-610 CAP, GAS TANK (INC. 3)CAP, GAS TANK (INC. 3)
-
31670-228 SEAL, TANK CAPSEAL, TANK CAP
-
40610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
40610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
61670-325 GROMMET, GAS TANKGROMMET, GAS TANK
-
70109-414 FITTING, ELBOWFITTING, ELBOW
-
80610-015 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
80610-016 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
91670-166 FILTER, INNER, LINE FUELFILTER, INNER, LINE FUEL
-
102706-586 COVER, GAS TANKCOVER, GAS TANK
-
118047-366 NUT, LOCKNUT, LOCK
-
120123-765 WASHER, CUPWASHER, CUP
-
138041-366 NUT, LOCKNUT, LOCK
-
148011-041 BOLT, CARRIAGEBOLT, CARRIAGE
