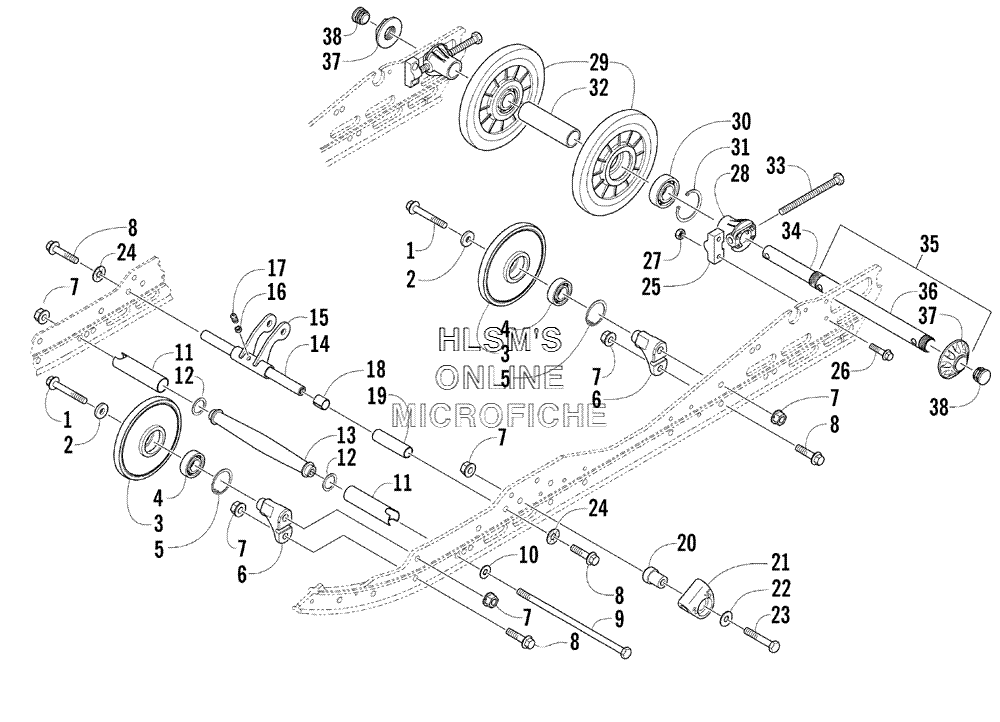

IDLER WHEEL ASSEMBLY для Arctic Cat AC 440 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
20623-664 WASHERWASHER
-
31604-837 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
41604-847 BEARING, WHEELBEARING, WHEEL
-
50623-946 RING, RETAININGRING, RETAINING
-
62604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
78047-486 NUT, LOCKNUT, LOCK
-
88020-224 SCREW, CAPSCREW, CAP
-
90623-907 SCREW, CAPSCREW, CAP
-
100623-044 WASHERWASHER
-
112604-401 SPACERSPACER
-
121623-117 WASHERWASHER
-
132604-867 AXLE, STEELAXLE, STEEL
-
140604-930 AXLE, ALUMINUMAXLE, ALUMINUM
-
150704-994 PIVOT, SHOCK (INC. 16, 18)PIVOT, SHOCK (INC. 16, 18)
-
161623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
171623-010 FITTING, GREASEFITTING, GREASE
-
180603-083 BEARINGBEARING
-
192604-109 SPACERSPACER
-
202604-378 BLOCK, SLIDEBLOCK, SLIDE
-
212604-515 SLIDE, SPRINGSLIDE, SPRING
-
228050-282 WASHERWASHER
-
238002-229 SCREW, CAPSCREW, CAP
-
241623-218 WASHER, LOCKWASHER, LOCK
-
251704-379 ADJUSTER, TRACKADJUSTER, TRACK
-
268020-042 SCREW, CAPSCREW, CAP
-
278040-366 NUT, HEXNUT, HEX
-
282604-970 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
292604-117 WHEEL, IDLER (INC. 30, 31)WHEEL, IDLER (INC. 30, 31)
-
300107-598 BEARINGBEARING
-
310123-798 RING, RETAININGRING, RETAINING
-
322604-115 SPACERSPACER
-
331623-414 SCREW, CAPSCREW, CAP
-
342604-915 INSERT, AXLEINSERT, AXLE
-
351704-435 AXLE, REAR (LEFT) (INC. 36 AND ONE NO. 37)AXLE, REAR (LEFT) (INC. 36 AND ONE NO. 37)
-
361704-421 AXLE, REARAXLE, REAR
-
372604-914 NUT, AXLENUT, AXLE
-
380623-831 CAPCAP
