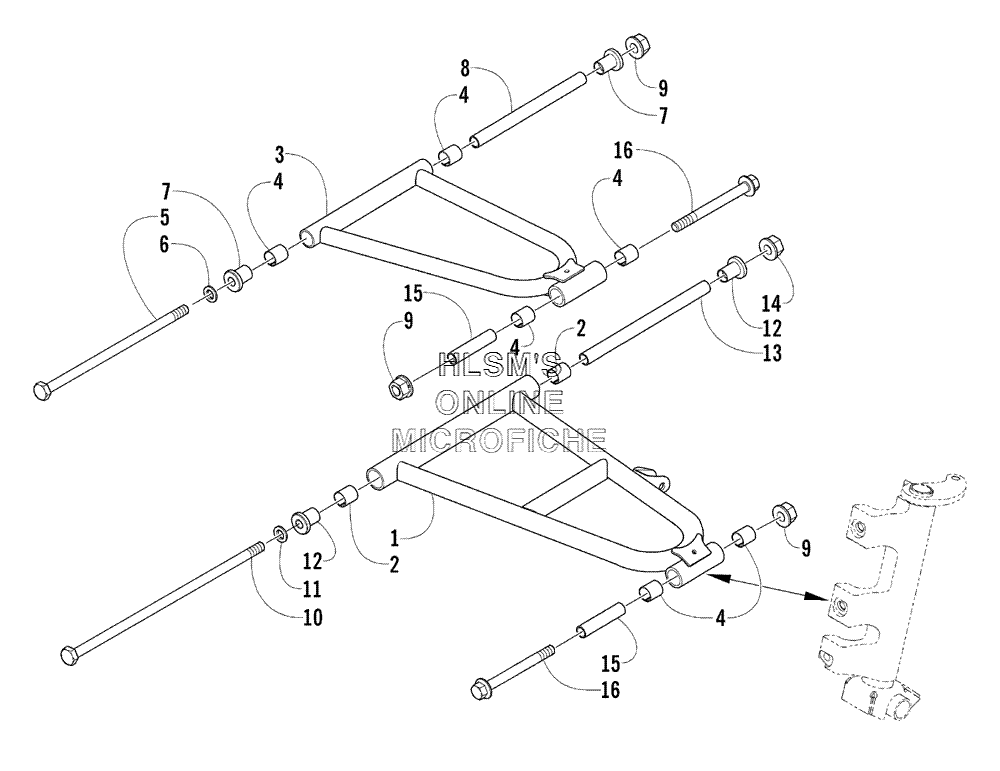

A-ARM ASSEMBLY для Arctic Cat Pantera 600 EFI - 2005 года выпуска
-
№АртикулНазвание
-
10703-532 ARM (LOWER/RIGHT) (INC. 2 AND 4)ARM (LOWER/RIGHT) (INC. 2 AND 4)
-
10703-533 ARM (LOWER/LEFT) (INC. 2 AND 4)ARM (LOWER/LEFT) (INC. 2 AND 4)
-
20603-158 BEARINGBEARING
-
30703-535 ARM (UPPER) (INC. 4)ARM (UPPER) (INC. 4)
-
40603-083 BEARINGBEARING
-
50623-509 SCREW, CAPSCREW, CAP
-
60623-664 WASHERWASHER
-
71603-244 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
80603-692 TUBE, AXLETUBE, AXLE
-
98048-486 NUT, LOCKNUT, LOCK
-
100623-508 SCREW, CAPSCREW, CAP
-
110623-663 WASHERWASHER
-
121603-397 AXLE, NON, SERRATEDAXLE, NON, SERRATED
-
130603-693 TUBE, AXLETUBE, AXLE
-
148048-546 NUT, LOCKNUT, LOCK
-
150603-830 AXLE, SPINDLE MOUNTAXLE, SPINDLE MOUNT
-
168026-234 SCREW, CAPSCREW, CAP
