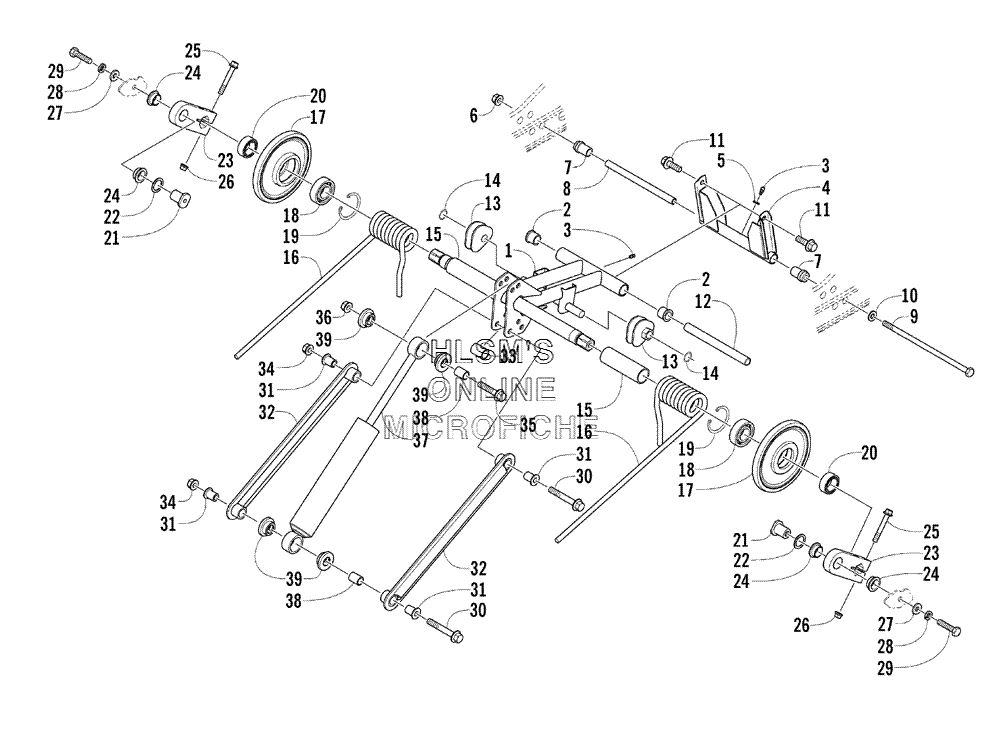

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat Pantera 600 EFI - 2005 года выпуска
-
№АртикулНазвание
-
11704-012 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 BUSHINGBUSHING
-
31623-010 FITTING, GREASEFITTING, GREASE
-
41704-019 ARM (REAR) (INC. ONE NO. 3 AND 5)ARM (REAR) (INC. ONE NO. 3 AND 5)
-
51623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
68047-490 NUT, LOCKNUT, LOCK
-
72604-664 BUSHING ARM (REAR)BUSHING ARM (REAR)
-
82604-663 AXLE, INNERAXLE, INNER
-
91623-037 SCREW, CAPSCREW, CAP
-
108050-272 WASHERWASHER
-
118020-220 SCREW, CAPSCREW, CAP
-
121604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
131604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
131604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
140623-138 RING, RETAINERRING, RETAINER
-
150114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
161704-146 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
161704-147 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
172604-699 WHEEL, IDLER (INC. 18, 19)WHEEL, IDLER (INC. 18, 19)
-
180107-598 BEARINGBEARING
-
190123-798 RING, RETAININGRING, RETAINING
-
201604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
211604-181 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
221604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
230704-981 ARM, PIVOT IDLER (INC. 24, 26)ARM, PIVOT IDLER (INC. 24, 26)
-
241604-202 BUSHING, FLAREDBUSHING, FLARED
-
258020-138 SCREW, CAPSCREW, CAP
-
268048-426 NUT, LOCKNUT, LOCK
-
270623-044 WASHERWASHER
-
288051-277 WASHER, LOCKWASHER, LOCK
-
298002-224 SCREW, CAPSCREW, CAP
-
300623-793 SCREW, CAPSCREW, CAP
-
311604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
320704-928 LINK, INNER CARRIAGELINK, INNER CARRIAGE
-
330704-854 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
348048-486 NUT, LOCKNUT, LOCK
-
358020-226 SCREW, CAPSCREW, CAP
-
368041-486 NUT, LOCKNUT, LOCK
-
372604-637 SHOCK ABSORBER ARM (REAR) (INC. 38, 39)SHOCK ABSORBER ARM (REAR) (INC. 38, 39)
-
381604-185 SLEEVE, SHOCKSLEEVE, SHOCK
-
390604-310 BUSHING, SHOCKBUSHING, SHOCK
