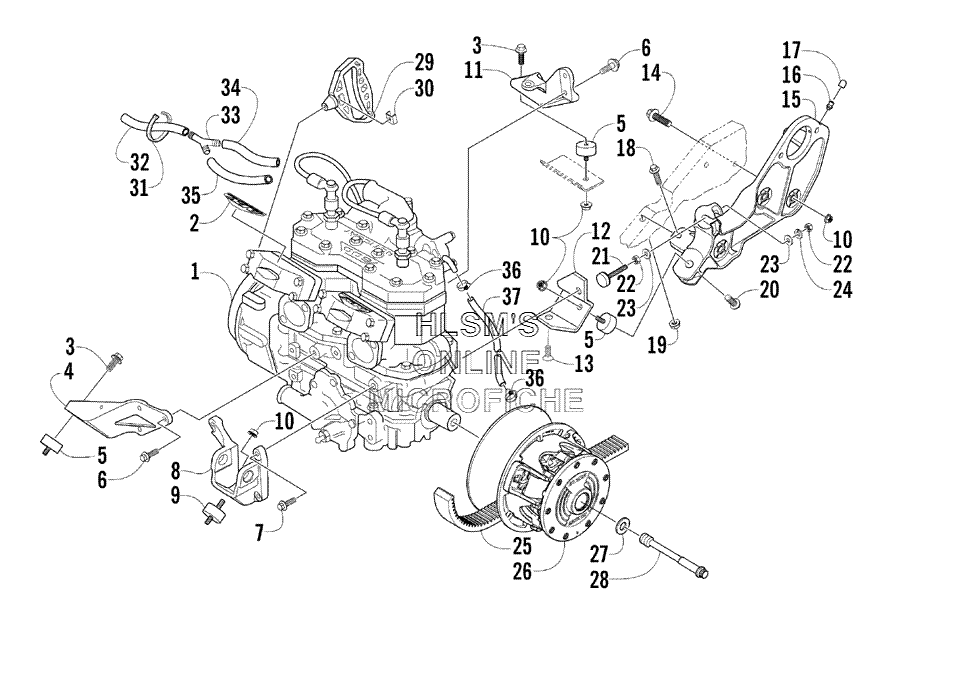

ENGINE AND RELATED PARTS для Arctic Cat Pantera 600 EFI - 2005 года выпуска
-
№АртикулНазвание
-
10662-404 ENGINE, AD60L9 W/O EFI COMPONENTSENGINE, AD60L9 W/O EFI COMPONENTS
-
23611-967 DECAL, "APV"DECAL, "APV"
-
38020-220 SCREW, CAPSCREW, CAP
-
40708-102 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
50608-217 MOUNT, ENGINEMOUNT, ENGINE
-
68020-130 SCREW, CAPSCREW, CAP
-
78020-132 SCREW, CAPSCREW, CAP
-
80745-179 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
90608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
108048-486 NUT, LOCKNUT, LOCK
-
110708-104 BRACKET, ENGINE MOUNTING (RIGHT/REAR)BRACKET, ENGINE MOUNTING (RIGHT/REAR)
-
120708-120 BRACKET, ENGINE MOUNTING (LEFT/REAR)BRACKET, ENGINE MOUNTING (LEFT/REAR)
-
130623-095 SCREW, MACHINESCREW, MACHINE
-
148020-224 SCREW, CAPSCREW, CAP
-
150708-140 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 16, 17)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 16, 17)
-
161623-010 FITTING, GREASEFITTING, GREASE
-
170623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
188020-040 SCREW, CAPSCREW, CAP
-
198048-366 NUT, LOCKNUT, LOCK
-
208020-225 SCREW, CAPSCREW, CAP
-
210608-299 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
228042-516 NUTNUT
-
238050-282 WASHERWASHER
-
248051-277 WASHER, LOCKWASHER, LOCK
-
250627-020 BELT, DRIVEBELT, DRIVE
-
260725-326 CLUTCH, DRIVECLUTCH, DRIVE
-
270623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
280623-804 BOLT, CLUTCHBOLT, CLUTCH
-
290636-363 HANDLE, RECOILHANDLE, RECOIL
-
300606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
310123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
320610-365 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
330670-875 Y, FITTINGY, FITTING
-
340610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
350610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
-
360623-373 CLAMP, HOSECLAMP, HOSE
-
370610-076 HOSE, COOLANTHOSE, COOLANT
