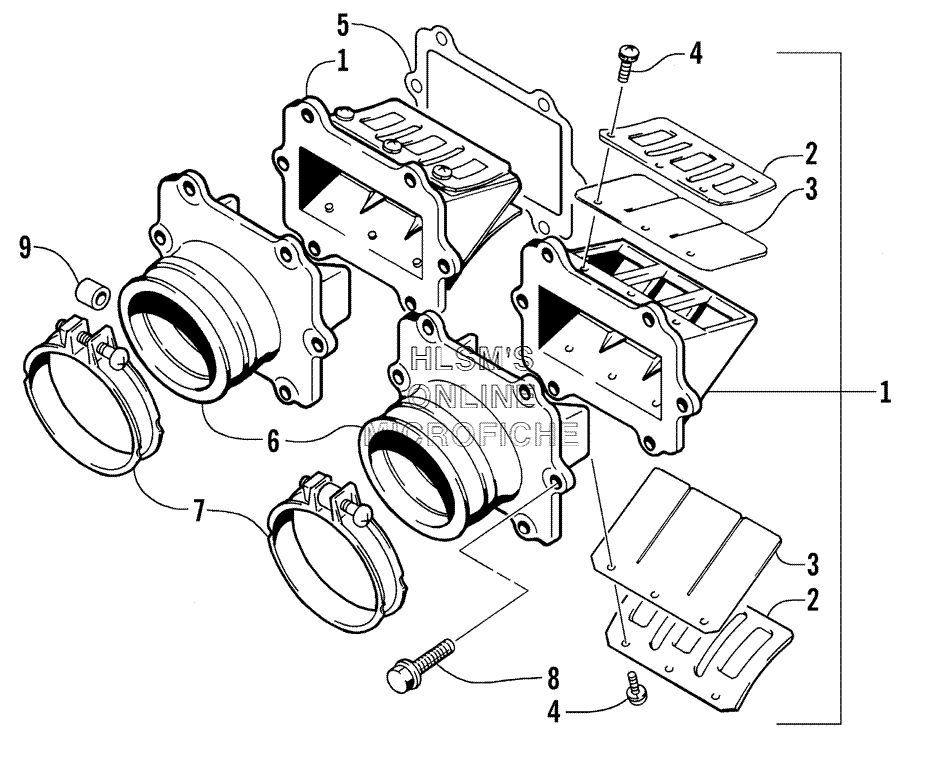

REED VALVE ASSEMBLY для Arctic Cat Pantera 600 EFI - 2005 года выпуска
-
№АртикулНазвание
-
13005-124 VALVE, REED, ASSEMBLY (INC. 2, 4)VALVE, REED, ASSEMBLY (INC. 2, 4)
-
23004-176 STOPPER, REED VALVESTOPPER, REED VALVE
-
33004-177 VALVE, REEDVALVE, REED
-
43004-506 SCREW, REED VALVESCREW, REED VALVE
-
53008-076 GASKET, REED VALVEGASKET, REED VALVE
-
63005-264 PIPE, INTAKE, ASSEMBLYPIPE, INTAKE, ASSEMBLY
-
73004-463 CLAMPCLAMP
-
83004-376 BOLTBOLT
-
90670-210 SPACER, CLAMPSPACER, CLAMP
