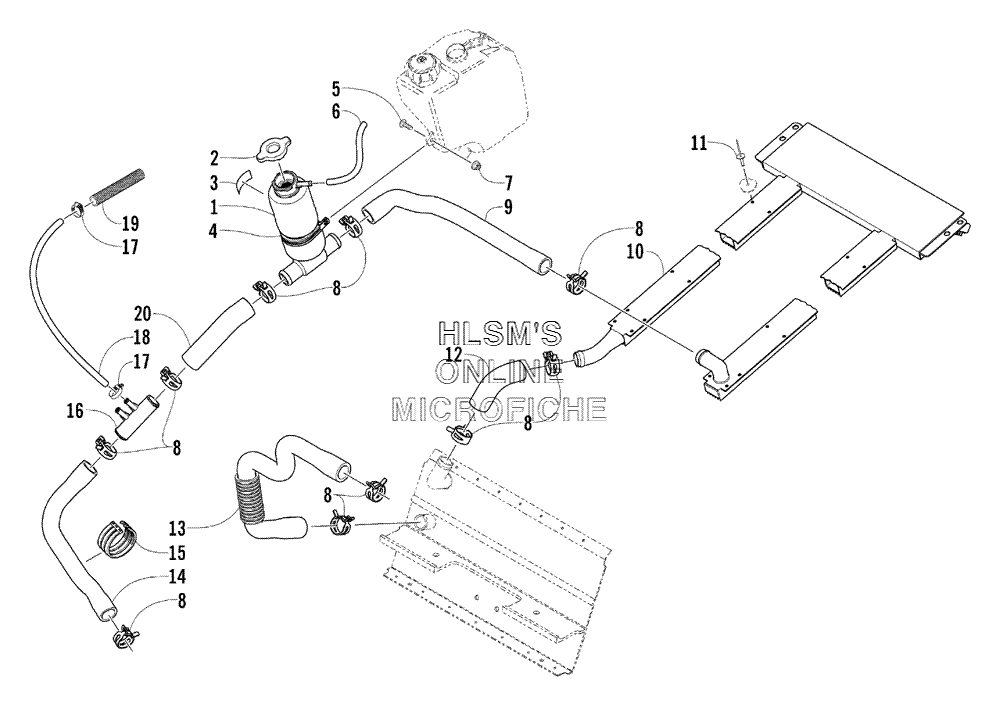

COOLING ASSEMBLY для Arctic Cat Pantera 600 EFI - 2005 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20606-268 CAP, FILLER NECKCAP, FILLER NECK
-
32611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
40623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
58017-580 SCREW, MACHINESCREW, MACHINE
-
66101-001 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
66101-009 HOSE, VENT (50 FT)HOSE, VENT (50 FT)
-
78048-366 NUT, LOCKNUT, LOCK
-
80623-736 CLAMP, HOSECLAMP, HOSE
-
90610-379 HOSE, COOLANT TANK/REAR HEAT EXCHANGERHOSE, COOLANT TANK/REAR HEAT EXCHANGER
-
101706-919 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
118060-706 RIVETRIVET
-
120610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGER
-
130610-418 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
140610-386 HOSE, COOLANT, ENGINE/T, FITTINGHOSE, COOLANT, ENGINE/T, FITTING
-
150623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
160616-065 T, FITTING, DOUBLET, FITTING, DOUBLE
-
170623-373 CLAMP, HOSECLAMP, HOSE
-
180610-075 HOSE, COOLANT (10 FT)HOSE, COOLANT (10 FT)
-
190619-776 CONDUIT, FLEXIBLE (5 FT)CONDUIT, FLEXIBLE (5 FT)
-
200610-192 HOSE, COOLANT, COOLANT TANK/T, FITTINGHOSE, COOLANT, COOLANT TANK/T, FITTING
