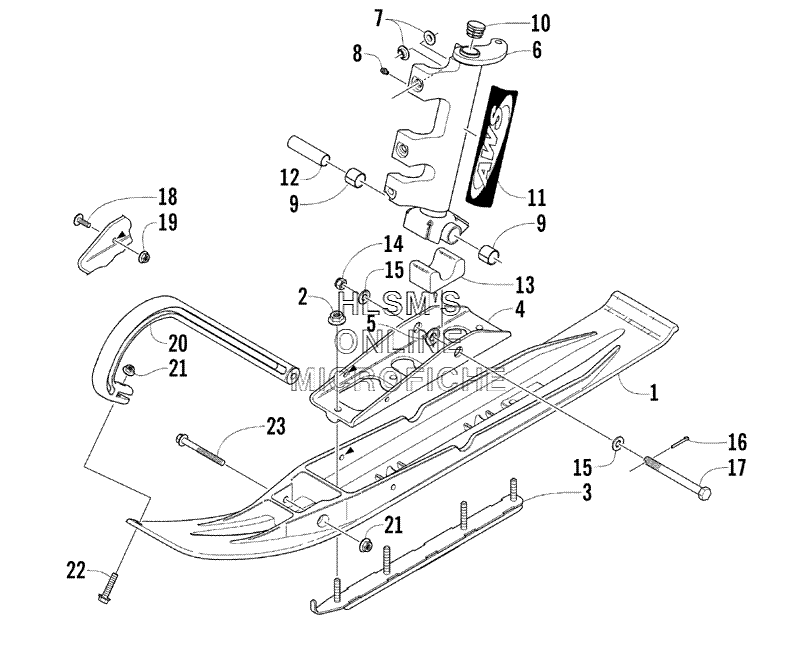

SKI AND SPINDLE ASSEMBLY для Arctic Cat Pantera 600 EFI - 2005 года выпуска
-
№АртикулНазвание
-
11703-109 SKI, PLASTICSKI, PLASTIC
-
28048-486 NUT, LOCKNUT, LOCK
-
31703-753 WEARBARWEARBAR
-
41703-503 SADDLE, SKI (INC. 5)SADDLE, SKI (INC. 5)
-
50603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
60703-648 SPINDLE, STEERING (RIGHT) (INC. 7, 9)SPINDLE, STEERING (RIGHT) (INC. 7, 9)
-
60703-649 SPINDLE, STEERING (LEFT) (INC. 7, 9)SPINDLE, STEERING (LEFT) (INC. 7, 9)
-
70603-647 INSERT, SPINDLEINSERT, SPINDLE
-
80623-010 FITTING, GREASEFITTING, GREASE
-
90603-158 BEARINGBEARING
-
100623-831 CAP, SPINDLECAP, SPINDLE
-
116611-160 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
116611-161 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
120603-034 AXLE, SPINDLEAXLE, SPINDLE
-
130603-036 DAMPERDAMPER
-
140123-296 NUT, LOCKNUT, LOCK
-
150623-728 WASHERWASHER
-
160123-458 PIN, COTTERPIN, COTTER
-
170623-552 SCREW, CAPSCREW, CAP
-
188017-581 SCREW, MACHINESCREW, MACHINE
-
198048-366 NUT, LOCKNUT, LOCK
-
200603-624 HANDLE, SKIHANDLE, SKI
-
218048-426 NUT, LOCKNUT, LOCK
-
228020-135 SCREW, CAPSCREW, CAP
-
238020-143 SCREW, CAPSCREW, CAP
