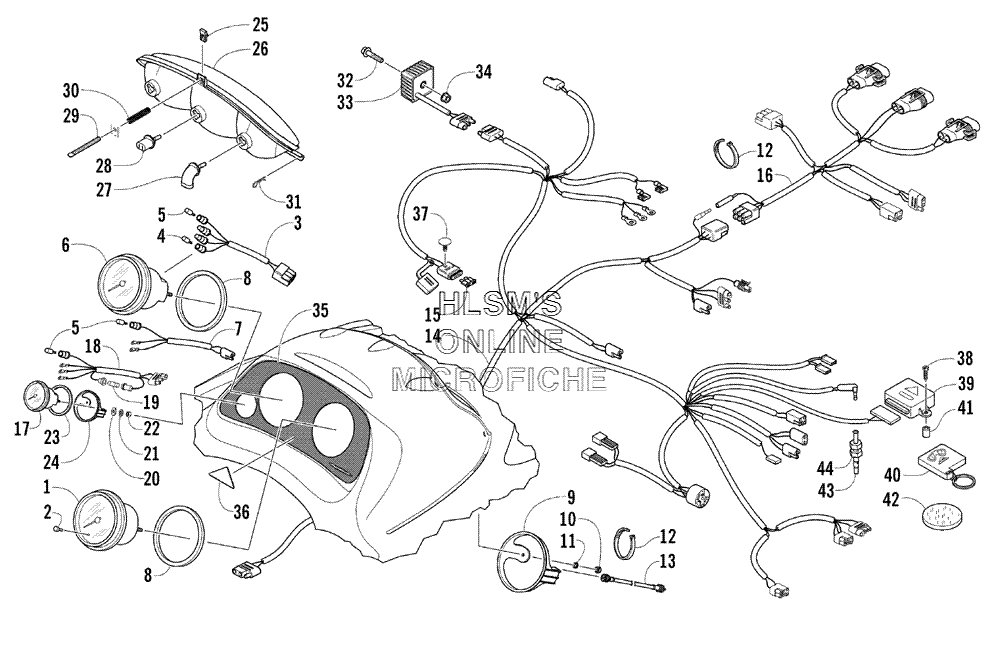

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat Pantera 600 EFI - 2005 года выпуска
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-151 HARNESS, BULB, SPEEDOMETER (INC. 4 AND ONE NO. 5)HARNESS, BULB, SPEEDOMETER (INC. 4 AND ONE NO. 5)
-
40620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-237 TACHOMETER (INC. 7 AND ONE NO. 5)TACHOMETER (INC. 7 AND ONE NO. 5)
-
70620-215 HARNESS, TACHOMETER (INC. ONE NO. 5)HARNESS, TACHOMETER (INC. ONE NO. 5)
-
80620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
90620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
100623-038 NUT W/WASHERNUT W/WASHER
-
118050-212 WASHERWASHER
-
120123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
130620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
141686-063 HARNESS, MAIN (INC. 15)HARNESS, MAIN (INC. 15)
-
150630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
160686-588 HARNESS, HOODHARNESS, HOOD
-
170620-240 GAUGE, FUEL (INC. 18, 22 AND ONE NO. 5)GAUGE, FUEL (INC. 18, 22 AND ONE NO. 5)
-
180620-218 HARNESS, FUEL GAUGE (INC. 19 AND ONE NO. 5)HARNESS, FUEL GAUGE (INC. 19 AND ONE NO. 5)
-
190630-025 FUSE, 0.5 AMPFUSE, 0.5 AMP
-
208050-122 WASHERWASHER
-
218051-122 WASHER, LOCKWASHER, LOCK
-
220623-839 NUTNUT
-
230620-139 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
240620-138 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
250623-757 NUT, UNUT, U
-
260609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
270609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
280609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
290623-467 SCREW, THUMBSCREW, THUMB
-
300623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
310623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
328020-045 SCREW, CAPSCREW, CAP
-
330630-105 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
348048-366 NUT, LOCKNUT, LOCK
-
356611-169 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
363611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
370623-589 CLIP, RETAININGCLIP, RETAINING
-
380623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
390630-149 MODULE, CONTROL, REMOTE STARTERMODULE, CONTROL, REMOTE STARTER
-
400630-146 CONTROL REMOTECONTROL REMOTE
-
410670-210 SPACERSPACER
-
420623-078 DISC, VELCRODISC, VELCRO
-
430630-148 SWITCH, HOOD, REMOTE STARTERSWITCH, HOOD, REMOTE STARTER
-
448042-426 NUTNUT
