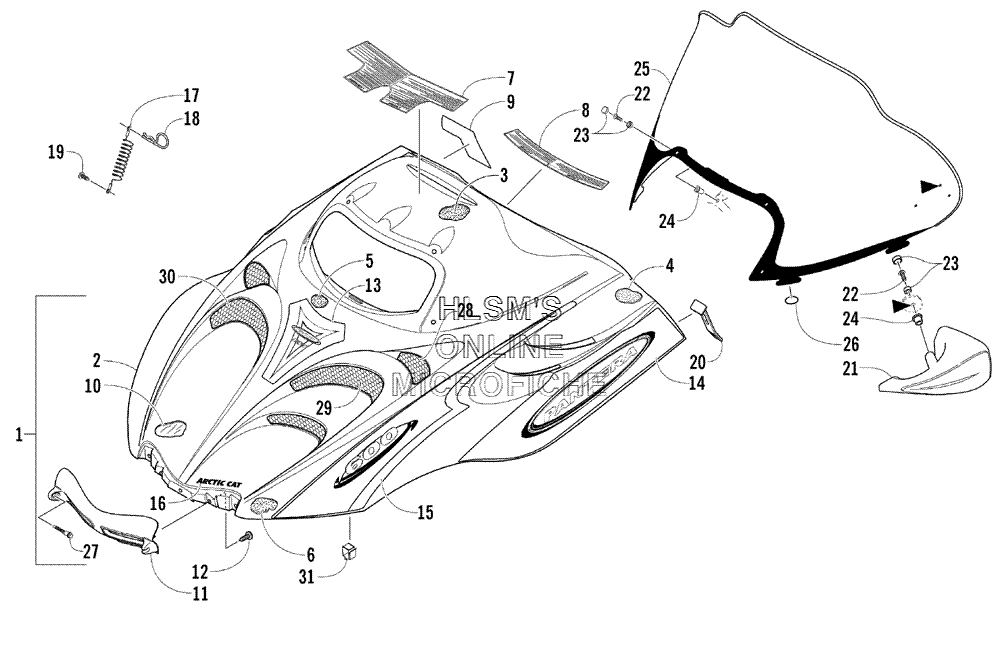

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Pantera 600 EFI - 2005 года выпуска
-
№АртикулНазвание
-
11718-613 HOOD W/DECALS (INC. 2, 16)HOOD W/DECALS (INC. 2, 16)
-
21718-634 HOOD W/O DECALS (INC. 3, 12)HOOD W/O DECALS (INC. 3, 12)
-
30717-148 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30717-149 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-146 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40717-147 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60717-140 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60717-141 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-580 DECAL REVERSEDECAL REVERSE
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
112606-614 HINGE, HOODHINGE, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
136611-170 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
146611-166 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
146611-167 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
156611-164 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
156611-165 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
166611-171 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
172606-247 CABLE, HOODCABLE, HOOD
-
180623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
190623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
201606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
212639-477 MIRROR, KIT (INC. SIX NO. 22, 24)MIRROR, KIT (INC. SIX NO. 22, 24)
-
220623-902 SCREW, MACHINESCREW, MACHINE
-
230124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
240623-845 NUT, EXPANSIONNUT, EXPANSION
-
252606-366 WINDSHIELDWINDSHIELD
-
260616-032 O-RINGO-RING
-
271623-016 SCREW, MACHINESCREW, MACHINE
-
282706-409 SCREEN, VENT, HOOD (UPPER/LEFT)SCREEN, VENT, HOOD (UPPER/LEFT)
-
292706-407 SCREEN, VENT, HOOD (LEFT)SCREEN, VENT, HOOD (LEFT)
-
302706-408 SCREEN, VENT, HOOD (RIGHT)SCREEN, VENT, HOOD (RIGHT)
-
310123-394 CLIP, RETAININGCLIP, RETAINING
