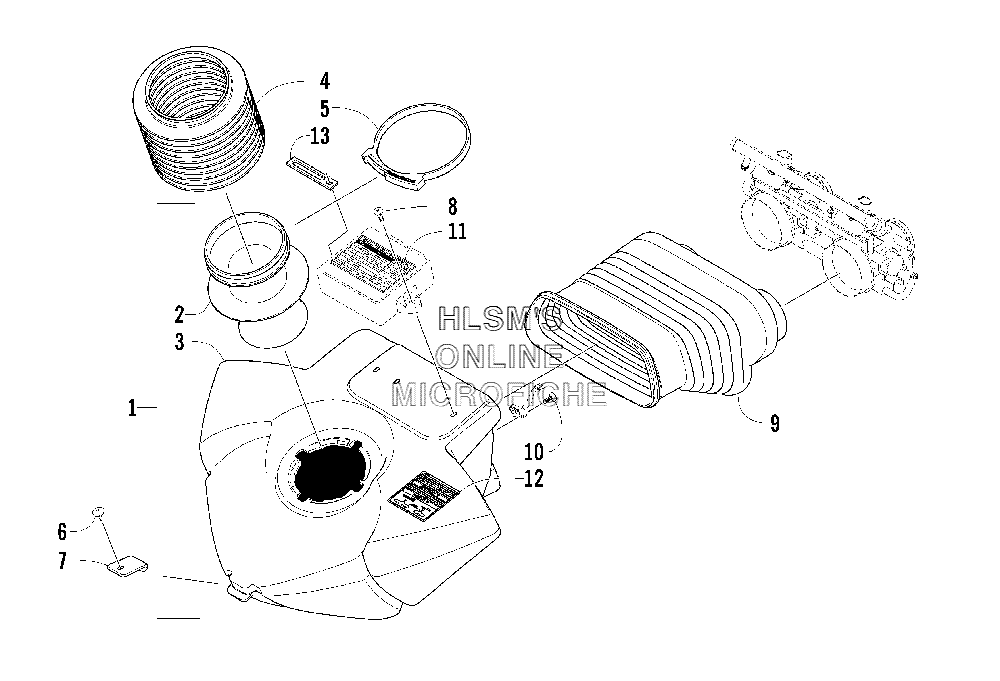

AIR SILENCER ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10770-620 SILENCER, AIR, ASSEMBLY (INC. 2, 3)SILENCER, AIR, ASSEMBLY (INC. 2, 3)
-
21670-473 INTAKE, AIRINTAKE, AIR
-
31670-621 SILENCER, AIRSILENCER, AIR
-
41670-514 CONNECTOR, AIR, INTAKECONNECTOR, AIR, INTAKE
-
51623-132 CLAMP, AIR, INTAKE CONNECTORCLAMP, AIR, INTAKE CONNECTOR
-
61623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
73606-146 HOLD, DOWN, AIR SILENCERHOLD, DOWN, AIR SILENCER
-
81623-204 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
91670-584 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
100623-165 CLIP, RETAININGCLIP, RETAINING
-
115611-619 DECAL, ECUDECAL, ECU
-
123611-403 DECAL, FUEL DESIGNATIONDECAL, FUEL DESIGNATION
-
133002-964 CLAMP, WIRECLAMP, WIRE
