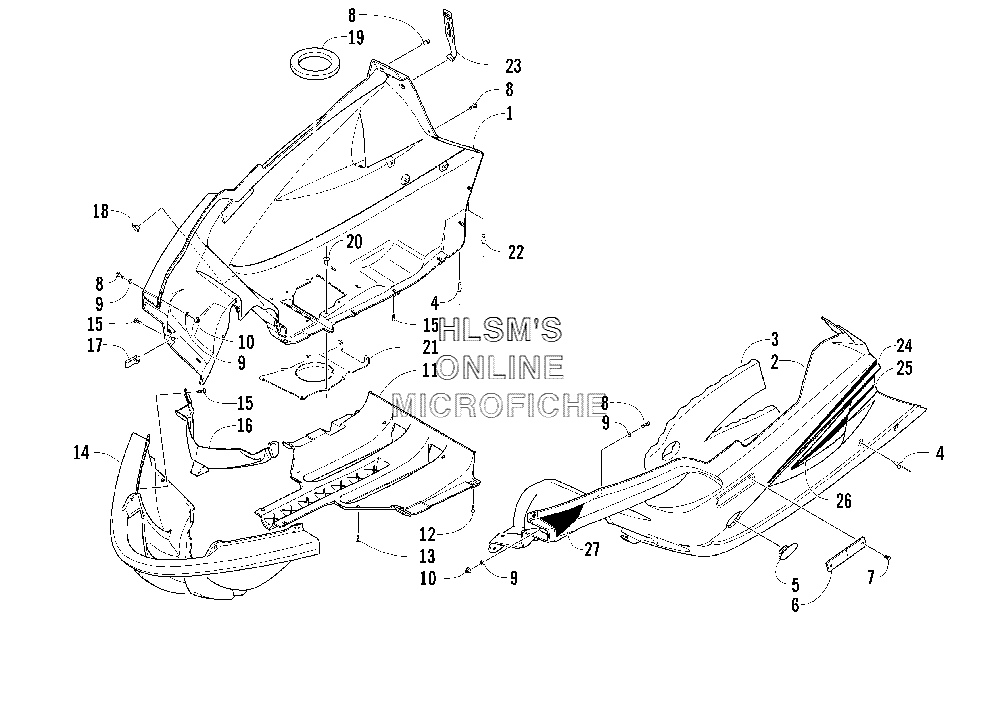

BELLY PAN ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
12606-646 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
22606-647 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-443 FOAM, BELLY PANFOAM, BELLY PAN
-
48061-708 RIVETRIVET
-
52606-650 PANEL, ACCESS, DRIVE CLUTCHPANEL, ACCESS, DRIVE CLUTCH
-
60606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
70623-269 CLIP, RETAININGCLIP, RETAINING
-
88017-581 SCREW, MACHINESCREW, MACHINE
-
98050-217 WASHERWASHER
-
108040-366 NUT, LOCKNUT, LOCK
-
113606-085 BELLY PAN, CENTERBELLY PAN, CENTER
-
121623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
143606-086 BUMPER, FRONTBUMPER, FRONT
-
150623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
162606-911 SCREEN, CENTER BELLY PANSCREEN, CENTER BELLY PAN
-
171623-030 NUT, SPEEDNUT, SPEED
-
183606-050 PIN, RESONATOR MOUNTINGPIN, RESONATOR MOUNTING
-
191612-603 SEAL, EXHAUSTSEAL, EXHAUST
-
208061-508 RIVETRIVET
-
211612-686 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
228061-710 RIVETRIVET
-
232606-624 STRAP, HOLDDOWNSTRAP, HOLDDOWN
-
246611-068 DECAL, BELLY PAN (UPPER/RIGHT)DECAL, BELLY PAN (UPPER/RIGHT)
-
246611-069 DECAL, BELLY PAN (UPPER/LEFT)DECAL, BELLY PAN (UPPER/LEFT)
-
256611-074 DECAL, BELLY PAN, VENT (REAR/RIGHT)DECAL, BELLY PAN, VENT (REAR/RIGHT)
-
256611-075 DECAL, BELLY PAN, VENT (REAR/LEFT)DECAL, BELLY PAN, VENT (REAR/LEFT)
-
266611-072 DECAL, BELLY PAN, VENT (FRONT/RIGHT)DECAL, BELLY PAN, VENT (FRONT/RIGHT)
-
266611-073 DECAL, BELLY PAN, VENT (FRONT/LEFT)DECAL, BELLY PAN, VENT (FRONT/LEFT)
