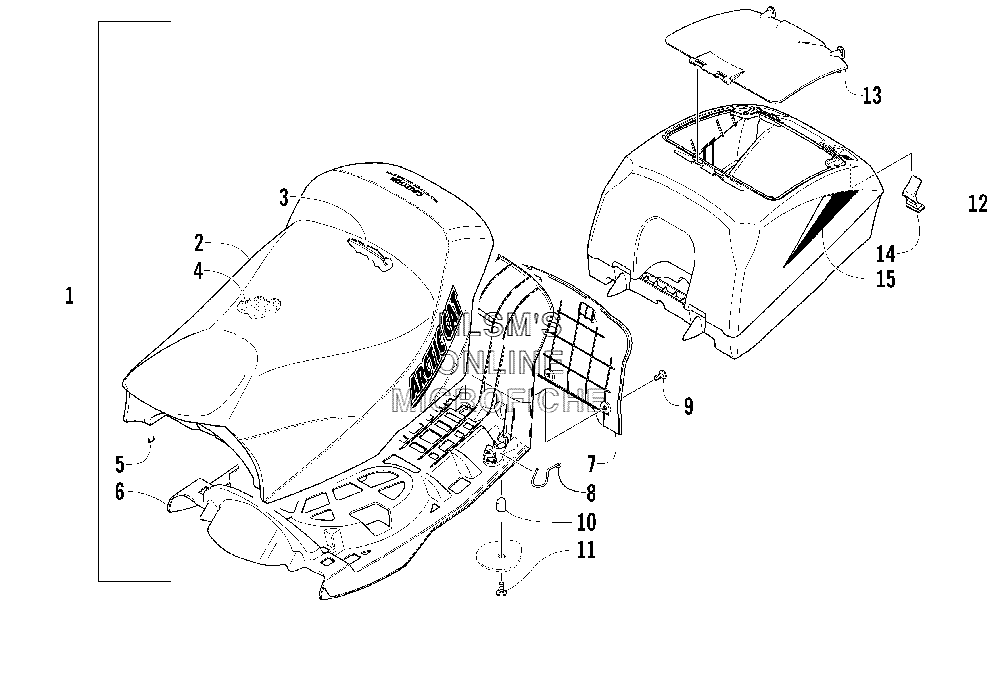

SEAT AND STORAGE BOX ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
17997-993 COMPLETE SEAT ASSEMBLY (INC. 2, 9)COMPLETE SEAT ASSEMBLY (INC. 2, 9)
-
22706-668 COVER, SEAT (INC. 3)COVER, SEAT (INC. 3)
-
33606-369 WIRE, SEATWIRE, SEAT
-
40717-176 FOAM, SEATFOAM, SEAT
-
50624-528 STAPLESTAPLE
-
63606-056 BASE, SEATBASE, SEAT
-
73606-248 PANEL, SEATPANEL, SEAT
-
81623-177 CLIP, RETAININGCLIP, RETAINING
-
91623-158 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
101623-138 LATCH, SEATLATCH, SEAT
-
118017-667 SCREW, MACHINESCREW, MACHINE
-
123606-074 BOX, STORAGE (INC. 13, 14)BOX, STORAGE (INC. 13, 14)
-
133606-072 COVER, STORAGE BOXCOVER, STORAGE BOX
-
143606-357 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
156611-078 DECAL, STORAGE BOX (RIGHT)DECAL, STORAGE BOX (RIGHT)
-
156611-079 DECAL, STORAGE BOX (LEFT)DECAL, STORAGE BOX (LEFT)
