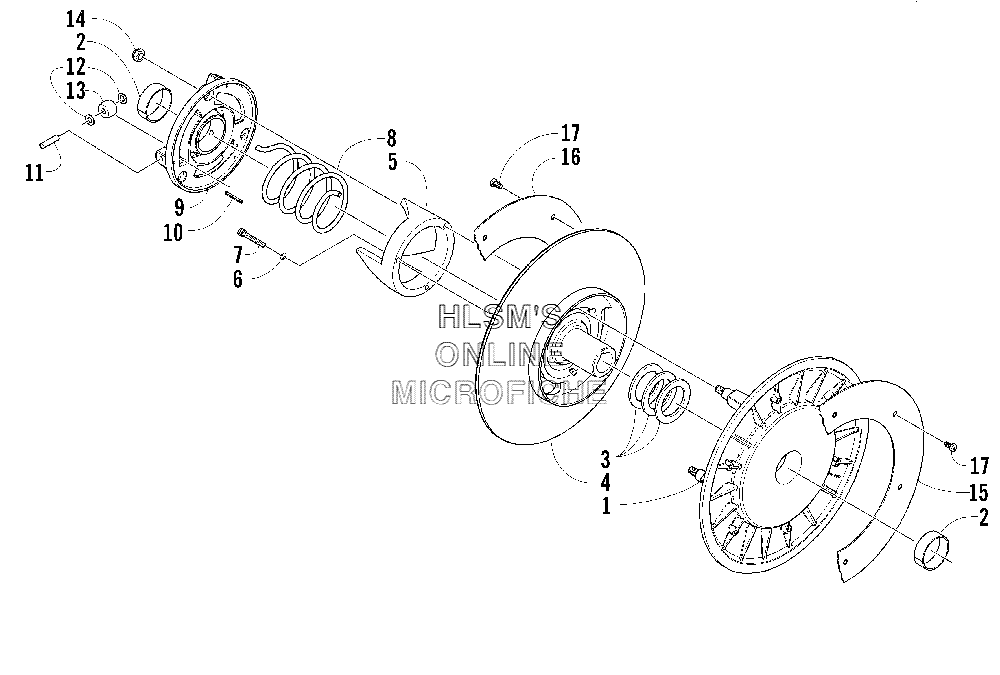

DRIVEN CLUTCH для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
-0726-182 DRIVEN CLUTCH ASSEMBLYDRIVEN CLUTCH ASSEMBLY
-
10748-023 SHEAVE, MOVABLE (INC. ONE NO. 2)SHEAVE, MOVABLE (INC. ONE NO. 2)
-
20648-009 BEARINGBEARING
-
30148-198 WASHER, THRUST: 0.030 IN.WASHER, THRUST: 0.030 IN.
-
30148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
40748-588 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
50648-002 BRACKET, TORQUE, 53°BRACKET, TORQUE, 53°
-
50148-222 BRACKET, TORQUE, 51° (OVER 5, 000 FT ALT.)BRACKET, TORQUE, 51° (OVER 5, 000 FT ALT.)
-
68051-152 WASHER, LOCKWASHER, LOCK
-
78005-404 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
80748-025 SPRING, DRIVEN CLUTCH, CAT (GREEN)SPRING, DRIVEN CLUTCH, CAT (GREEN)
-
90748-589 PLATE, ROLLER, ASSEMBLY (INC. ONE NO. 2 AND 10, 13)PLATE, ROLLER, ASSEMBLY (INC. ONE NO. 2 AND 10, 13)
-
108070-224 PIN, SPRINGPIN, SPRING
-
110648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
120648-431 WASHER, SPRINGWASHER, SPRING
-
120648-082 WASHER, THRUST, CAM ROLLERWASHER, THRUST, CAM ROLLER
-
130648-079 ROLLER, CAMROLLER, CAM
-
148040-426 NUT, LOCKNUT, LOCK
-
150148-224 COVER, MOVABLE SHEAVECOVER, MOVABLE SHEAVE
-
160148-225 COVER, STATIONARY SHEAVECOVER, STATIONARY SHEAVE
-
170623-914 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
