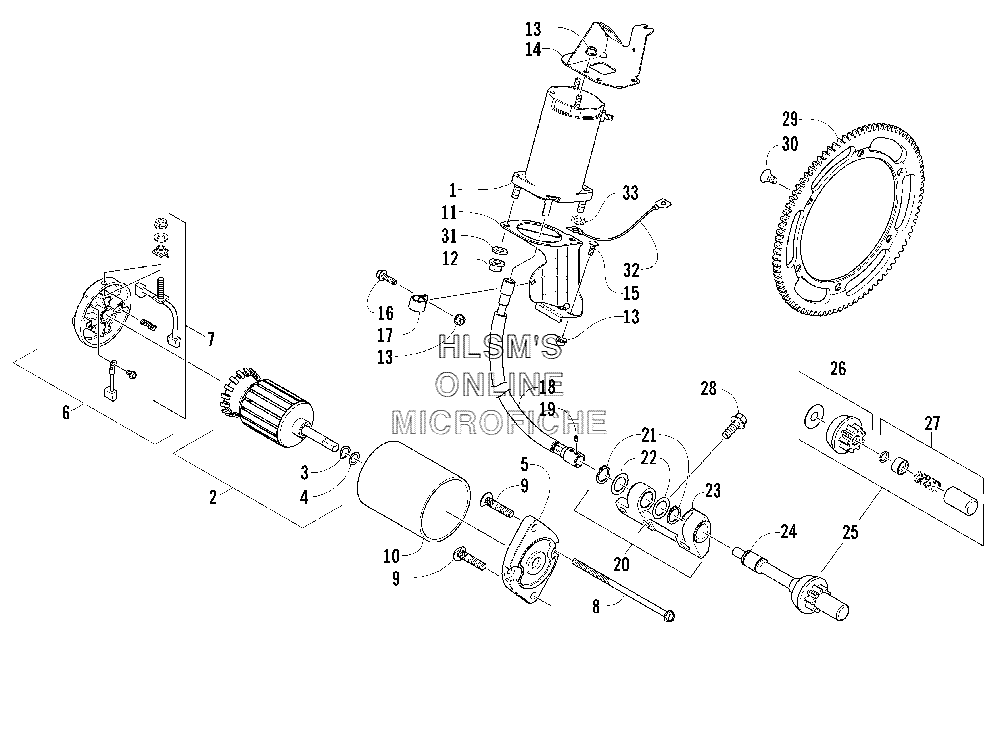

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
-3639-966 ELECTRIC START KITELECTRIC START KIT
-
10745-143 MOTOR, STARTER (INC. 2, 10)MOTOR, STARTER (INC. 2, 10)
-
20645-296 ARMATURE ASSEMBLY (INC. 3, 4)ARMATURE ASSEMBLY (INC. 3, 4)
-
30645-131 WASHER, WAVEWASHER, WAVE
-
40645-293 WASHER, THRUSTWASHER, THRUST
-
50645-297 CAP, DRIVECAP, DRIVE
-
60645-313 CAP, COMMUTATOR (INC. 7)CAP, COMMUTATOR (INC. 7)
-
70645-275 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
80645-128 THROUGH, BOLTTHROUGH, BOLT
-
90623-093 BOLT, RIBBEDBOLT, RIBBED
-
110745-207 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
128048-426 NUT, LOCKNUT, LOCK
-
138048-366 NUT, LOCKNUT, LOCK
-
140745-260 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
158011-039 BOLT, CARRIAGEBOLT, CARRIAGE
-
168020-040 SCREW, CAPSCREW, CAP
-
171623-080 CLAMP, FLEX, DRIVE SHAFTCLAMP, FLEX, DRIVE SHAFT
-
180745-221 SHAFT, FLEX, DRIVE (INC. 19)SHAFT, FLEX, DRIVE (INC. 19)
-
190623-891 SCREW, SET, SOCKETSCREW, SET, SOCKET
-
200745-208 BRACKET, PINION DRIVE, ASSEMBLY (INC. 21, 27)BRACKET, PINION DRIVE, ASSEMBLY (INC. 21, 27)
-
210645-382 RING, SNAPRING, SNAP
-
220645-429 WASHER, THRUSTWASHER, THRUST
-
230745-165 BRACKET, PINION DRIVEBRACKET, PINION DRIVE
-
240745-170 DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 25, 27)DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 25, 27)
-
250745-224 PINION DRIVE ASSEMBLY KIT (INC. 26, 27)PINION DRIVE ASSEMBLY KIT (INC. 26, 27)
-
260645-380 PINION DRIVE ASSEMBLYPINION DRIVE ASSEMBLY
-
270645-186 PINION STOPPER ASSEMBLYPINION STOPPER ASSEMBLY
-
288026-131 SCREW, CAPSCREW, CAP
-
290645-367 RING GEARRING GEAR
-
301623-128 SCREW, MACHINE, SOCKET HEADSCREW, MACHINE, SOCKET HEAD
-
310123-053 WASHERWASHER
-
321686-124 WIRE, GROUNDWIRE, GROUND
-
338053-212 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
