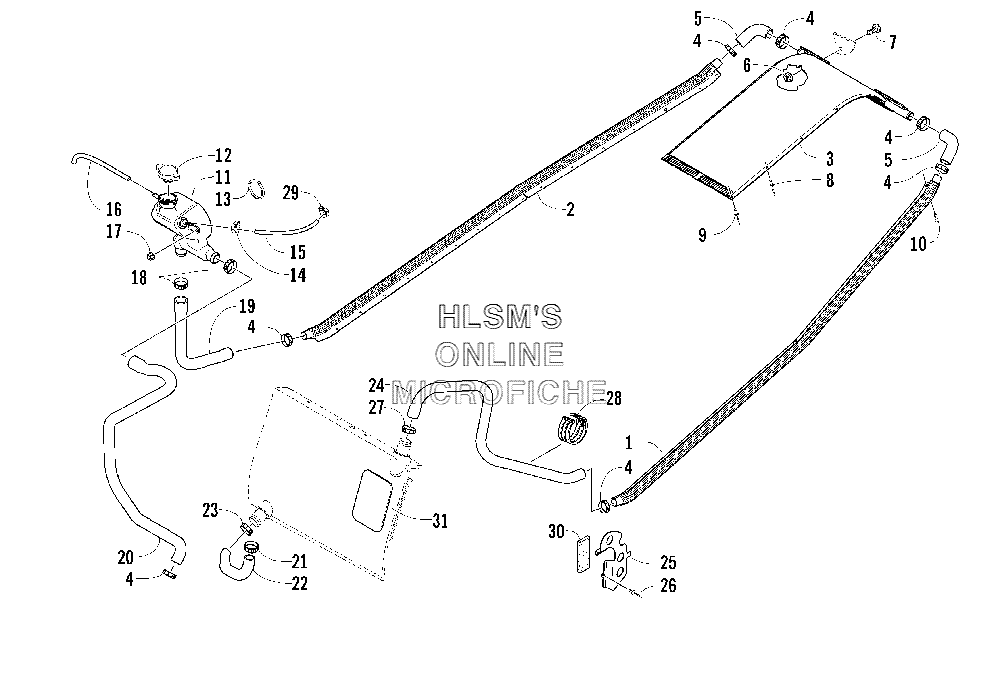

COOLING ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
12706-559 HEAT EXCHANGER TUBE (LEFT)HEAT EXCHANGER TUBE (LEFT)
-
22706-558 HEAT EXCHANGER TUBE (RIGHT)HEAT EXCHANGER TUBE (RIGHT)
-
32706-522 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
41623-229 CLAMP, HOSECLAMP, HOSE
-
50610-567 HOSE, COOLANT, REAR HEAT EXCHANGERHOSE, COOLANT, REAR HEAT EXCHANGER
-
68041-246 NUT, LOCKNUT, LOCK
-
78017-397 SCREW, MACHINESCREW, MACHINE
-
88060-504 RIVETRIVET
-
91623-405 RIVETRIVET
-
101623-061 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
113606-349 TANK, COOLANTTANK, COOLANT
-
120606-268 CAP, FILLER NECKCAP, FILLER NECK
-
130123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
140623-063 CLAMP, HOSECLAMP, HOSE
-
150610-538 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
160610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
160610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
178048-366 NUT, LOCKNUT, LOCK
-
181623-092 CLAMP, HOSECLAMP, HOSE
-
190610-571 HOSE, COOLANT TUBE/COOLANT TANK (RIGHT)HOSE, COOLANT TUBE/COOLANT TANK (RIGHT)
-
200610-573 HOSE, COOLANT, COOLANT TANK/ENGINEHOSE, COOLANT, COOLANT TANK/ENGINE
-
211623-048 CLAMP, HOSECLAMP, HOSE
-
220610-648 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
231623-186 CLAMP, HOSECLAMP, HOSE
-
240610-570 HOSE, COOLANT, FRONT HEAT EXCHANGER/LEFT TUBEHOSE, COOLANT, FRONT HEAT EXCHANGER/LEFT TUBE
-
253606-354 PROTECTOR, HOSEPROTECTOR, HOSE
-
260623-166 RIVETRIVET
-
271623-187 CLAMP, HOSECLAMP, HOSE
-
280623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
290124-045 CLAMP, HOSECLAMP, HOSE
-
300406-288 PADPAD
