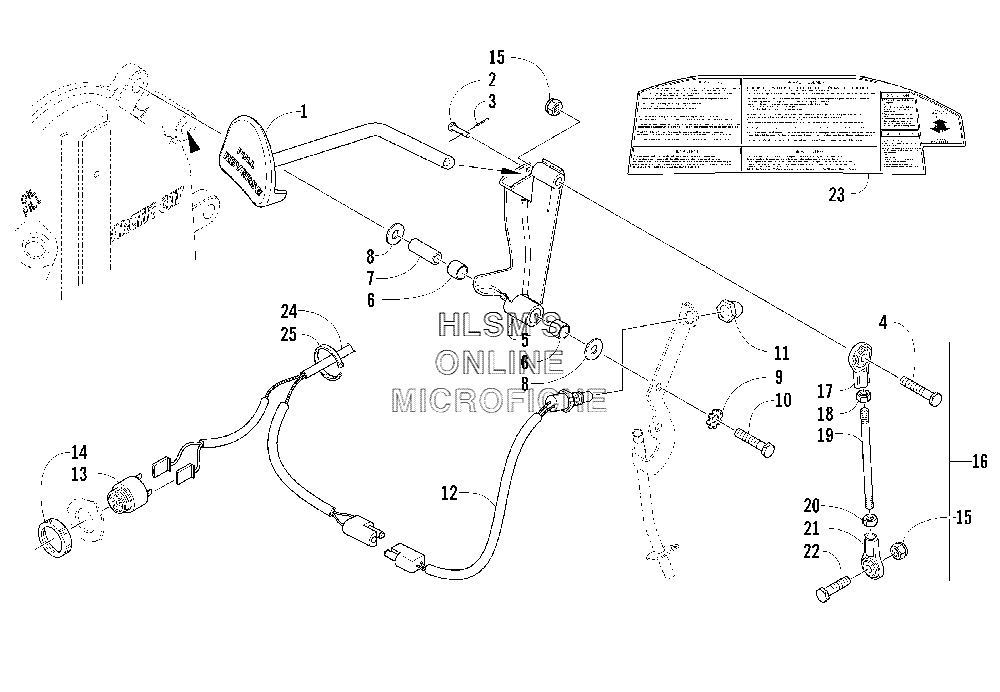

REVERSE SHIFT LEVER ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
11602-429 LEVERLEVER
-
20623-641 PIN, CLEVISPIN, CLEVIS
-
30117-868 PIN, COTTERPIN, COTTER
-
48002-137 SCREW, CAPSCREW, CAP
-
50702-500 SHIFT PIVOT (INC. 6)SHIFT PIVOT (INC. 6)
-
60602-844 BUSHINGBUSHING
-
70602-853 AXLEAXLE
-
88050-247 WASHERWASHER
-
98053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
108002-140 SCREW, CAPSCREW, CAP
-
110630-013 BOOT, SWITCHBOOT, SWITCH
-
120630-011 SWITCH, ALARMSWITCH, ALARM
-
130630-010 ALARM, REVERSE (INC. 14)ALARM, REVERSE (INC. 14)
-
140630-017 RING, RETAININGRING, RETAINING
-
158040-426 NUT, LOCKNUT, LOCK
-
160702-499 LINKAGE, SHIFTING, ASSEMBLY (INC. 17, 21)LINKAGE, SHIFTING, ASSEMBLY (INC. 17, 21)
-
170602-305 ROD END (LEFT)ROD END (LEFT)
-
180623-260 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
200123-144 NUT, JAM (RIGHT)NUT, JAM (RIGHT)
-
210602-322 ROD END (RIGHT)ROD END (RIGHT)
-
228002-132 SCREW, CAPSCREW, CAP
-
250123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
