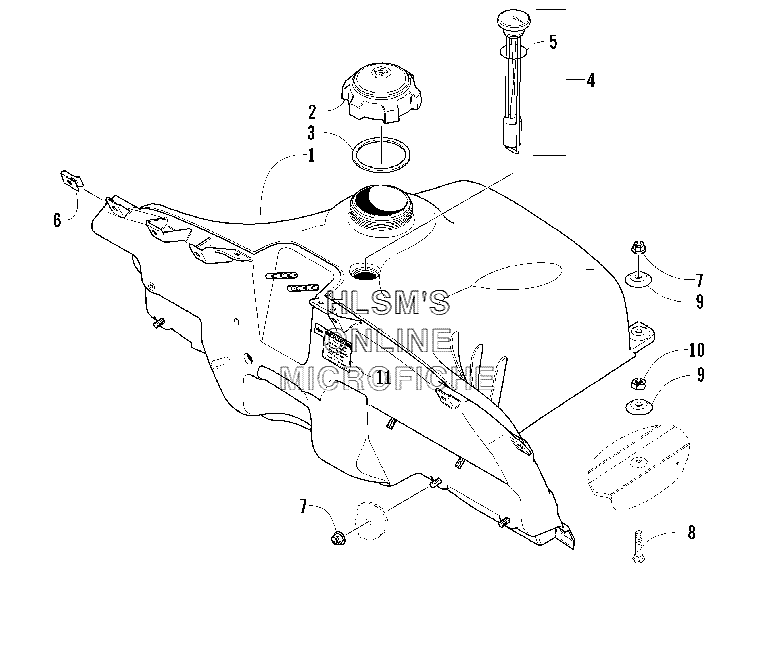

GAS TANK ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10770-628 TANK, GAS (INC. 2, 5)TANK, GAS (INC. 2, 5)
-
21670-447 CAP, GAS TANK (INC. 3)CAP, GAS TANK (INC. 3)
-
31670-511 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
41670-523 GAUGE, GAS W/SEAL (INC. 5)GAUGE, GAS W/SEAL (INC. 5)
-
50470-400 SEAL, GAS GAUGESEAL, GAS GAUGE
-
60623-427 U, NUTU, NUT
-
78048-366 NUT, FLANGENUT, FLANGE
-
88011-041 BOLT, CARRIAGEBOLT, CARRIAGE
-
90123-765 WASHER, CUPWASHER, CUP
-
108041-366 NUT, LOCKNUT, LOCK
-
115611-861 DECAL, CAUTION, REMOTE STARTDECAL, CAUTION, REMOTE START
