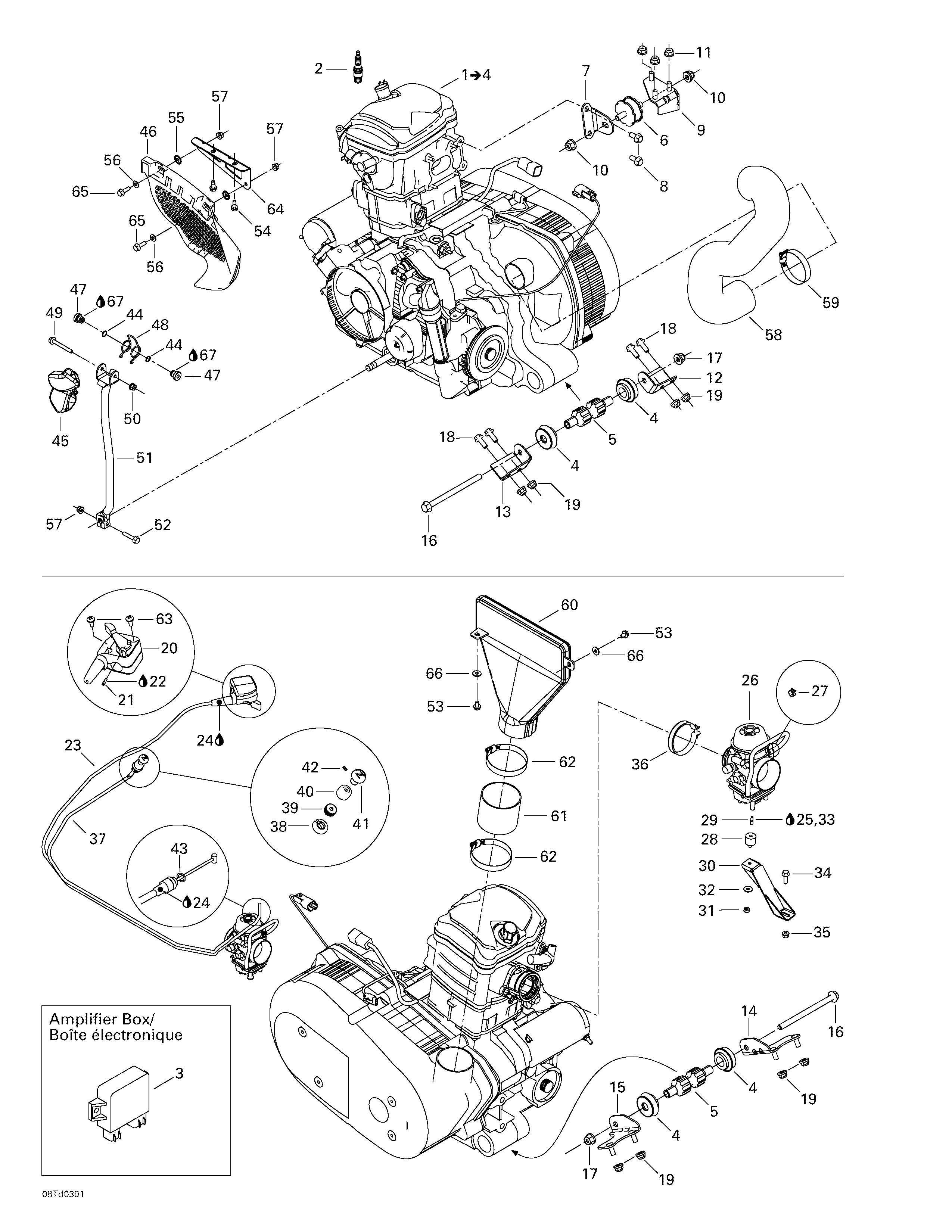

01- Engine And Engine Support для BRP Quest 650 - 2003

№

Артикул

Название
1

707000289 Rotax 4 strokes engine ''514''. Includes 1 - 4. 2 X 4 Quest STD 500.

Rotax 4 strokes engine ''514''. Includes 1 - 4. 2 X 4 Quest STD 500.

0 ₽
707000100 Rotax 4 strokes engine ''610''. Quest STD 650. Quest XT 650.

Rotax 4 strokes engine ''610''. Quest STD 650. Quest XT 650.

0 ₽
707000216 Rotax 4 strokes engine ''514''. 4 X 4 Quest STD 500.

Rotax 4 strokes engine ''514''. 4 X 4 Quest STD 500.

0 ₽
2

707000246 Spark plug

Spark plug

360 ₽
3

711265820 Amplifier box

Amplifier box

0 ₽
4

707000094 Anti vibration mount

Anti vibration mount

3 310 ₽
5

707000019 Bushing support

Bushing support

7 430 ₽
6

707000174 Mount rubber

Mount rubber

9 940 ₽
7

707000159 Engine support

Engine support

1 150 ₽
8

207581646 Hex flanged screw M8 x 16 (scotch grip)

Hex flanged screw M8 x 16 (scotch grip)

740 ₽
9

707000161 Engine bracket

Engine bracket

2 650 ₽
10

233201414 Hex elastic flanged nut M10

Hex elastic flanged nut M10

810 ₽
11

233281414 Hex elastic flanged nut M8

Hex elastic flanged nut M8

490 ₽
12

707000132 L.h. engine bracket

L.h. engine bracket

1 820 ₽
13

707000101 R.h. engine bracket

R.h. engine bracket

1 730 ₽
14

707000207 R.h. engine bracket

R.h. engine bracket

1 580 ₽
15

707000210 L.h. engine bracket

L.h. engine bracket

1 580 ₽
16

230604044 Hex elastic flanged screw M10 x 140

Hex elastic flanged screw M10 x 140

310 ₽
17

233201414 Hex elastic flanged nut M10

Hex elastic flanged nut M10

810 ₽
18

207682044 Hex elastic flanged screw M8 x 20

Hex elastic flanged screw M8 x 20

390 ₽
19

233281414 Hex elastic flanged nut M8

Hex elastic flanged nut M8

490 ₽
20

709400016 Throttle handle

Throttle handle

6 720 ₽
21

250000017 Socket screw set M5 x 20 (scotch grip)

Socket screw set M5 x 20 (scotch grip)

260 ₽
22

293800061 Loctite 18398, 20 g

Loctite 18398, 20 g

0 ₽
23

707000097 Throttle cable

Throttle cable

7 740 ₽
24

293600041 Cable lubricant, 400 g

Cable lubricant, 400 g

1 820 ₽
25

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
26

707200181 Mukini carburetor BSR42-7. Quest STD 500.

Mukini carburetor BSR42-7. Quest STD 500.

69 120 ₽
707200186 Mukini carburetor BSR42-8. Quest STD 650. Quest XT 650.

Mukini carburetor BSR42-8. Quest STD 650. Quest XT 650.

81 190 ₽
27

414420700 Spring clamp

Spring clamp

270 ₽
28

707000248 Anti-vibration mount

Anti-vibration mount

1 820 ₽
29

707000250 Threaded insert

Threaded insert

1 820 ₽
30

707000252 Support

Support

2 810 ₽
31

212000006 Hex elastic nut 10-32

Hex elastic nut 10-32

150 ₽
32

391301600 Washer

Washer

50 ₽
33

413708300 Glue tube, loctite 454, 20 g

Glue tube, loctite 454, 20 g

7 330 ₽
34

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
35

233261414 Hex elastic flanged nut M6

Hex elastic flanged nut M6

490 ₽
36

512059062 Clamp

Clamp

0 ₽
37

707000264 Choke cable

Choke cable

0 ₽
38

707000067 D'' shape washer```

D'' shape washer```

660 ₽
39

707000087 Holder cap

Holder cap

500 ₽
40

707000088 Rrubber cap

Rrubber cap

990 ₽
41

707000089 Button

Button

520 ₽
42

250000108 Screw M3 x 5

Screw M3 x 5

100 ₽
43

293300075 O-ring

O-ring

660 ₽
44

293300081 O-ring

O-ring

90 ₽
45

705500282 Handle shifter. Quest STD 650. Quest XT 650. .

Handle shifter. Quest STD 650. Quest XT 650. .

3 670 ₽
46

707000139 Transmission guide. Quest STD 650. Quest XT 650. .

Transmission guide. Quest STD 650. Quest XT 650. .

4 470 ₽
47

707000205 Pivot sleeve

Pivot sleeve

1 240 ₽
48

705500283 Lever spring

Lever spring

1 600 ₽
49

207665044 Hex flanged screw M6 x 50

Hex flanged screw M6 x 50

1 450 ₽
50

233261414 Hex elastic flanged nut M6

Hex elastic flanged nut M6

490 ₽
51

707000169 Lower lever

Lower lever

8 100 ₽
52

207663044 Hex flanged screw M6 x 30

Hex flanged screw M6 x 30

0 ₽
53

210261080 Hex flanged screw M6 x 10

Hex flanged screw M6 x 10

280 ₽
54

210261680 Hex flanged screw M6 x 16

Hex flanged screw M6 x 16

280 ₽
55

250200000 Serrated lock washer M6

Serrated lock washer M6

0 ₽
56

224061121 Flat washer

Flat washer

190 ₽
57

233261414 Hex elastic flanged nut M6

Hex elastic flanged nut M6

490 ₽
58

707000152 Air intake

Air intake

8 430 ₽
59

293650023 Tridon clamp

Tridon clamp

1 180 ₽
60

707000153 Exhaust

Exhaust

3 310 ₽
61

707000154 Flexible adaptor

Flexible adaptor

16 070 ₽
62

293650064 Tridon clamp

Tridon clamp

3 000 ₽
63

205353060 Screw M5 x 30

Screw M5 x 30

330 ₽
64

707000297 Guide support

Guide support

2 970 ₽
65

207662544 Hex flanged screw M6 x 25

Hex flanged screw M6 x 25

240 ₽
66

224061201 Flat washer

Flat washer

460 ₽
67

293550010 Synthetic Grease, 400 g

Synthetic Grease, 400 g

14 600 ₽
