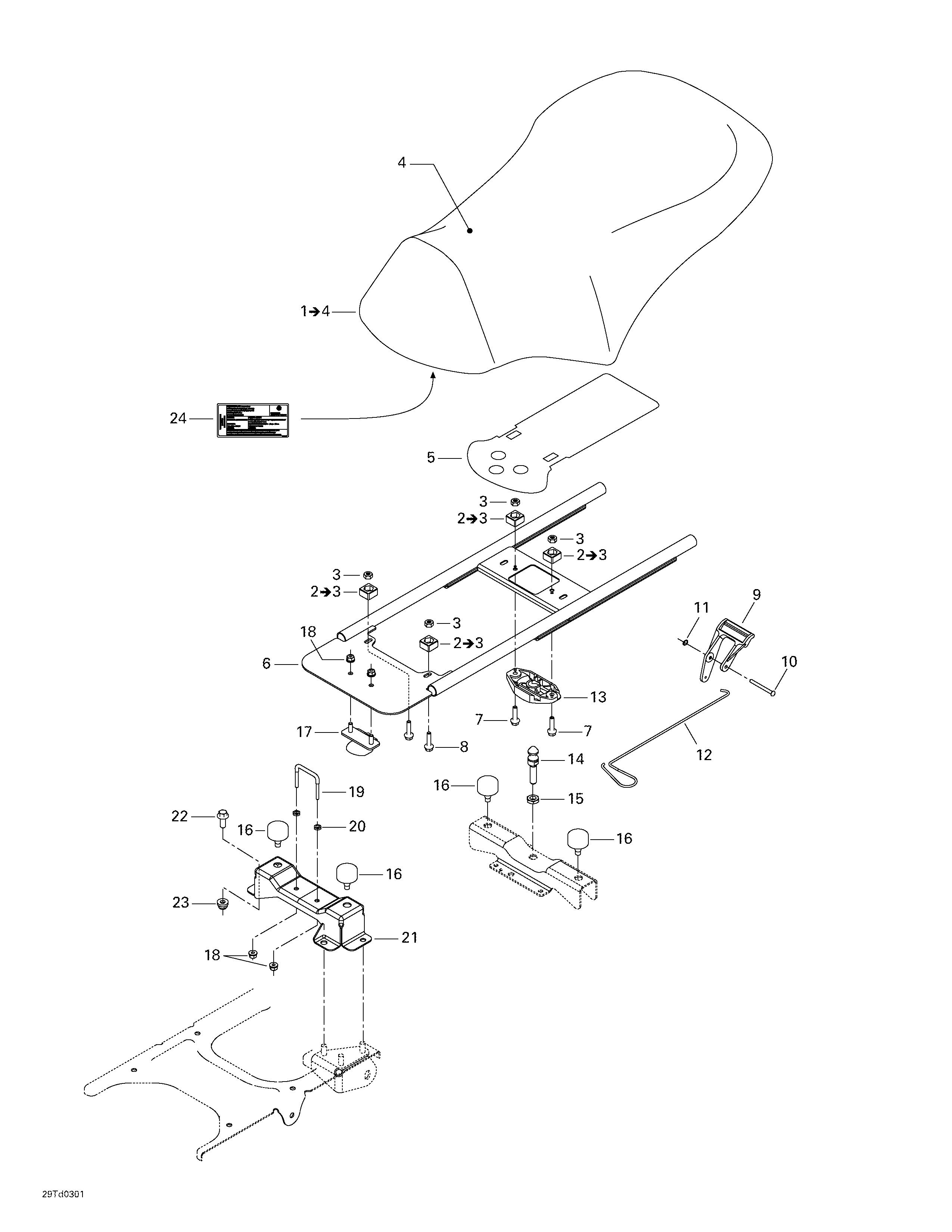

09- Seat для BRP Quest 650 - 2003

№

Артикул

Название
1

708000050 Seat ass'y. Includes 1 - 4. STD YELLOW/BLUE. STD RED/GREEN Quest STD 500. Quest STD 650.

Seat ass'y. Includes 1 - 4. STD YELLOW/BLUE. STD RED/GREEN Quest STD 500. Quest STD 650.

69 230 ₽
708000119 Seat ass'y. XT YELLOW/GREEN Quest XT 650.

Seat ass'y. XT YELLOW/GREEN Quest XT 650.

70 840 ₽
708000147 Seat ass'y. XT CAMO Quest XT 650.

Seat ass'y. XT CAMO Quest XT 650.

61 180 ₽
708000163 Seat ass'y. STD CAMO Quest STD 500. Quest STD 650.

Seat ass'y. STD CAMO Quest STD 500. Quest STD 650.

70 840 ₽
2

708000046 Nut housing. Includes 2 - 3.

Nut housing. Includes 2 - 3.

830 ₽
3

232561414 Hex elastic nut M6

Hex elastic nut M6

50 ₽
4

708000095 Seat cover. STD YELLOW/BLUE. STD RED/GREEN Quest STD 500. Quest STD 650.

Seat cover. STD YELLOW/BLUE. STD RED/GREEN Quest STD 500. Quest STD 650.

0 ₽
708000092 Seat cover. XT YELLOW/GREEN Quest XT 650.

Seat cover. XT YELLOW/GREEN Quest XT 650.

16 510 ₽
708000148 Seat cover. XT CAMO Quest XT 650.

Seat cover. XT CAMO Quest XT 650.

16 970 ₽
708000150 Seat cover. STD CAMO Quest STD 500. Quest STD 650.

Seat cover. STD CAMO Quest STD 500. Quest STD 650.

18 370 ₽
5

708000160 Reflecting sheet

Reflecting sheet

1 680 ₽
6

708000161 Seat support

Seat support

0 ₽
7

207662544 Hex flanged screw M6 x 25

Hex flanged screw M6 x 25

240 ₽
8

207661644 Hex flanged screw M6 x 16

Hex flanged screw M6 x 16

270 ₽
9

708000010 Lever latch

Lever latch

950 ₽
10

293150062 Solid rivet

Solid rivet

330 ₽
11

389804300 Push Nut

Push Nut

50 ₽
12

708000015 Spring

Spring

1 760 ₽
13

708000034 Latch base

Latch base

2 140 ₽
14

291000689 Latch stud

Latch stud

3 830 ₽
15

232100600 Hex jam nut M10

Hex jam nut M10

210 ₽
16

708000006 Rubber stopper

Rubber stopper

1 010 ₽
17

291001479 Seat hook

Seat hook

1 820 ₽
18

233261414 Hex flanged elastic nut M6

Hex flanged elastic nut M6

490 ₽
19

291000468 Seat hook

Seat hook

1 820 ₽
20

232061600 Hex nut M6

Hex nut M6

110 ₽
21

708000088 Seat support

Seat support

3 470 ₽
22

207682044 Hex flanged screw M8 x 20

Hex flanged screw M8 x 20

390 ₽
23

233281414 Hex flanged elastic screw M8

Hex flanged elastic screw M8

490 ₽
24

704900312 Emission label. Quest STD 500.

Emission label. Quest STD 500.

10 ₽
704900313 Emission label. Quest STD 650. Quest XT 650.

Emission label. Quest STD 650. Quest XT 650.

10 ₽
