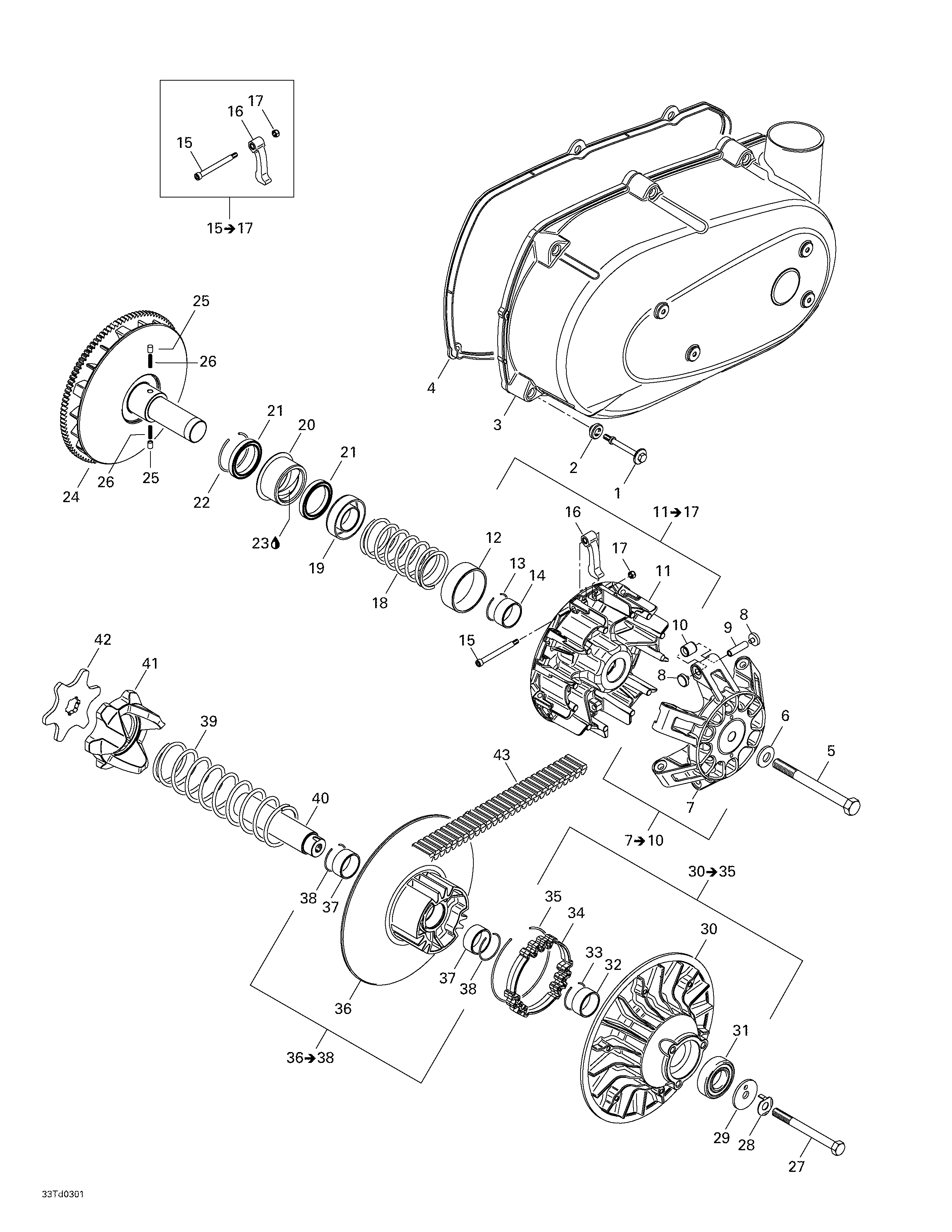

05- Belt And Engine Pulley для BRP Quest 650 - 2003
-
№АртикулНазвание
-
1711240901 Hex. Screw M6 x 47.9Hex. Screw M6 x 47.9
-
2711260050 Rubber BushingRubber Bushing
-
3711610350 Transmission CoverTransmission Cover
-
4711630110 GasketGasket
-
5711641147 Hex. Screw M12 x 135Hex. Screw M12 x 135
-
6711627760 Spring WasherSpring Washer
-
7711280155 Governor Cup Ass'y. Includes 7 - 10.Governor Cup Ass'y. Includes 7 - 10.
-
8711281290 Slider Shoe SetSlider Shoe Set
-
9420233890 Bearing SleeveBearing Sleeve
-
10420229585 Roller Thrust Ass'yRoller Thrust Ass'y
-
11711280148 Outher Half Ass'y. Includes 11 - 17. Quest 500.Outher Half Ass'y. Includes 11 - 17. Quest 500.
-
711280147 Outher Half Ass'y. Quest 650.Outher Half Ass'y. Quest 650.
-
15711248431 Centrifugal Lever Set. Includes 15 - 17. Quest 500.Centrifugal Lever Set. Includes 15 - 17. Quest 500.
-
711248408 Centrifugal Lever Set. Quest 650.Centrifugal Lever Set. Quest 650.
-
18711238161 Compression SpringCompression Spring
-
19711627573 Spring SeatSpring Seat
-
20711257194 ClutchClutch
-
21711632370 Ball BearingBall Bearing
-
22711245950 Retaining RingRetaining Ring
-
23293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
24711280169 Inner Half Ass'yInner Half Ass'y
-
25711229576 Spring SleeveSpring Sleeve
-
26711239133 SpringSpring
-
27711941906 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
28711245920 Tab WasherTab Washer
-
29711627591 Thrust WasherThrust Washer
-
30711280176 Outher Half Ass'y. Includes 30 - 35.Outher Half Ass'y. Includes 30 - 35.
-
31711932426 Ball BearingBall Bearing
-
34711660120 Torque GearTorque Gear
-
35711245910 Retaining RingRetaining Ring
-
36711280186 Inner Half Ass'y. Includes 36 - 38.Inner Half Ass'y. Includes 36 - 38.
-
39711238170 Compression SpringCompression Spring
-
40711220911 Driven ShaftDriven Shaft
-
41711280191 RampRamp
-
42711627582 PlatePlate
-
43711280200 V-BeltV-Belt
-
44293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
