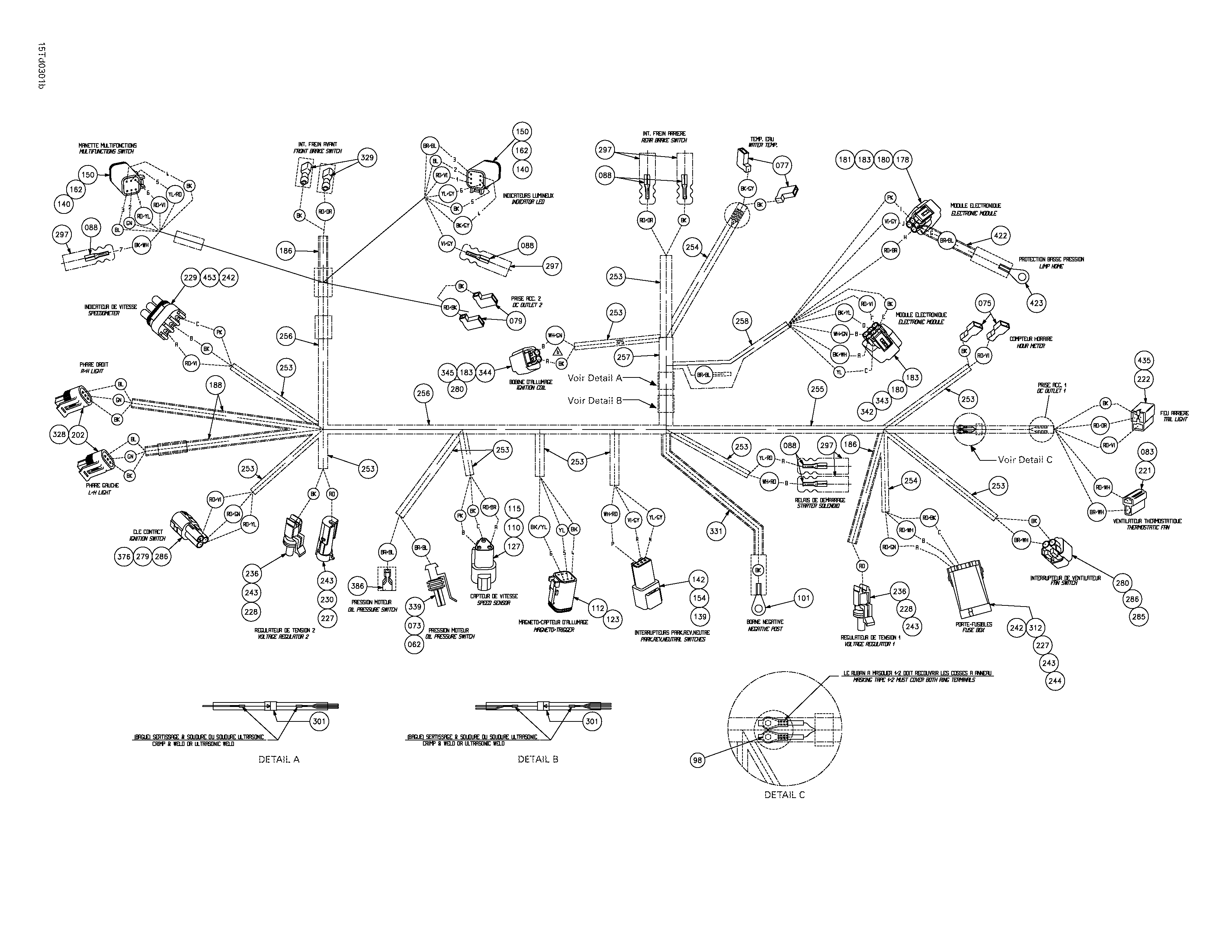

10- Main Harness для BRP Quest 650 - 2003
-
№АртикулНазвание
-
62710000348 Harness Ass'y. Includes 62 - 435.Harness Ass'y. Includes 62 - 435.
-
62278001014 Female TerminalFemale Terminal
-
73278001013 Wire SealWire Seal
-
75409010700 Female TerminalFemale Terminal
-
77409010300 Female TerminalFemale Terminal
-
79710000038 Female TerminalFemale Terminal
-
83561503100 Female TerminalFemale Terminal
-
85710000221 Female TerminalFemale Terminal
-
88278001009 Female TerminalFemale Terminal
-
92710000035 Female Housing (8 Circuits)Female Housing (8 Circuits)
-
98710000222 Open BarrelOpen Barrel
-
101278001392 Open BarrelOpen Barrel
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
115409207000 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
123278000736 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
127409207600 Male Lock (3 Circuits)Male Lock (3 Circuits)
-
139409014800 Male TerminalMale Terminal
-
140409015100 Female TerminalFemale Terminal
-
142710000044 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
150409015400 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
154710000043 (Male) Secondary Lock (3 Circuits) (Deutsch)(Male) Secondary Lock (3 Circuits) (Deutsch)
-
162409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
178710000187 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
180278001638 Female TerminalFemale Terminal
-
181710000188 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
183710000189 Joint SealJoint Seal
-
186515175332 Tubing 1/4''Tubing 1/4''
-
202278001114 Female TerminalFemale Terminal
-
221409204600 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
222409204300 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
227409004300 Male TerminalMale Terminal
-
228409007300 Female TerminalFemale Terminal
-
229278000223 Female TerminalFemale Terminal
-
230278000161 Male Housing (1 Circuits)Male Housing (1 Circuits)
-
236278000219 Female Housing (1 Circuits)Female Housing (1 Circuits)
-
242278000218 Wire SealWire Seal
-
243710000048 Wire SealWire Seal
-
244278000216 PlugPlug
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing 19 mmTubing 19 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
279409011300 Male TerminalMale Terminal
-
280409012100 Female TerminalFemale Terminal
-
285710000078 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
286409012300 SealSeal
-
297278001007 Insulated ShieldInsulated Shield
-
312710000107 Male Housing (5 Circuits)Male Housing (5 Circuits)
-
328278001467 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
329710000082 Female TerminalFemale Terminal
-
331710000244 Protector Tube 4 mmProtector Tube 4 mm
-
339278001012 Female Housing (1 Circuits)Female Housing (1 Circuits)
-
342710000190 Female Housing (5 Circuits)Female Housing (5 Circuits)
-
343710000191 Female Lock (6 Circuits)Female Lock (6 Circuits)
-
344278001637 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
345278001640 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
376710000219 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
386710000255 Female TerminalFemale Terminal
-
423710000293 Open BarrelOpen Barrel
