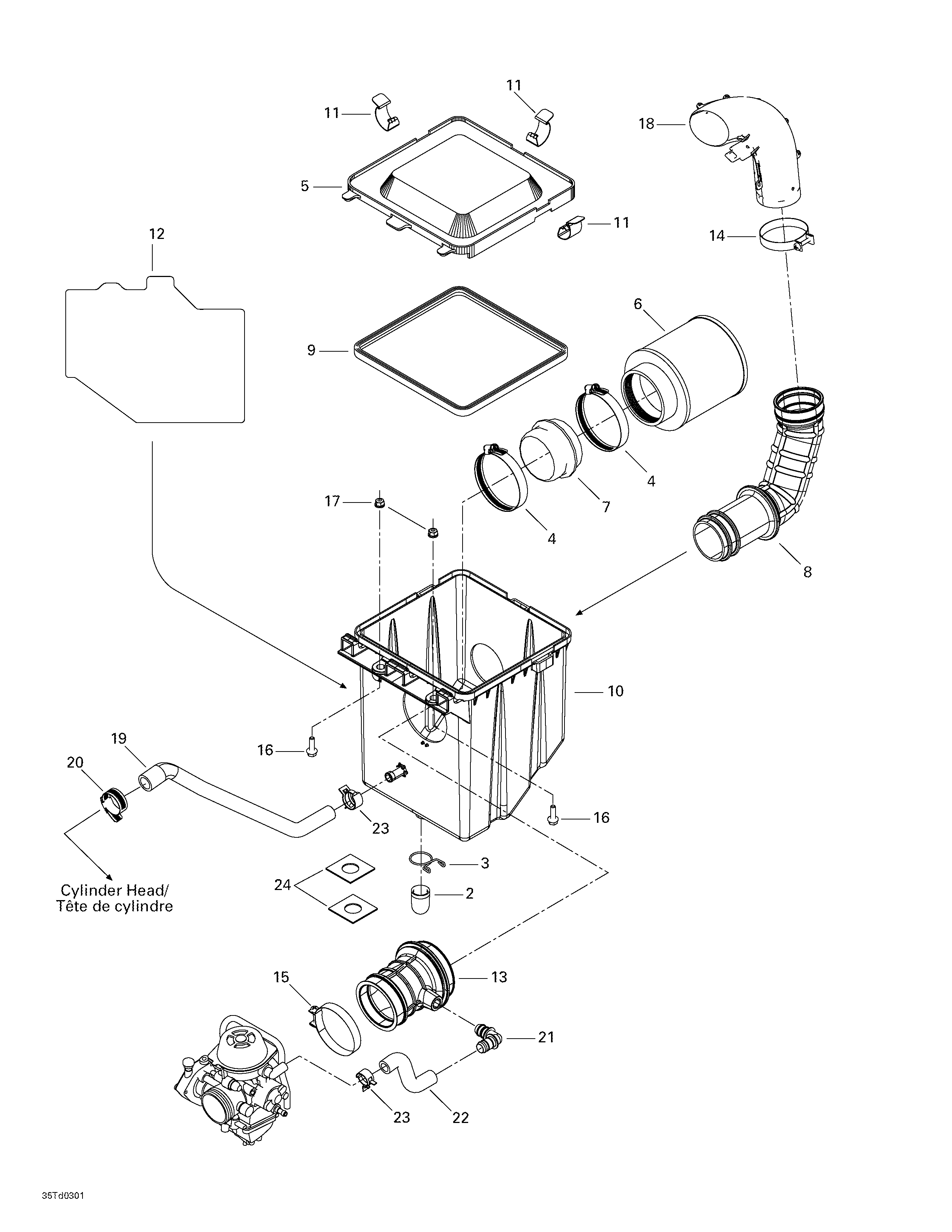

02- Air Intake Silencer для BRP Quest 650 - 2003
-
№АртикулНазвание
-
2707800080 Drain TubeDrain Tube
-
3707800081 Retainer clipRetainer clip
-
4293650107 Tridon clampTridon clamp
-
5707800017 Muffler coverMuffler cover
-
6707800072 Air filterAir filter
-
7707800077 AdaptorAdaptor
-
8707800078 Intake adaptorIntake adaptor
-
9293250113 Oil sealOil seal
-
10707800139 Silencer baseSilencer base
-
11707800079 Bracket coverBracket cover
-
12707800083 Heat protectorHeat protector
-
13707800065 Front Air intakeFront Air intake
-
14512059006 ClampClamp
-
15508000010 ClampClamp
-
16207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
17233261414 Hex elastic flanged nut M6Hex elastic flanged nut M6
-
18707800133 Rear intake hoseRear intake hose
-
20707800097 Vent hoseVent hose
-
21293650037 Tridon clampTridon clamp
-
22293710098 Elbow fittingElbow fitting
-
23707800132 Vent hoseVent hose
-
24293650110 Norma clampNorma clamp
-
25293830091 Rubber bumperRubber bumper
