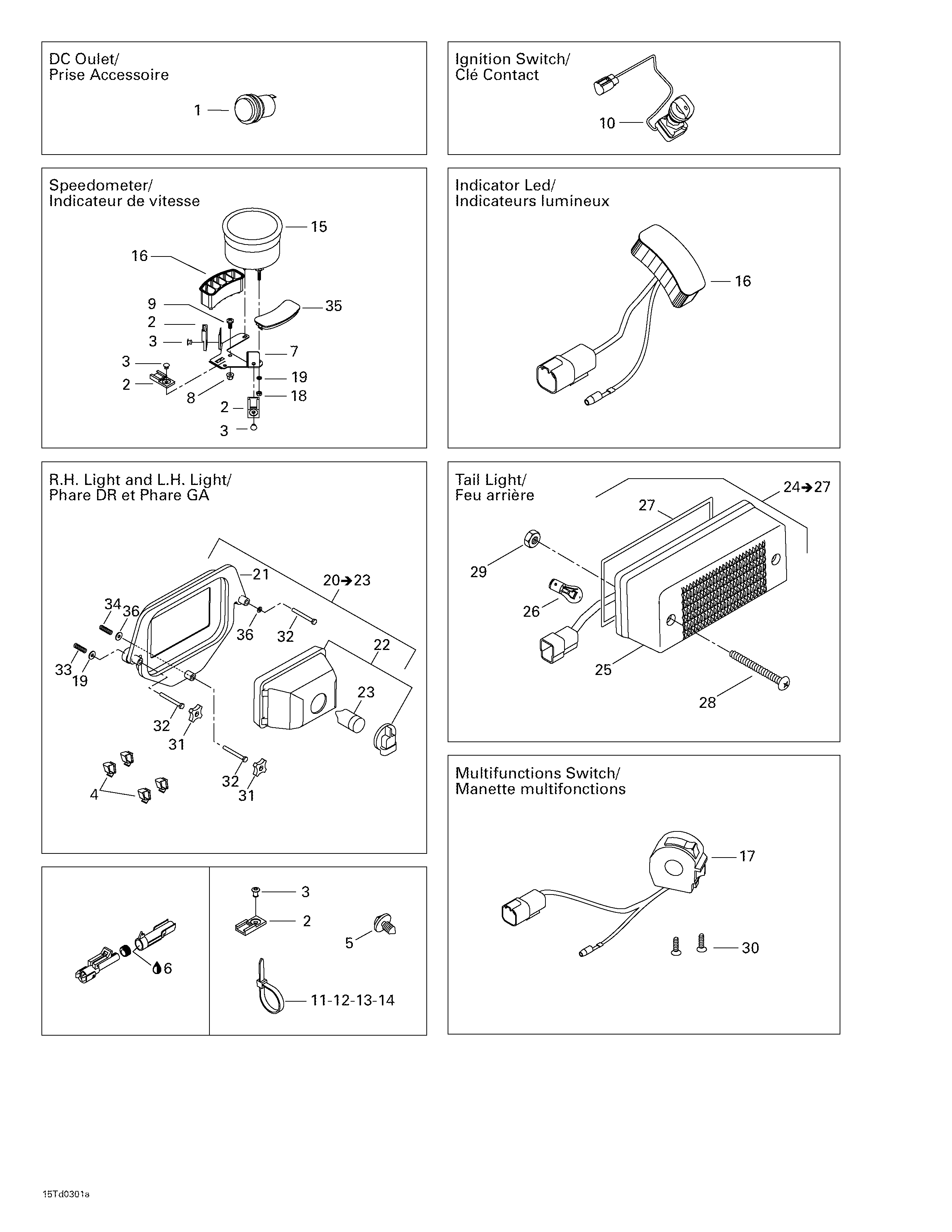

10- Electrical Accessories для BRP Quest 650 - 2003
-
№АртикулНазвание
-
1710000024 DC Outlet PlugDC Outlet Plug
-
2270000141 ClipClip
-
3390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
4414227300 ClipClip
-
5293730018 Mount DartMount Dart
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
7710000159 Housing SupportHousing Support
-
8232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
9208651241 Phillips Screw M5 x 12Phillips Screw M5 x 12
-
10710000192 Ignition SwitchIgnition Switch
-
10710000137 Blank Key (''A'' Type)Blank Key (''A'' Type)
-
10710000101 Blank Key (''B'' Type)Blank Key (''B'' Type)
-
11293750008 Tie Rap 350 mmTie Rap 350 mm
-
12293750002 Tie Rap 130 mmTie Rap 130 mm
-
13414115200 Tie Rap 180 mmTie Rap 180 mm
-
14293750001 Tie Rap 94 mmTie Rap 94 mm
-
15710000325 Speedometer (MPH/US)Speedometer (MPH/US)
-
16710000310 R.H. Warning LampR.H. Warning Lamp
-
17710000196 Multi-function SwitchMulti-function Switch
-
18211100051 NutNut
-
19234040600 Flat Washer 4 mmFlat Washer 4 mm
-
20710000174 Headlamp. Includes 20 - 23.Headlamp. Includes 20 - 23.
-
21705000283 Headlamp SupportHeadlamp Support
-
22705000284 ProtectorProtector
-
23710000176 BulbBulb
-
24710000102 Tail Lamp Housing. Includes 24 - 27.Tail Lamp Housing. Includes 24 - 27.
-
25710000055 Lens (Red)Lens (Red)
-
26410504100 Tail Lamp BulbTail Lamp Bulb
-
27710000129 GasketGasket
-
28208656091 Phillips Screw M5 x 60Phillips Screw M5 x 60
-
29233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
30205453046 Socket Head Screw M5 x 30Socket Head Screw M5 x 30
-
31572106600 HandleHandle
-
32250000008 Hex. Screw K40 x 40Hex. Screw K40 x 40
-
33710000285 SpringSpring
-
34517168600 SpringSpring
-
35709400102 Light CoverLight Cover
-
36234042600 Flat Washer 4 mmFlat Washer 4 mm
