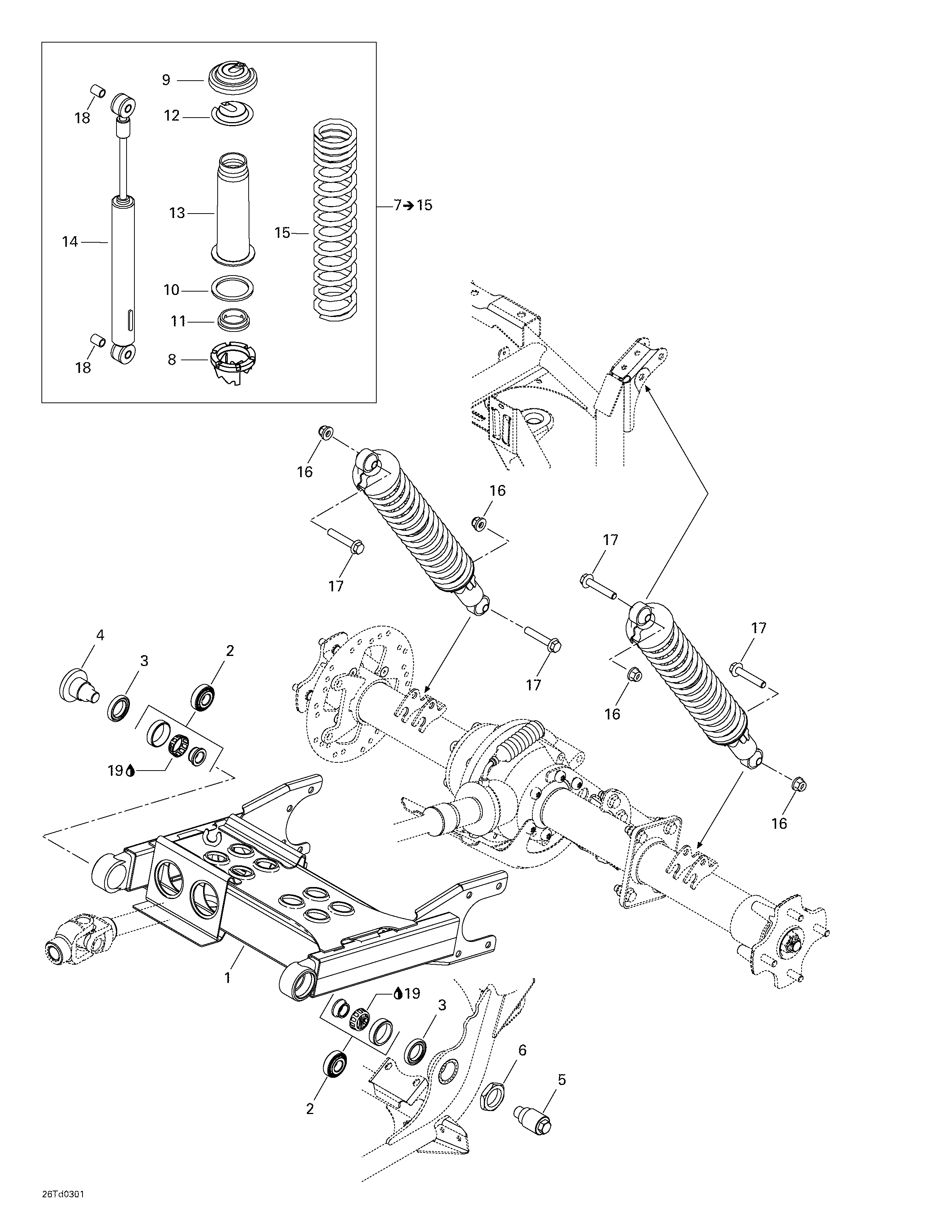

08- Rear Suspension для BRP Quest 650 - 2003
-
№АртикулНазвание
-
1706000217 Swing Arm. STD and XTSwing Arm. STD and XT
-
2706000169 Cone bearingCone bearing
-
3706000010 Oil sealOil seal
-
4706000092 R.h. pivot boltR.h. pivot bolt
-
5706000093 LH pivot boltLH pivot bolt
-
6706000006 Hex. jam nutHex. jam nut
-
8706000073 Adjuster ringAdjuster ring
-
9503140600 Spring stopperSpring stopper
-
10706000028 Ring HolderRing Holder
-
11706000007 Spring seatSpring seat
-
12503141600 CapCap
-
13503139800 ProtectorProtector
-
14706000129 Rear shockRear shock
-
15706000172 Rear spring. XT YELLOW/GREEN Quest XT 650. STD 4 COLORS Quest STD 500. Quest STD 650.Rear spring. XT YELLOW/GREEN Quest XT 650. STD 4 COLORS Quest STD 500. Quest STD 650.
-
706000244 Rear spring. STD CAMO Quest STD 500. Quest STD 650. XT CAMO Quest XT 650.Rear spring. STD CAMO Quest STD 500. Quest STD 650. XT CAMO Quest XT 650.
-
16233201414 Hex. flanged elastic nut M10Hex. flanged elastic nut M10
-
17207605544 Hex. flanged Screw M10 x 55Hex. flanged Screw M10 x 55
-
18706000146 CushionCushion
-
19293550018 Grease, therma lube, 300 mlGrease, therma lube, 300 ml
