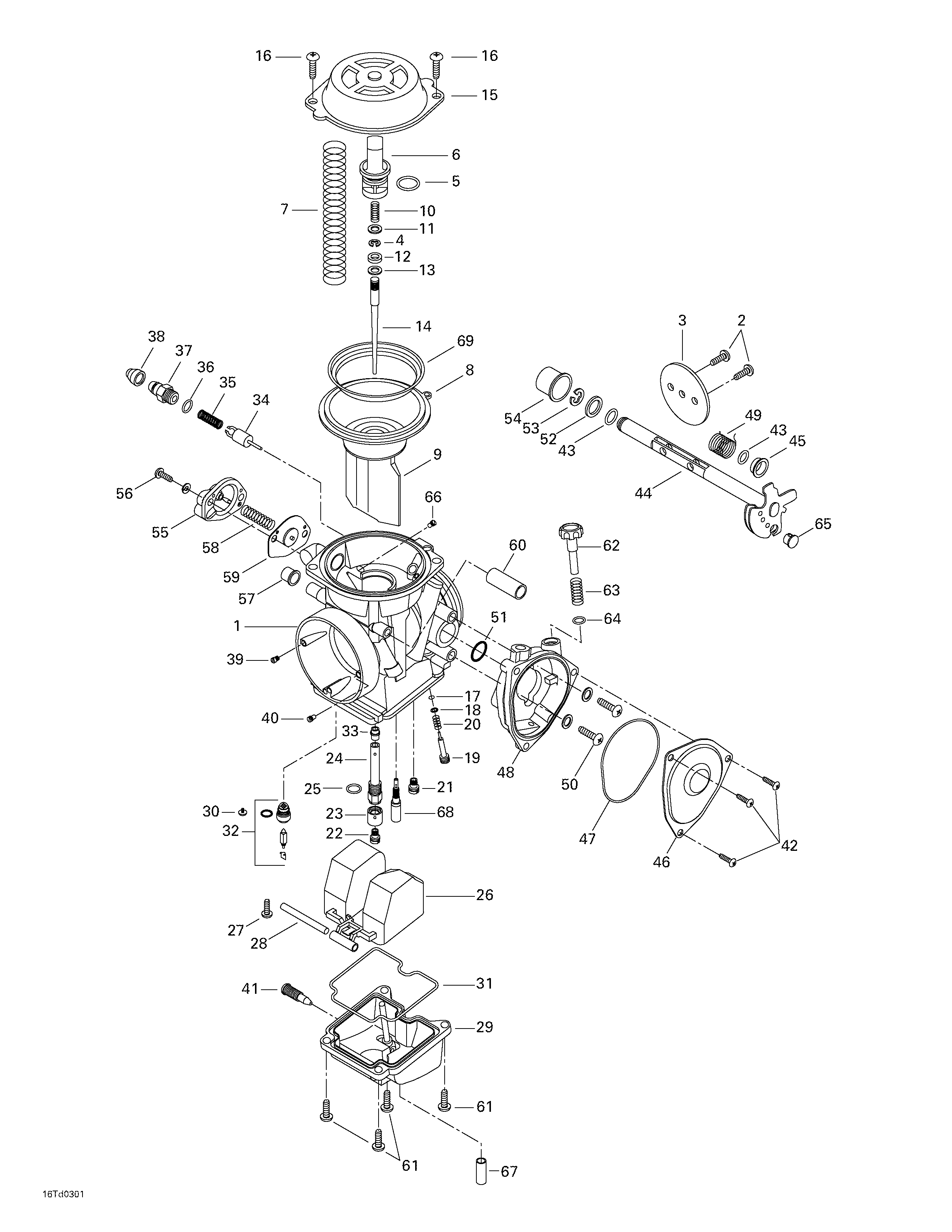

02- Carburetor для BRP Quest 650 - 2003
-
№АртикулНазвание
-
1707200181 Carburetor (Mikuni BSR42-7). Includes 1 - 68. Quest 500.Carburetor (Mikuni BSR42-7). Includes 1 - 68. Quest 500.
-
707200186 Carburetor (Mikuni BSR42-8). Quest 650.Carburetor (Mikuni BSR42-8). Quest 650.
-
4404152200 E-RingE-Ring
-
5270500144 O-RingO-Ring
-
6707200067 HolderHolder
-
7707200066 SpringSpring
-
8707200113 DiaphragmDiaphragm
-
9707200114 Piston ValvePiston Valve
-
10707200071 SpringSpring
-
11707200072 WasherWasher
-
12707200065 RingRing
-
13707200064 WasherWasher
-
14707200292 Needle J8-6DGY16-53. Quest 500.Needle J8-6DGY16-53. Quest 500.
-
707200293 Needle J8-6DGY17-53. Quest 650.Needle J8-6DGY17-53. Quest 650.
-
15707200116 Diaphragm CoverDiaphragm Cover
-
16404161903 ScrewScrew
-
17404139900 O-RingO-Ring
-
18707200018 WasherWasher
-
19707200117 AdjusterAdjuster
-
20707200078 SpringSpring
-
21404145800 Main Jet 80. Quest 500.Main Jet 80. Quest 500.
-
707200189 Main Jet 75. Quest 650.Main Jet 75. Quest 650.
-
22270500437 Main Jet 152.5Main Jet 152.5
-
23707200148 RingRing
-
24707200185 Jet HolderJet Holder
-
25270500119 O-RingO-Ring
-
26707200103 Float Ass'yFloat Ass'y
-
27404138600 ScrewScrew
-
28404123400 PinPin
-
29707200119 Float Body Ass'yFloat Body Ass'y
-
30404161861 ScrewScrew
-
31707200083 O-RingO-Ring
-
32707200192 Needle Valve 1.2Needle Valve 1.2
-
33707200166 Needle JetNeedle Jet
-
34707200176 Plunger Ass'yPlunger Ass'y
-
35707200144 SpringSpring
-
36404140200 O-RingO-Ring
-
37707200009 Holder GuideHolder Guide
-
38707200010 CapCap
-
39707200188 Pilot Jet 50Pilot Jet 50
-
40707200187 Jet 40Jet 40
-
41707200024 ScrewScrew
-
42707200091 ScrewScrew
-
46707200093 CoverCover
-
47707200092 O-RingO-Ring
-
55707200105 Cover Ass'yCover Ass'y
-
56404901400 ScrewScrew
-
57270500260 Carburetor CapCarburetor Cap
-
58707200294 Spring. Quest 500.Spring. Quest 500.
-
707200160 Spring. Quest 650.Spring. Quest 650.
-
59707200106 Diaphragm Ass'yDiaphragm Ass'y
-
60707200179 HoseHose
-
61404159300 ScrewScrew
-
62707200180 Adjuster ScrewAdjuster Screw
-
63404101700 SpringSpring
-
64707200020 O-RingO-Ring
-
65707200058 Cable GuideCable Guide
-
66707200134 Air Jet 1.3Air Jet 1.3
-
67707200041 HoseHose
-
68707200168 Pilot Jet 35. Quest 500.Pilot Jet 35. Quest 500.
-
707200136 Pilot Jet 40. Quest 650.Pilot Jet 40. Quest 650.
-
69404162023 RingRing
