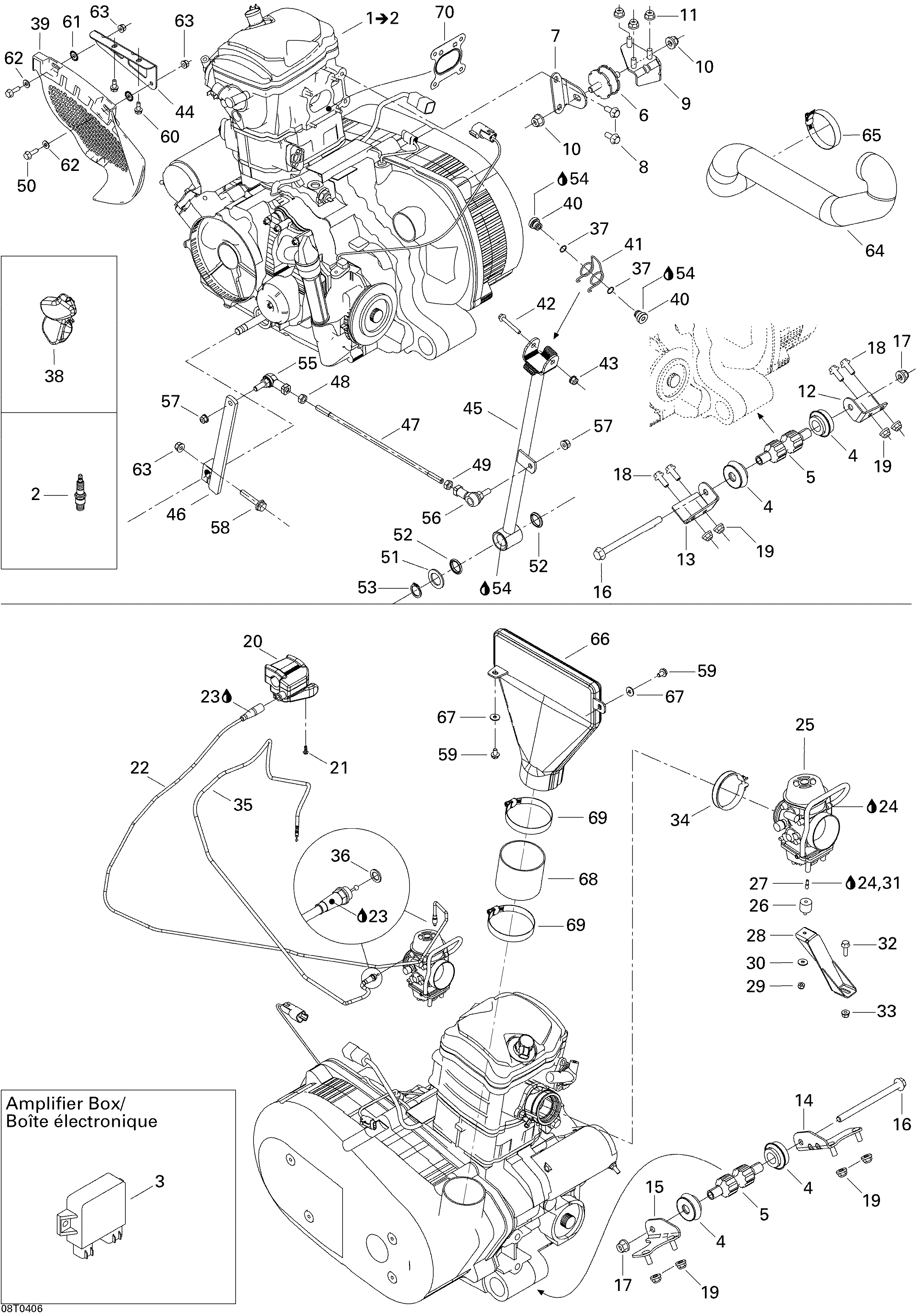

01- Engine Support для BRP Quest MAX - 2004
-
№АртикулНазвание
-
1707000344 4 Stroke Engine. Includes Items 1 to 24 Stroke Engine. Includes Items 1 to 2
-
2707000246 Spark PlugSpark Plug
-
3420265820 Amplifier BoxAmplifier Box
-
4707000094 Anti-Vibration MountAnti-Vibration Mount
-
5707000019 Engine Support BushingEngine Support Bushing
-
6707000174 Rubber MountRubber Mount
-
7707000159 Engine Support (Black)Engine Support (Black)
-
8207581646 Hex Flanged Screw M8 X 16 (Scotch Grip)Hex Flanged Screw M8 X 16 (Scotch Grip)
-
9707000161 Engine BracketEngine Bracket
-
10233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
11233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
12707000132 LH. Front Engine Bracket (Black)LH. Front Engine Bracket (Black)
-
13707000101 RH. Front Engine Bracket (Black)RH. Front Engine Bracket (Black)
-
14707000207 RH. Rear Engine BracketRH. Rear Engine Bracket
-
15707000210 LH. Rear Engine BracketLH. Rear Engine Bracket
-
16230604044 Hex Flanged Screw M10 X 140Hex Flanged Screw M10 X 140
-
17233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
18207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
19233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
20707000370 Throttle HandleThrottle Handle
-
21205052588 Socket Screw M5 X 25Socket Screw M5 X 25
-
22707000311 Throttle CableThrottle Cable
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25707200186 CarburatorCarburator
-
26707000248 A.Vibration MountA.Vibration Mount
-
27707000250 Threaded InsertThreaded Insert
-
28707000252 SupportSupport
-
29212000006 Elastic Stop NutElastic Stop Nut
-
30391301600 WasherWasher
-
31413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
-
31413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
-
32207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
33233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
34293650157 Gemi ClampGemi Clamp
-
35707000334 Choke CableChoke Cable
-
36293300075 O-RingO-Ring
-
37293300081 O-RingO-Ring
-
38705500282 Shifter HandleShifter Handle
-
39707000139 Transmission GuideTransmission Guide
-
40707000205 Pivot SleevePivot Sleeve
-
41705500283 Lever SpringLever Spring
-
42207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
43233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
44707000297 Guide Support (Black)Guide Support (Black)
-
45707000335 Lower Lever (Black)Lower Lever (Black)
-
46707000338 Lower Lever (Black)Lower Lever (Black)
-
47707000343 Threaded RodThreaded Rod
-
48232061414 Hex Nut M6Hex Nut M6
-
49232066414 LH Hex Nut M6LH Hex Nut M6
-
50207662544 Hex Flanged Screw M6 X25Hex Flanged Screw M6 X25
-
51503107800 WasherWasher
-
52293300053 O-RingO-Ring
-
53293370012 CirclipCirclip
-
54293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
55707000142 RH. Ball JointRH. Ball Joint
-
56707000143 LH Ball JointLH Ball Joint
-
57233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
58207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
59210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
60210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
61250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
62391302000 Flat WasherFlat Washer
-
63233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
64707000332 Air IntakeAir Intake
-
65293650023 Clamp TridonClamp Tridon
-
66707000153 ExhaustExhaust
-
67224061201 Flat WasherFlat Washer
-
68707000154 Flexible AdaptorFlexible Adaptor
-
69293650064 Tridon ClampTridon Clamp
-
70420950680 GasketGasket
