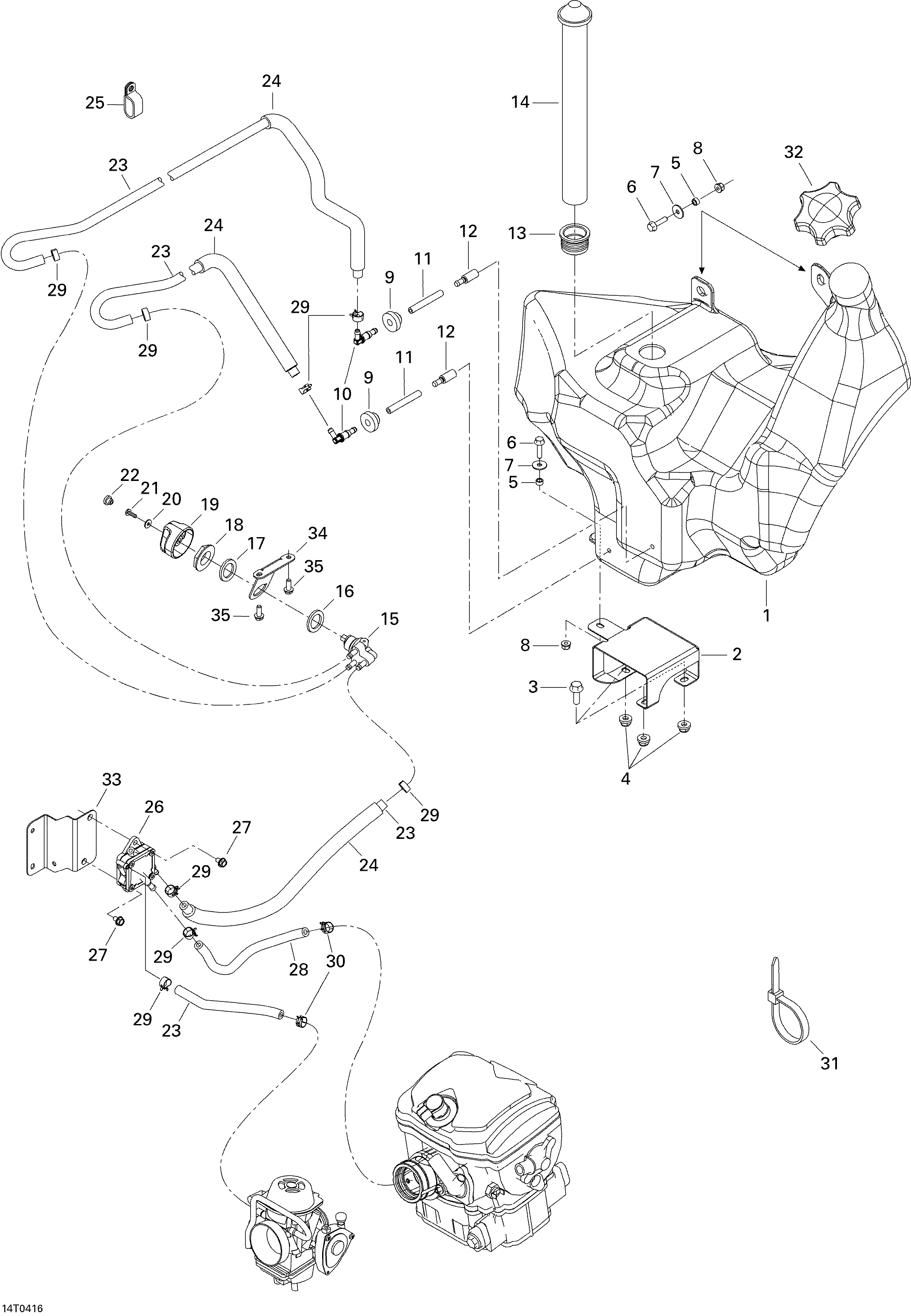

02- Fuel System для BRP Quest MAX - 2004
-
№АртикулНазвание
-
1709000035 Fuel TankFuel Tank
-
2709000039 Fuel Tank SupportFuel Tank Support
-
3207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
4233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
5293900029 BushingBushing
-
6207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
7224061201 Flat WasherFlat Washer
-
8233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
9570045500 GrommetGrommet
-
10414580600 Elbow Male ConnectorElbow Male Connector
-
11415080200 Fuel LineFuel Line
-
12414865700 Fuel FilterFuel Filter
-
13293720058 Fuel Gauge GrommetFuel Gauge Grommet
-
14709000078 Fuel GaugeFuel Gauge
-
15275500098 Fuel ValveFuel Valve
-
16293250004 GasketGasket
-
17250200015 WasherWasher
-
18212100009 Hex Plastic NutHex Plastic Nut
-
19275500263 Fuel Valve Knob (Black)Fuel Valve Knob (Black)
-
20234040600 Flat Washer 4 mmFlat Washer 4 mm
-
21208640860 Pan Head Phillips Screw M4 X 8Pan Head Phillips Screw M4 X 8
-
22275500241 Fuel Cap Valve Plug (Black)Fuel Cap Valve Plug (Black)
-
23415079800 Hose 1/4''Hose 1/4''
-
24409901800 Tubing 13 mmTubing 13 mm
-
25709000057 Open ClampOpen Clamp
-
26707200000 Fuel PumpFuel Pump
-
27210261040 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
28709000047 Formed HoseFormed Hose
-
29293650042 Oetiker ClampOetiker Clamp
-
30414415200 Spring ClampSpring Clamp
-
31293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
31414115200 Tie-RapTie-Rap
-
32709000059 Fuel CapFuel Cap
-
33709000040 Pump SupportPump Support
-
34709000070 Valve SupportValve Support
-
35210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
