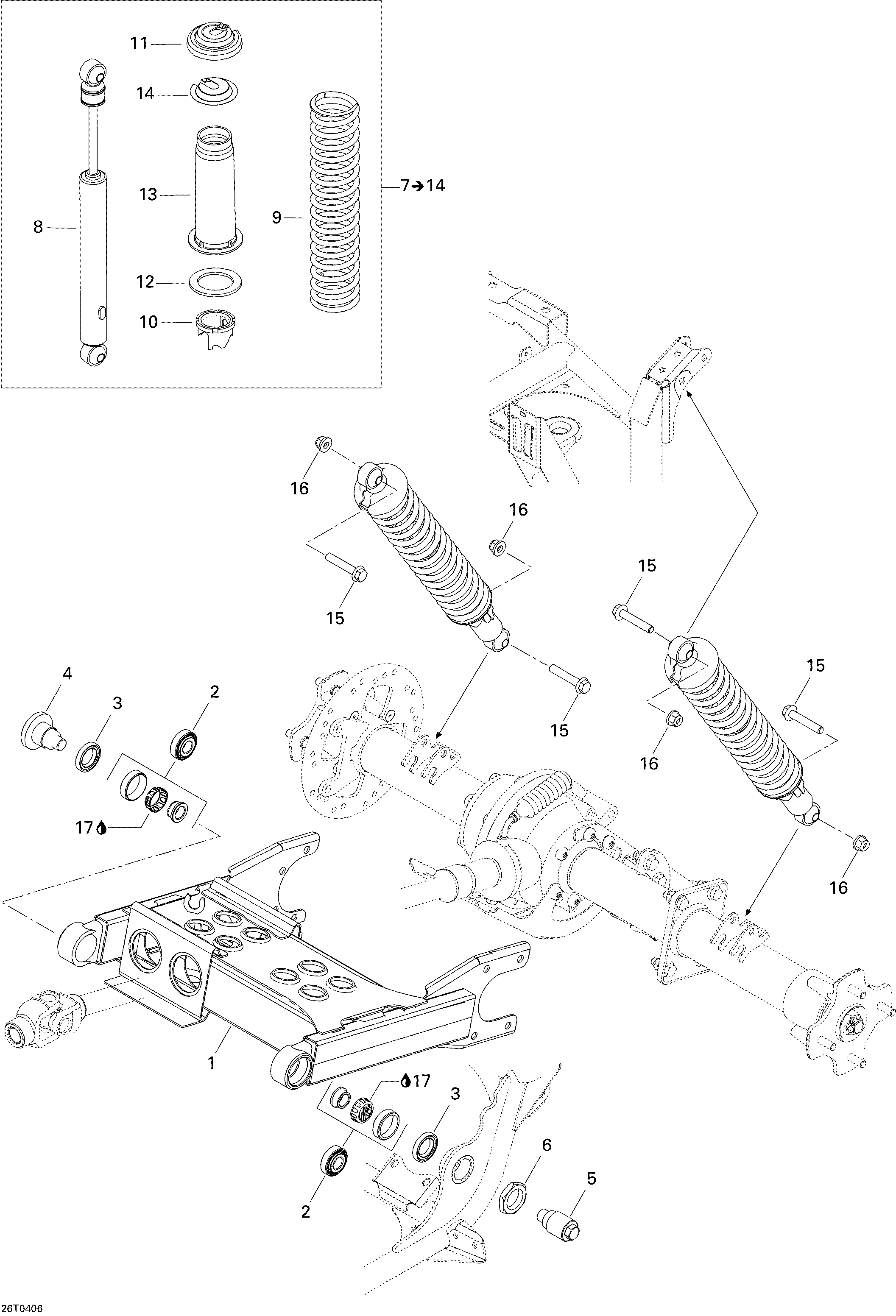

08- Rear Suspension для BRP Quest MAX - 2004
-
№АртикулНазвание
-
1706000298 Swing Arm (Black)Swing Arm (Black)
-
2706000169 Cone BearingCone Bearing
-
3706000010 Oil SealOil Seal
-
4706000092 RH Pivot BoltRH Pivot Bolt
-
5706000093 LH Pivot BoltLH Pivot Bolt
-
6706000006 Hex Jam NutHex Jam Nut
-
8706000328 Rear ShockRear Shock
-
9706000306 Rear Spring (Yellow)Rear Spring (Yellow)
-
9706000309 Rear Spring (Black)Rear Spring (Black)
-
10706000317 Ring AdjusterRing Adjuster
-
11503140600 Spring StopperSpring Stopper
-
12706000335 Spring SeatSpring Seat
-
13706000032 ProtectorProtector
-
14503141600 CapCap
-
15207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
16233201414 Hex Elastic Flanged Nut M10Hex Elastic Flanged Nut M10
-
17293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
