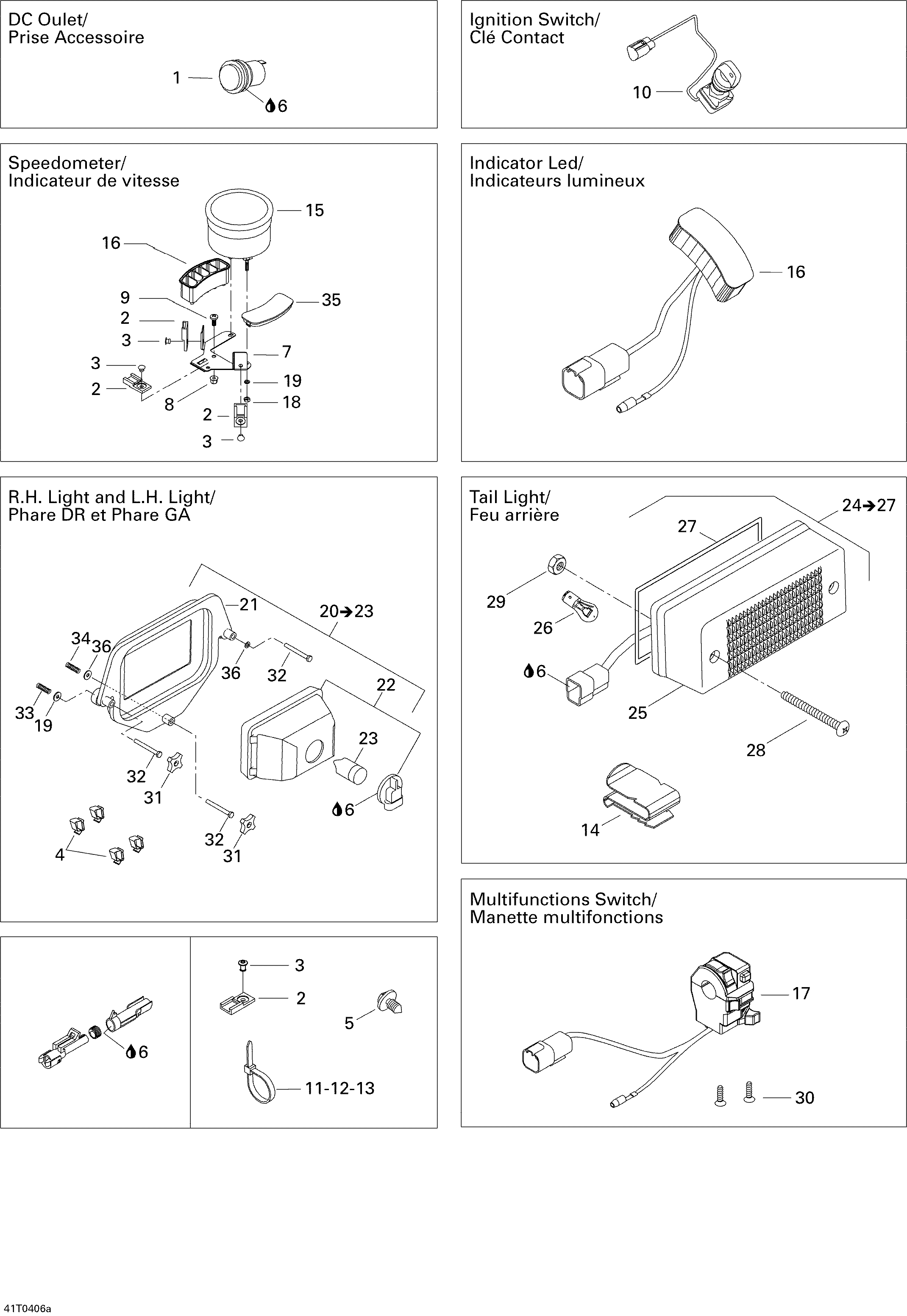

10- Electrical Accessories 1 для BRP Quest MAX - 2004
-
№АртикулНазвание
-
1861507200 Power Outlet Kit (12 Volts)Power Outlet Kit (12 Volts)
-
2270000141 ClipClip
-
3390402400 Pop-Rivet 3/16''Pop-Rivet 3/16''
-
4414227300 ClipClip
-
5293730018 Mount DartMount Dart
-
6293550004 Dielectric Grease,150 GDielectric Grease,150 G
-
7710000159 Housing Support (Black)Housing Support (Black)
-
8232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
9208651241 Pan Head Phillips Screw M5 X 12Pan Head Phillips Screw M5 X 12
-
10710000192 Ignition SwitchIgnition Switch
-
10710000137 Blank Key (''A'' Type)Blank Key (''A'' Type)
-
10710000101 Blank Key (''B'' Type)Blank Key (''B'' Type)
-
11293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
12293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
13414115200 Tie-RapTie-Rap
-
14409014200 ClipClip
-
15710000524 SpeedometerSpeedometer
-
16710000407 RH. Warning LightRH. Warning Light
-
17710000404 Multi-Function SwitchMulti-Function Switch
-
18211100051 Elastic Stop Nut 8-32Elastic Stop Nut 8-32
-
19234040600 Flat Washer 4 mmFlat Washer 4 mm
-
20710000174 Headlamp. Includes Items 20 to 23Headlamp. Includes Items 20 to 23
-
21705000283 Lamp SupportLamp Support
-
22705000284 Lamp HousingLamp Housing
-
23710000176 BulbBulb
-
24710000102 Tail Light Housing. Includes Items 24 to 27Tail Light Housing. Includes Items 24 to 27
-
25710000055 Tail Light Lens (Red)Tail Light Lens (Red)
-
26410504100 Tail Light BulbTail Light Bulb
-
27710000129 GasketGasket
-
28208656091 Pan Head Phillips Screw M5 X 60Pan Head Phillips Screw M5 X 60
-
29233251414 Hex Elastic Flanged Nut M5Hex Elastic Flanged Nut M5
-
30205053588 Socket Screw M5 X 35Socket Screw M5 X 35
-
31572106600 HandleHandle
-
32250000008 Hex Screw K40 X 40Hex Screw K40 X 40
-
33710000285 SpringSpring
-
34517168600 SpringSpring
-
35709400102 Light CoverLight Cover
-
36234042600 Flat Washer M4Flat Washer M4
