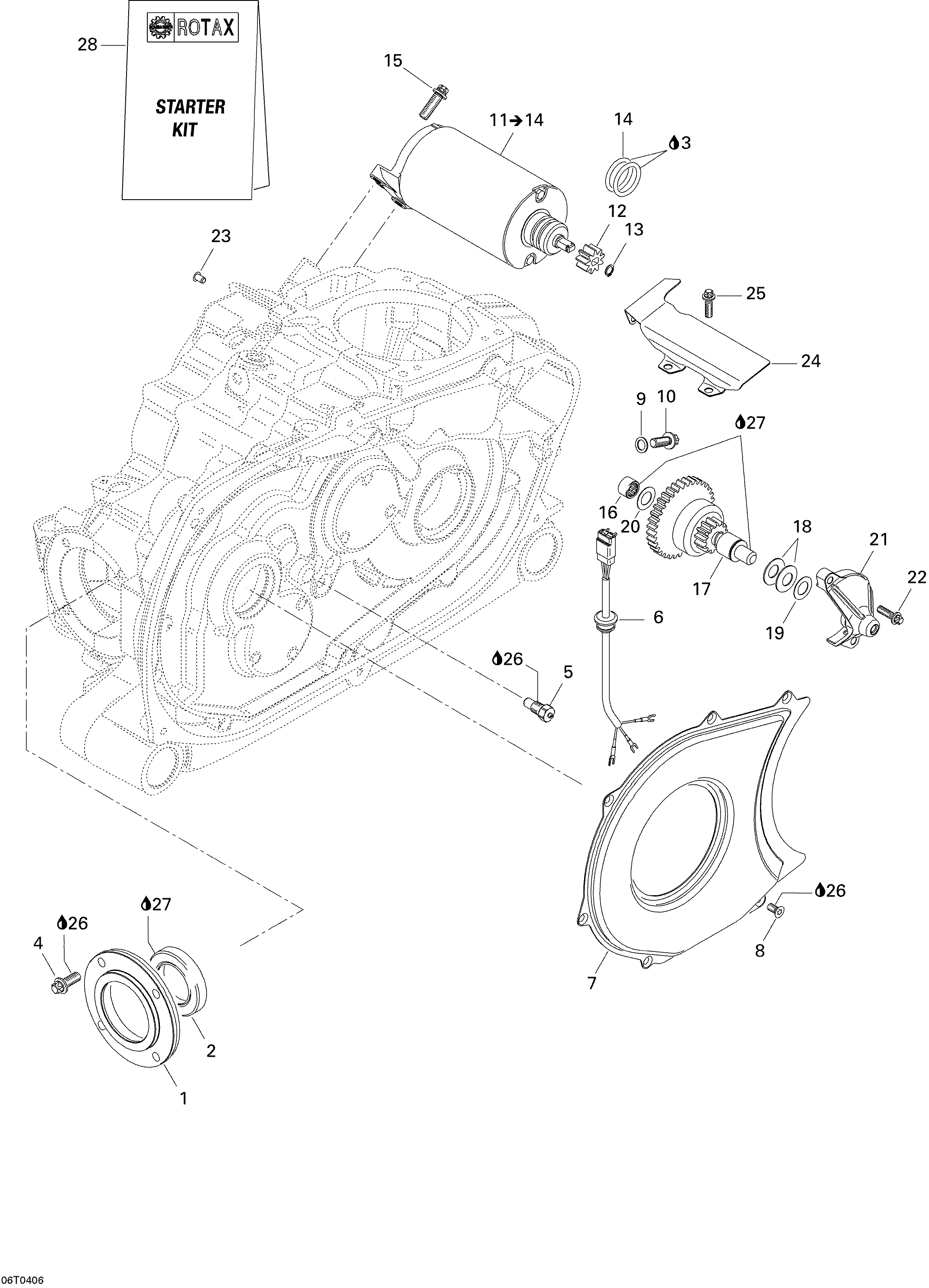

04- Electric Starter для BRP Quest MAX - 2004
-
№АртикулНазвание
-
1420610243 Bearing CoverBearing Cover
-
2420650682 Oil SealOil Seal
-
3293600039 Engine Oil 4 strokes - 5W40, 12 x 1 literEngine Oil 4 strokes - 5W40, 12 x 1 liter
-
4420440372 Torx Flanged Screw M8 x 25Torx Flanged Screw M8 x 25
-
5420241856 Contact Screw M10Contact Screw M10
-
6420265831 Wiring HarnessWiring Harness
-
7420610263 Air GuideAir Guide
-
8420241465 Torx Taptite Screw M6 x 12Torx Taptite Screw M6 x 12
-
9420950141 Sealing RingSealing Ring
-
10420440372 Torx Flanged Screw M8 x 25Torx Flanged Screw M8 x 25
-
11420888991 Electric Starter Ass'y. Includes Items 11 to 14Electric Starter Ass'y. Includes Items 11 to 14
-
12420834521 Starter Gear (9 teeth)Starter Gear (9 teeth)
-
13420845600 Retaining RingRetaining Ring
-
14420250300 O-RingO-Ring
-
15420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
16420232480 Needle BushingNeedle Bushing
-
17703500286 Starter DriveStarter Drive
-
18420238300 Spring WasherSpring Washer
-
19420827261 Thrust WasherThrust Washer
-
20420227450 Thrust WasherThrust Washer
-
21420610376 Gear CoverGear Cover
-
22420640690 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
23420860245 PlugPlug
-
24420251240 Heat DeflectorHeat Deflector
-
25420440162 Torx Flanged Screw M6 x 16Torx Flanged Screw M6 x 16
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27293550030 Grease, Super LubeGrease, Super Lube
-
28420664710 Carbon Brush SetCarbon Brush Set
