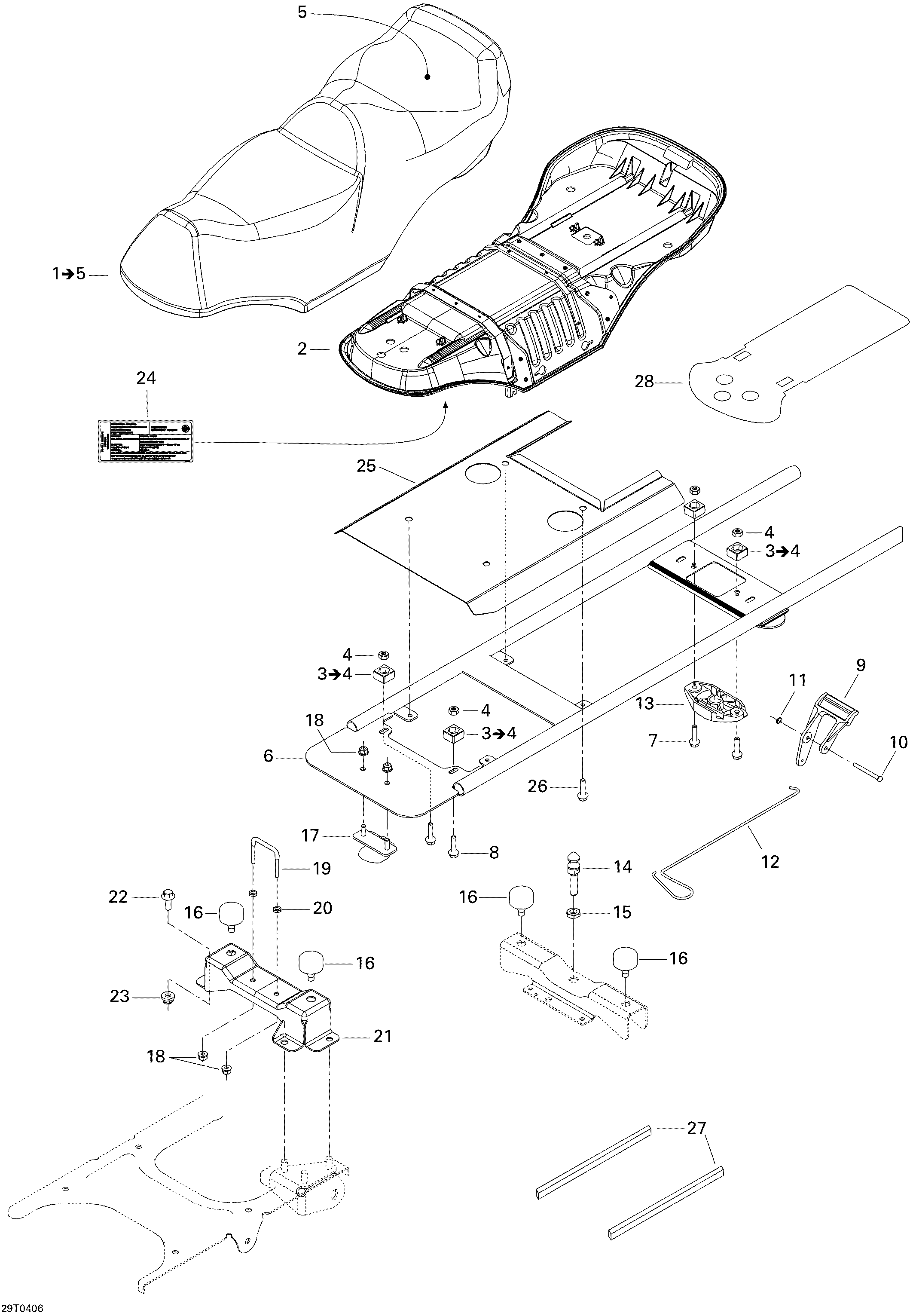

09- Seat для BRP Quest MAX - 2004
-
№АртикулНазвание
-
1708000256 Seat Assy.. Includes Items 1 to 5Seat Assy.. Includes Items 1 to 5
-
3708000046 Nut Housing Ass'Y M6. Includes Items 3 to 4Nut Housing Ass'Y M6. Includes Items 3 to 4
-
4232561414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
5708000293 Seat CoverSeat Cover
-
6708000354 Seat Support (Black)Seat Support (Black)
-
7207662544 Hex Flanged Screw M6 X25Hex Flanged Screw M6 X25
-
8207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
9708000010 Lever LatchLever Latch
-
10293150062 Solid Rivet 3/16 X 1-7/8Solid Rivet 3/16 X 1-7/8
-
11389804300 Push NutPush Nut
-
12708000015 SpringSpring
-
13708000034 Latch BaseLatch Base
-
14291000945 Seat StudSeat Stud
-
15232100600 Hex Jam Nut M10Hex Jam Nut M10
-
16708000006 Rubber StopperRubber Stopper
-
17291001479 Seat HookSeat Hook
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19291000468 Seat HookSeat Hook
-
20232061600 Hexagonal Nut M6Hexagonal Nut M6
-
21708000088 Seat SupportSeat Support
-
22207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
23233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
24704900627 Emission LabelEmission Label
-
25708000326 Heat ShieldHeat Shield
-
26210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
27293250008 GasketGasket
-
28708000160 Reflective SheetReflective Sheet
