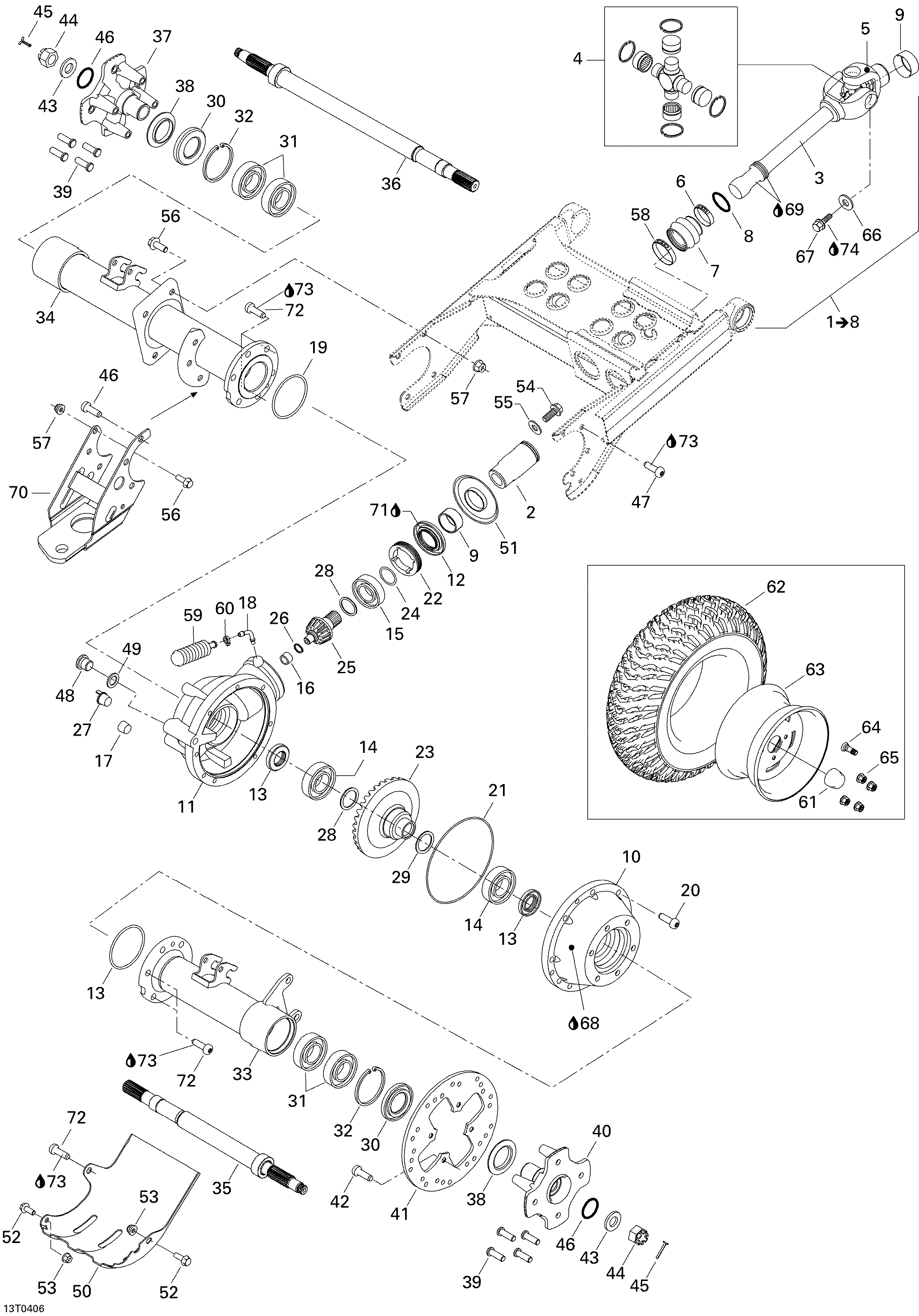

05- Drive System, Rear для BRP Quest MAX - 2004
-
№АртикулНазвание
-
2705400149 Sleeve CouplingSleeve Coupling
-
3705500403 Rear AxleRear Axle
-
4705500304 Unit Pack KitUnit Pack Kit
-
5705500371 Fix JointFix Joint
-
6705400148 CollarCollar
-
7703500255 Rubber Boot KitRubber Boot Kit
-
8705500315 Sealing RingSealing Ring
-
9705400036 Wear RingWear Ring
-
10705500175 Differential CapDifferential Cap
-
11705500515 Differential CarrierDifferential Carrier
-
12705500248 Oil SealOil Seal
-
13705500255 Oil SealOil Seal
-
14705500259 Ball BearingBall Bearing
-
15705500260 Ball BearingBall Bearing
-
16705500261 Needle BearingNeedle Bearing
-
17705500245 Drain LugDrain Lug
-
18705500262 Vent ValveVent Valve
-
19705500263 O-RingO-Ring
-
20705500264 ScrewScrew
-
21705500265 SealSeal
-
22705500266 NutNut
-
23705500223 Crown GearCrown Gear
-
24705500267 O-RingO-Ring
-
25705500268 Gear (10 Teeth)Gear (10 Teeth)
-
26705500269 Retaining RingRetaining Ring
-
27705500516 PlugPlug
-
28703500049 Pinion Gear Shim KitPinion Gear Shim Kit
-
28705500075 Pinion Gear ShimPinion Gear Shim
-
29703500050 Differential Shim KitDifferential Shim Kit
-
29705500079 Differential Shim KitDifferential Shim Kit
-
30705500099 Oil SealOil Seal
-
31705500251 Ball BearingBall Bearing
-
32705500249 Retaining RingRetaining Ring
-
33705500250 RH Axle TubeRH Axle Tube
-
34705500182 LH Axle TubeLH Axle Tube
-
35705500183 RH Axle Ass'YRH Axle Ass'Y
-
36705500184 LH Axle Ass'YLH Axle Ass'Y
-
37705500254 Wheel Hub Ass'YWheel Hub Ass'Y
-
38705500100 Wear RingWear Ring
-
39250300020 Wheel StudWheel Stud
-
40705500451 LH Wheel Rear HubLH Wheel Rear Hub
-
41705600343 Brake DiscBrake Disc
-
42235381646 Countersunk Torx Screw M8 X 16 (Scotch Grip)Countersunk Torx Screw M8 X 16 (Scotch Grip)
-
43250200019 WasherWasher
-
44232291413 Hex Castellated Nut M18Hex Castellated Nut M18
-
45250400016 Cotter PinCotter Pin
-
46705500271 O-RingO-Ring
-
47250000085 Axle Tube ScrewAxle Tube Screw
-
48705500504 Fill Level PlugFill Level Plug
-
49705500506 Copper WasherCopper Washer
-
50705500565 Diff. ProtectorDiff. Protector
-
51705500214 Joint ProtectorJoint Protector
-
52207681644 Hex Flanged Screw M8 X 16Hex Flanged Screw M8 X 16
-
53233181414 Hex Flanged Nut M8Hex Flanged Nut M8
-
54250000060 Hex Flanged Screw M10 X 16 (Scotch Grip)Hex Flanged Screw M10 X 16 (Scotch Grip)
-
55250200014 Flat WasherFlat Washer
-
56207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
57233201414 Hex Elastic Flanged Nut M10Hex Elastic Flanged Nut M10
-
58293650138 Oetiker ClampOetiker Clamp
-
59705400066 Rubber BellowRubber Bellow
-
60293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
61705400012 Wheel CapWheel Cap
-
62705500385 Rear TireRear Tire
-
63705500547 Rear RimRear Rim
-
63705500555 Rear RimRear Rim
-
64705400193 Rim ValveRim Valve
-
65250100042 Wheel NutWheel Nut
-
66211200041 WasherWasher
-
67207681686 Hex Flanged Screw M8 X 16Hex Flanged Screw M8 X 16
-
68293600011 Redline Pump Oil, 75W90, 12 X 6 OzRedline Pump Oil, 75W90, 12 X 6 Oz
-
69293550019 Grease, 60 GGrease, 60 G
-
70705500244 Trailer HookTrailer Hook
-
71293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
72250000085 Axle Tube ScrewAxle Tube Screw
-
73413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
74293800005 Loctite 271, 10 mlLoctite 271, 10 ml
