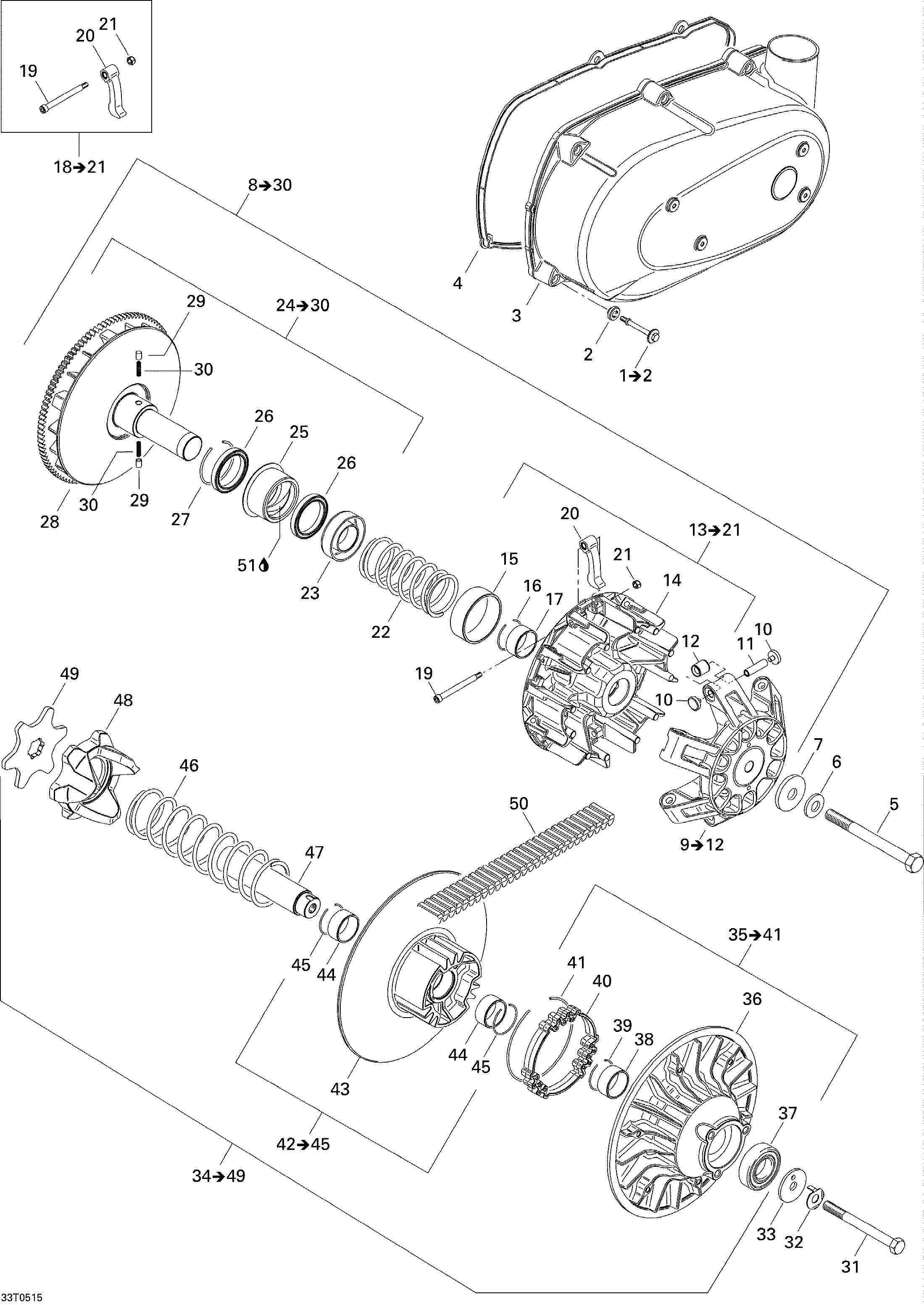

01- Belt and Engine Pulley System для BRP Traxter Max CVT 650 - 2005
-
№АртикулНазвание
-
1420240906 Distance Screw M6 X 47.9. Includes 1 to 2Distance Screw M6 X 47.9. Includes 1 to 2
-
2420260050 Rubber BushingRubber Bushing
-
3420610350 Transmission CoverTransmission Cover
-
4420630110 GasketGasket
-
5420641852 Hex. Screw M12 X 135Hex. Screw M12 X 135
-
6420627765 Spring WasherSpring Washer
-
7420627920 Thrust WasherThrust Washer
-
8420684340 Cvt Drive Pulley Ass'y. Includes 8 to 30Cvt Drive Pulley Ass'y. Includes 8 to 30
-
9420280155 Governor Cup Ass'Y. Includes 9 to 12Governor Cup Ass'Y. Includes 9 to 12
-
10420281290 Shoe Slider SetShoe Slider Set
-
11420233890 Roller SleeveRoller Sleeve
-
12420229585 RollerRoller
-
13420280147 Outer Half Ass'y. Includes 13 to 21Outer Half Ass'y. Includes 13 to 21
-
18420248408 Centrifugal Lever Kit. Includes 18 to 21Centrifugal Lever Kit. Includes 18 to 21
-
21420942025 Nut M5Nut M5
-
22420238164 Compression SpringCompression Spring
-
23420627573 Spring SeatSpring Seat
-
24420281395 Inner Half Ass'y. Includes 24 to 30Inner Half Ass'y. Includes 24 to 30
-
25420257195 Drive Pulley ClutchDrive Pulley Clutch
-
26420632371 Ball Bearing 6808Ball Bearing 6808
-
27420245950 Retaining RingRetaining Ring
-
29420229576 Spring SleeveSpring Sleeve
-
30420239133 SpringSpring
-
31420941906 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
32420245920 Tab WasherTab Washer
-
33420627591 Thrust WasherThrust Washer
-
34420684350 Cvt Driven Pulley Ass'y. Includes 34 to 49Cvt Driven Pulley Ass'y. Includes 34 to 49
-
35420280176 Outer Half Ass'y. Includes 35 to 41Outer Half Ass'y. Includes 35 to 41
-
37420932426 Ball Bearing 6205Ball Bearing 6205
-
40420660120 Torque GearTorque Gear
-
41420245910 Retaining RingRetaining Ring
-
42420280186 Driven Pulley Inner Half Ass'y. Includes 42 to 45Driven Pulley Inner Half Ass'y. Includes 42 to 45
-
46420238171 Compression SpringCompression Spring
-
47420220911 Driven ShaftDriven Shaft
-
48420280191 Driven Pulley CamDriven Pulley Cam
-
49420627582 Cam PlateCam Plate
-
50715900023 V-beltV-belt
-
51293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
