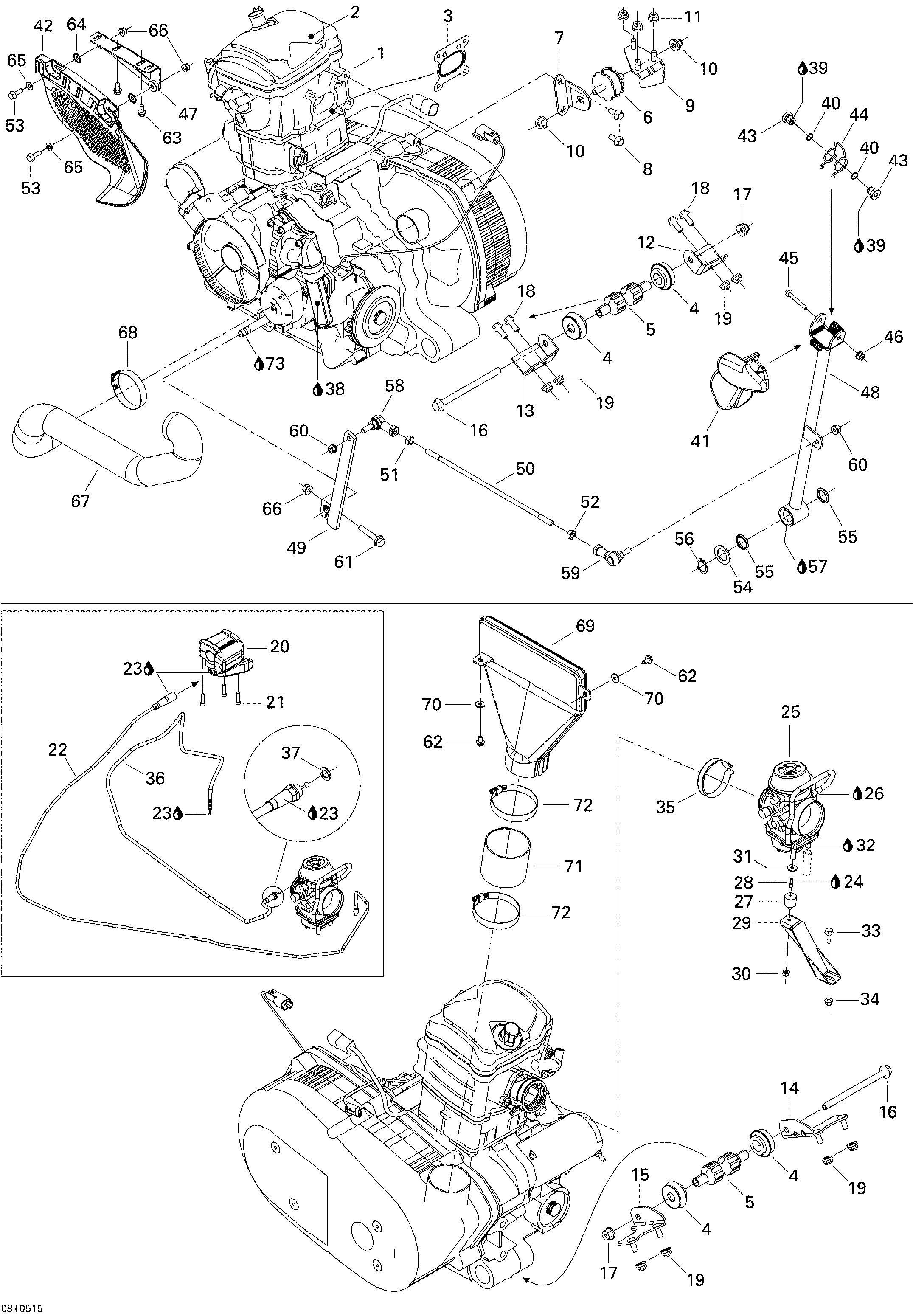

01- Engine And Engine Support для BRP Traxter Max CVT 650 - 2005
-
№АртикулНазвание
-
1707000358 Rotax 4 Stroke Engine «610»Rotax 4 Stroke Engine «610»
-
2420660201 Valve CoverValve Cover
-
3420950680 GasketGasket
-
4707000094 Anti-Vibration MountAnti-Vibration Mount
-
5707000019 Engine Support BushingEngine Support Bushing
-
6707000174 Rubber MountRubber Mount
-
7707000159 Engine Support, BlackEngine Support, Black
-
8207581646 Hex Flanged Screw M8 X 16, Scotch GripHex Flanged Screw M8 X 16, Scotch Grip
-
9707000161 Engine BracketEngine Bracket
-
10233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
11233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
12707000132 LH Front Engine Bracket, BlackLH Front Engine Bracket, Black
-
13707000101 RH Front Engine Bracket, BlackRH Front Engine Bracket, Black
-
14707000207 RH Rear Engine BracketRH Rear Engine Bracket
-
15707000210 LH. Rear Engine BracketLH. Rear Engine Bracket
-
16230604044 Hex Flanged Screw M10 X 140Hex Flanged Screw M10 X 140
-
17233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
18207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
19233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
20707000370 Throttle HandleThrottle Handle
-
21205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
22707000311 Throttle CableThrottle Cable
-
23293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25707200186 Carburator Bsr42-8Carburator Bsr42-8
-
26413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
-
27707000248 Anti-vibration MountAnti-vibration Mount
-
28707000250 Threaded InsertThreaded Insert
-
29707000252 Caburetor SupportCaburetor Support
-
30212000006 Hex Elastic Stop NutHex Elastic Stop Nut
-
31391301600 WasherWasher
-
32413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
-
33207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
34233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
35293650157 Gemi ClampGemi Clamp
-
36707000334 Choke CableChoke Cable
-
37293300075 O-RingO-Ring
-
39293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
40293300081 O-ringO-ring
-
41705500282 Shifter HandleShifter Handle
-
42707000139 Transmission GuideTransmission Guide
-
43707000205 Pivot SleevePivot Sleeve
-
44705500283 Lever SpringLever Spring
-
45207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
46233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
47707000297 Guide Support, BlackGuide Support, Black
-
48707000335 Lower Lever, BlackLower Lever, Black
-
49707000338 Lower Lever, BlackLower Lever, Black
-
50707000343 Threaded RodThreaded Rod
-
51232061414 Hex Nut M6Hex Nut M6
-
52232066414 LH Hex Nut M6LH Hex Nut M6
-
53207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
54503107800 WasherWasher
-
55293300053 O-RingO-Ring
-
56293370012 CirclipCirclip
-
57293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
58707000142 RH Ball JointRH Ball Joint
-
59707000143 LH Ball JointLH Ball Joint
-
60233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
61207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
62210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
63210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
64250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
65391302000 Flat WasherFlat Washer
-
66233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
67707000332 Air IntakeAir Intake
-
68293650023 Tridon ClampTridon Clamp
-
69707000153 ExhaustExhaust
-
70224061201 Flat WasherFlat Washer
-
71707000154 Flexible AdaptorFlexible Adaptor
-
72293650064 Tridon ClampTridon Clamp
-
73293800005 Loctite 271, 10 mlLoctite 271, 10 ml
