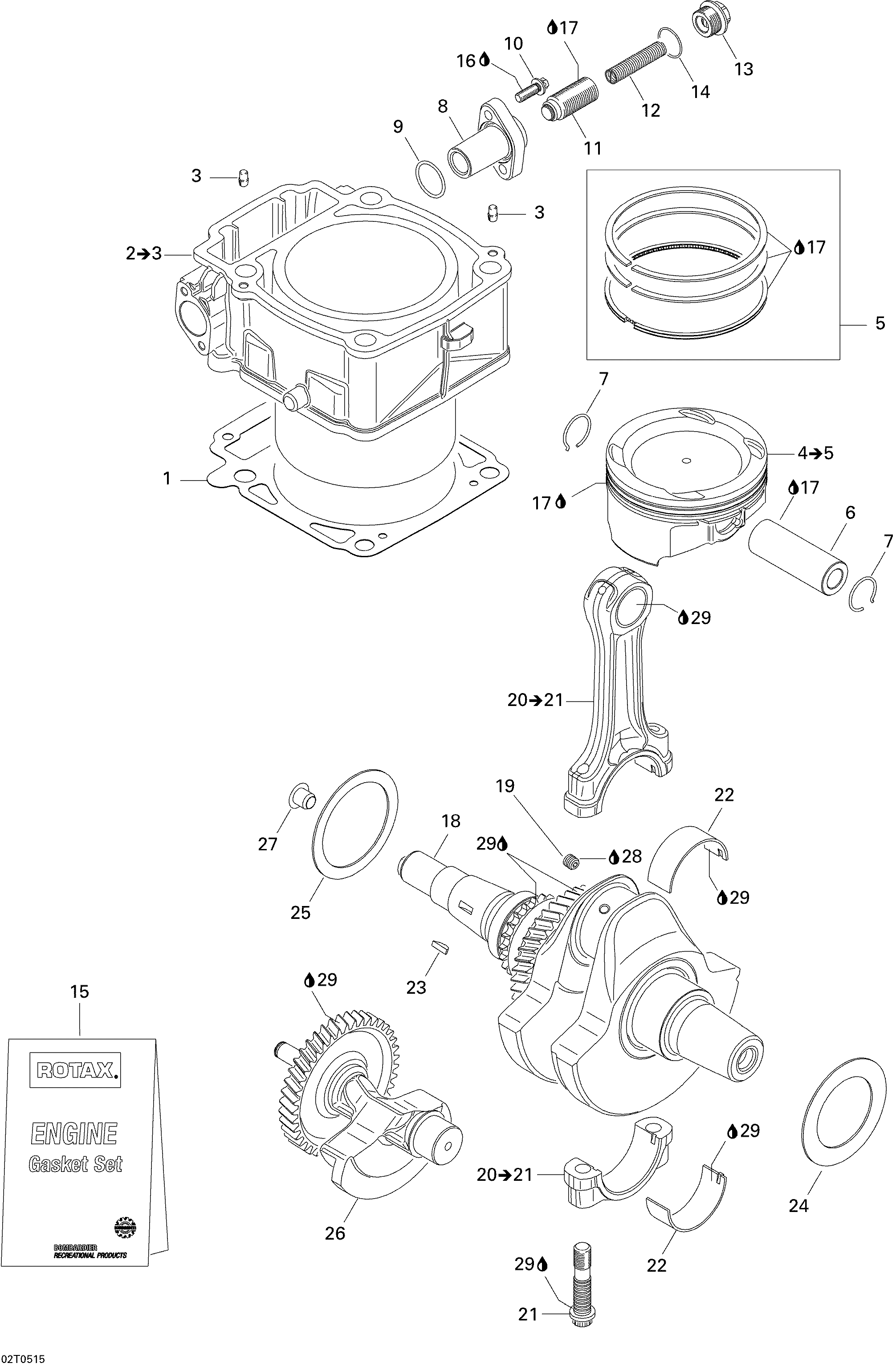

01- Crankshaft, Piston And Cylinder для BRP Traxter Max CVT 650 - 2005
-
№АртикулНазвание
-
1420630080 GasketGasket
-
2420923947 Cylinder Ass'y. Includes 2 to 3Cylinder Ass'y. Includes 2 to 3
-
3420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
4420890085 Piston Ass'y, 99.96 mm. Up to engine M6059518, Includes 4 to 5Piston Ass'y, 99.96 mm. Up to engine M6059518, Includes 4 to 5
-
4420890082 Piston Ass'y, 99.96 mm. Starting from engine M6059519, Includes 4 to 5Piston Ass'y, 99.96 mm. Starting from engine M6059519, Includes 4 to 5
-
4420888868 Piston Ass'y, Oversize, 100.21 mm. Includes 4 to 5Piston Ass'y, Oversize, 100.21 mm. Includes 4 to 5
-
5420890380 Piston Ring Set. Up to engine M6059518Piston Ring Set. Up to engine M6059518
-
5420891124 Piston Ring Set. Starting from engine M6059519Piston Ring Set. Starting from engine M6059519
-
5420888865 Piston Ring Set, OversizePiston Ring Set, Oversize
-
6420216250 Piston PinPiston Pin
-
7420845580 CirclipCirclip
-
8420236510 Chain Tensioner HousingChain Tensioner Housing
-
9420430370 O-RingO-Ring
-
10420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
11420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
12420238120 SpringSpring
-
13420641150 Plug ScrewPlug Screw
-
14420250890 O-RingO-Ring
-
15420684120 Engine Gasket SetEngine Gasket Set
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
18420296644 Crankshaft Ass'yCrankshaft Ass'y
-
20420917525 Connecting Rod. Includes 20 to 21Connecting Rod. Includes 20 to 21
-
21420640990 Connecting Rod ScrewConnecting Rod Screw
-
22420933520 Half-BearingHalf-Bearing
-
23420246570 Woodruff KeyWoodruff Key
-
24420627362 ShimShim
-
25420627502 ShimShim
-
26420220785 Balancing ShaftBalancing Shaft
-
27420660300 PlugPlug
-
28413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
29293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
