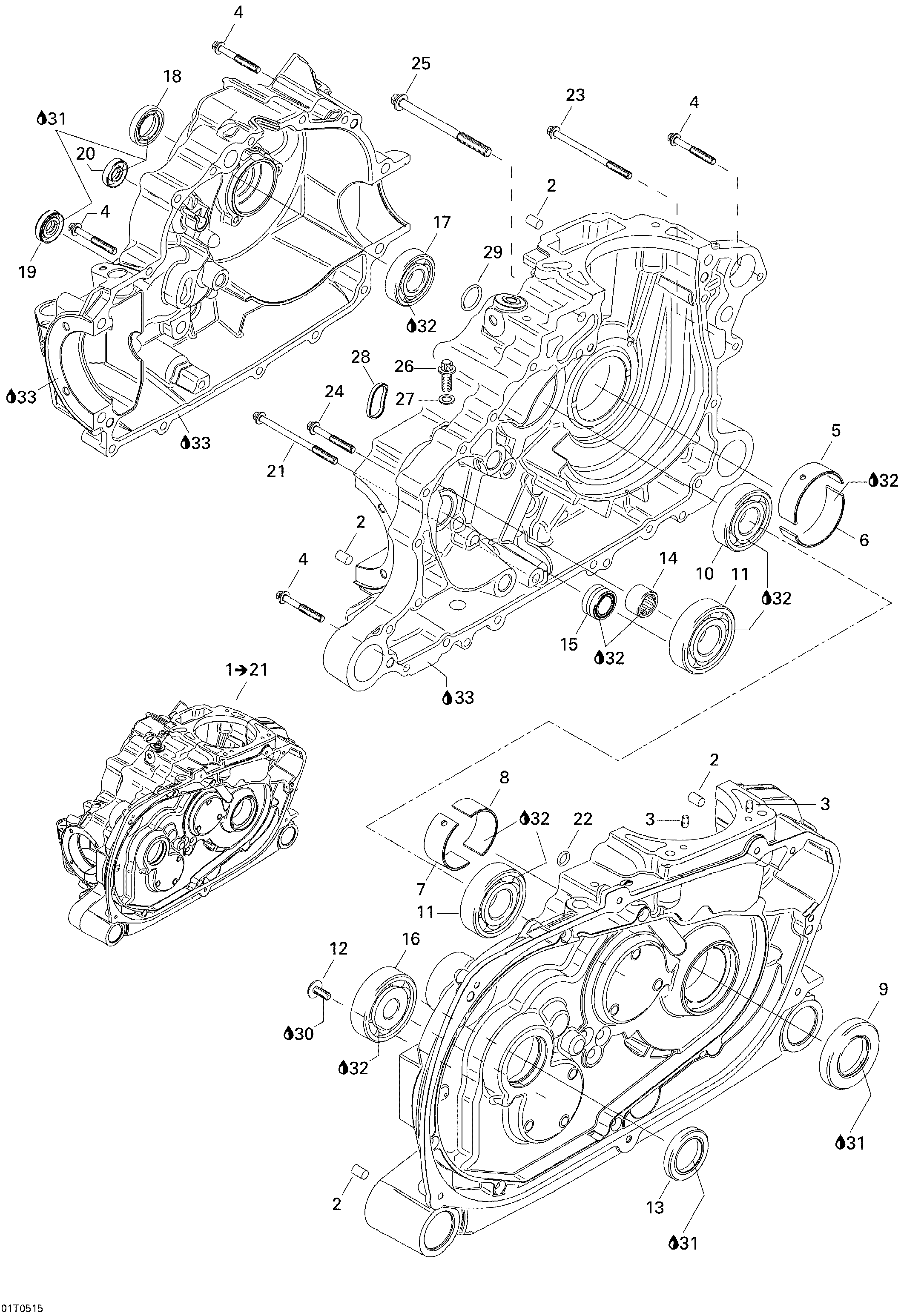

01- Crankcase для BRP Traxter Max CVT 650 - 2005
-
№АртикулНазвание
-
1420296652 Crankcase Ass'y. Includes 1 to 21Crankcase Ass'y. Includes 1 to 21
-
2420632010 Pin M8 X 12Pin M8 X 12
-
3420929650 Drive Pin 5 X 10 Ass'yDrive Pin 5 X 10 Ass'y
-
4420440322 Torx Screw M6 X 45Torx Screw M6 X 45
-
5420933492 Bearing SleeveBearing Sleeve
-
6420933495 Bearing SleeveBearing Sleeve
-
7420233740 Bearing SleeveBearing Sleeve
-
8420233745 Bearing SleeveBearing Sleeve
-
9420630152 Oil SealOil Seal
-
10420632200 Ball Bearing 63/22Ball Bearing 63/22
-
11420932825 Ball Bearing 6305Ball Bearing 6305
-
12420241526 Torx Screw M6 X 16Torx Screw M6 X 16
-
13420950087 Oil SealOil Seal
-
14420832240 Needle Bushing 18 X 24 X 16Needle Bushing 18 X 24 X 16
-
15420232085 Needle Bushing Nki 15/16Needle Bushing Nki 15/16
-
16420632290 Ball Bearing 6403Ball Bearing 6403
-
17420932432 Ball BearingBall Bearing
-
18420930392 Oil SealOil Seal
-
19420650310 Oil SealOil Seal
-
20420250450 Oil SealOil Seal
-
21420440612 Flanged Torx Screw M6 X 105Flanged Torx Screw M6 X 105
-
22420850902 O-ringO-ring
-
23420440342 Flanged Torx Screw M8 X 85Flanged Torx Screw M8 X 85
-
24420440322 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
25420440412 Flanged Torx Screw M8 X 90Flanged Torx Screw M8 X 90
-
26420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
27420950141 Sealing RingSealing Ring
-
28420630180 GasketGasket
-
29420950180 O-ringO-ring
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293550030 Grease, Super LubeGrease, Super Lube
-
32293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
33293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
