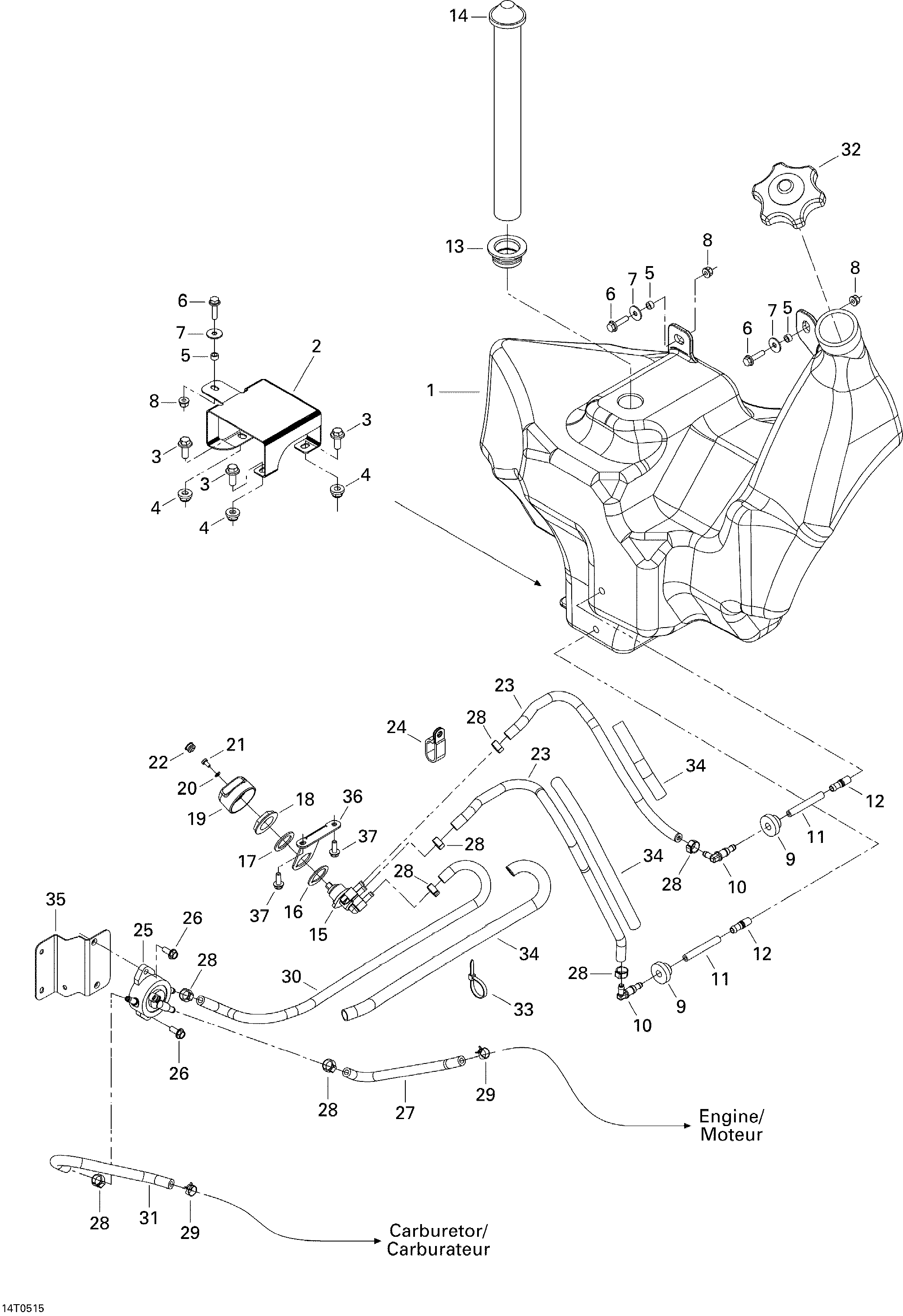

02- Fuel Tank для BRP Traxter Max CVT 650 - 2005
-
№АртикулНазвание
-
1709000035 Fuel TankFuel Tank
-
2709000039 Fuel Tank Support, BlackFuel Tank Support, Black
-
3207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
4233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
5293900029 BushingBushing
-
6207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
7224061201 Flat WasherFlat Washer
-
8233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
9570045500 GrommetGrommet
-
10414580600 Elbow Male ConnectorElbow Male Connector
-
11415080200 Polyurethane HosePolyurethane Hose
-
12414865700 Fuel FilterFuel Filter
-
13293720058 GrommetGrommet
-
14709000078 Fuel GaugeFuel Gauge
-
15275500098 Fuel ValveFuel Valve
-
16293250004 GasketGasket
-
17250200015 WasherWasher
-
18212100009 Hex Plastic NutHex Plastic Nut
-
19275500263 Fuel Valve Knob, BlackFuel Valve Knob, Black
-
20234040600 Flat Washer 4 mmFlat Washer 4 mm
-
21208640860 Pan Head Phillips Screw M4 X 8Pan Head Phillips Screw M4 X 8
-
22275500241 Fuel Valve Cap Plug, BlackFuel Valve Cap Plug, Black
-
23415079800 Hose 1/4''Hose 1/4''
-
24709000057 Open ClampOpen Clamp
-
25709000103 Gas PumpGas Pump
-
26210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
27709000047 Formed HoseFormed Hose
-
28293650042 Oetiker ClampOetiker Clamp
-
29414415200 Universal Spring ClampUniversal Spring Clamp
-
30415079800 Hose 1/4''Hose 1/4''
-
31709000104 Gas HoseGas Hose
-
32709000059 Fuel CapFuel Cap
-
33414115200 Tie-RapTie-Rap
-
33293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
34409901800 TubingTubing
-
35709000111 Support Pump, BlackSupport Pump, Black
-
36709000070 Valve Support, BlackValve Support, Black
-
37210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
