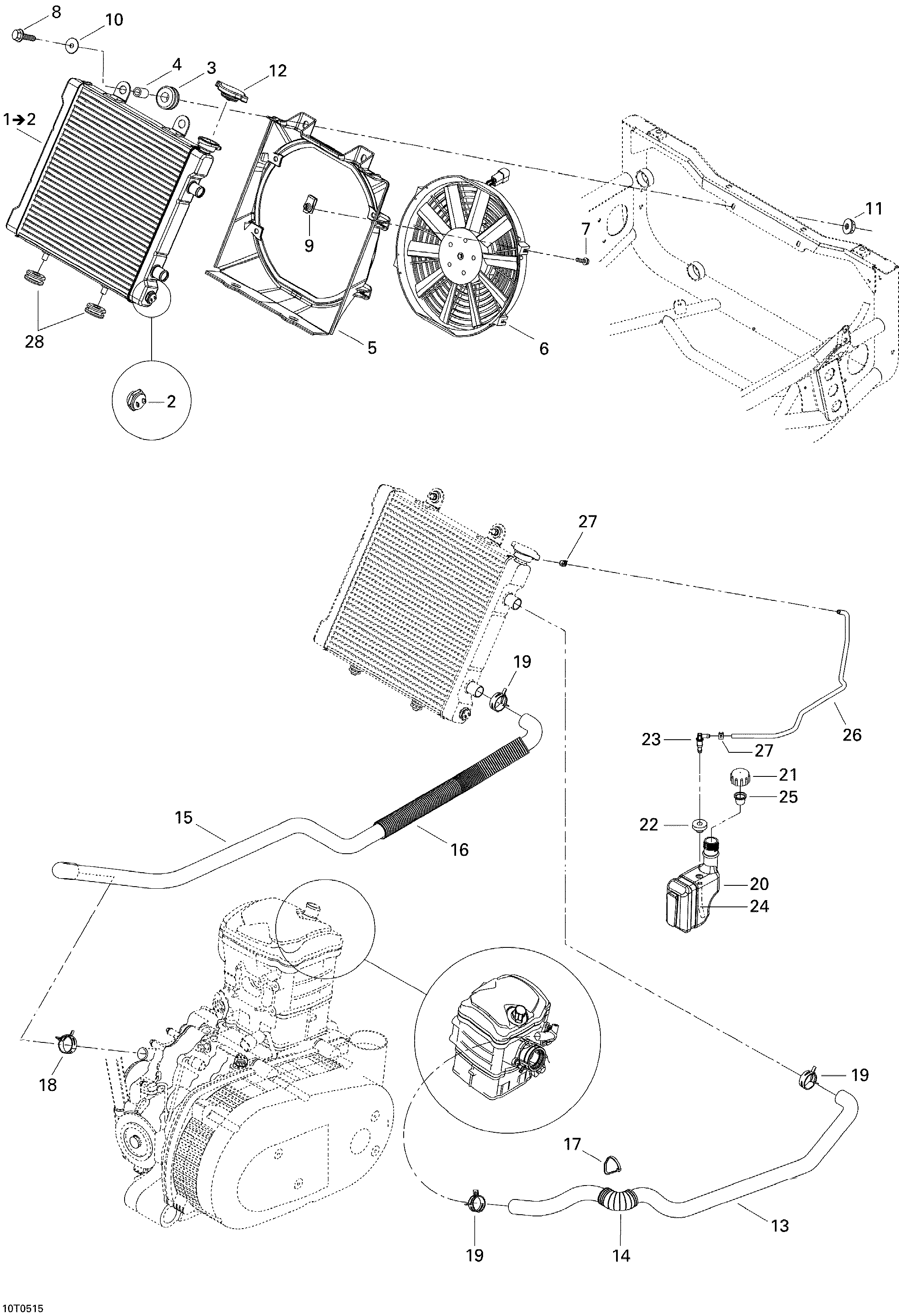

01- Cooling System для BRP Traxter Max CVT 650 - 2005
-
№АртикулНазвание
-
1709200109 Radiator Ass'Y. Includes 1 to 2Radiator Ass'Y. Includes 1 to 2
-
2709200089 Temperature SensorTemperature Sensor
-
3293720053 GrommetGrommet
-
4293900019 BushingBushing
-
5709200111 Outer ShroudOuter Shroud
-
6709200112 Fan Ass'YFan Ass'Y
-
7207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
8207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10391302000 Flat WasherFlat Washer
-
11233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
12709200033 Pressure CapPressure Cap
-
13709200047 Radiator Inlet HoseRadiator Inlet Hose
-
14709200031 Protection ShieldProtection Shield
-
15709200048 Radiator Out HoseRadiator Out Hose
-
16709200032 Protection ShieldProtection Shield
-
17414115200 Tie-RapTie-Rap
-
18293650108 Norma Spring ClampNorma Spring Clamp
-
19293650109 Norma Spring ClampNorma Spring Clamp
-
20709200099 Coolant TankCoolant Tank
-
21709200009 Tank CapTank Cap
-
22570135100 GrommetGrommet
-
23414580600 Elbow Male ConnectorElbow Male Connector
-
24415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
25709200034 Protection CapProtection Cap
-
26415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
27414554800 Universal Spring ClampUniversal Spring Clamp
-
28709200115 BushingBushing
